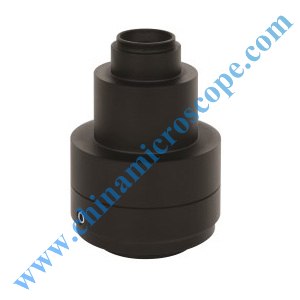

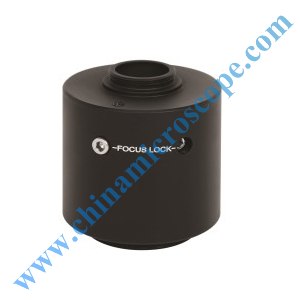

Fit to the Olympus trinocular microscope phototube/head/port (have standard 35mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4mm or 1 inch diameter with 32 threads per inch);

With different built-in reduction lens(1X, 0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4”inch CCD or CMOS sensor chips);

Can be installed in UIS trinocular tube such as : BX series,BX2 series,CX series, CX2 series, MX series;

Build of material: anodized aluminum;

Telecentric optics with low light deficiency;

Parfocal with different microscope objective lenses;

Diffraction limited MTF;

Aperture totally coupled with UIS microscope objective’s exit pupil;

Specifications
