S3345 Fully Automatic Microtome

S3345 Fully Automatic Microtome

Technical Date:

Slice thickness range :   0.5μm～100μm(3~5um is the best slicing effect)

Specimen retraction:       10～150μm(Can be closed)，in 1μm increments

Section thickness setting:   0.5～5μm，in 0.5μm increment

5～20μm，in 1μm increments

20～60μm,in 5μm increments

60～100μm，in 10μm increments

Trimming thickness: 1～600μm

Trimming thickness setting:  1～10μm，in 1μm increment ;

10～20μm, in 2μm increments;

20～50μm，in 5μm increments;

50～100μm, in 10μm increments;

100～600μm，in 50μm increments

Specimen vertical stroke:60mm

Specimen horizontally stroke:25mm

“Max specimen size with cassette clamp (H×W):40mm×28mm

Max specimen size with C clamp (H×W):55mm×45mm

Features:

Streamlined molded housing results in attractive appearance and is easy to clean.

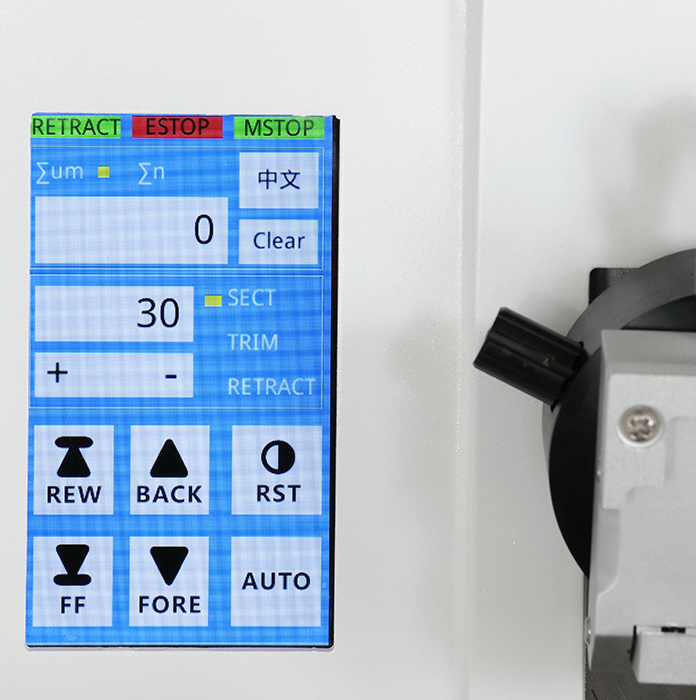

Full-automatic sectioning with adjustable speed and three sectioning modes: continuous, step and single.LED display;Electronic trim function makes it easy to switch from trim and section mode

Specimen retraction mechanism protects specimen from unintended blade damage

Section counting function counts total section pieces and total thickness.

Unit contains a precise micro motion specimen feeding system which uses a micro computer, optical signal and stepper motor to control specimen feeding resulting in more precise specimen feeding.

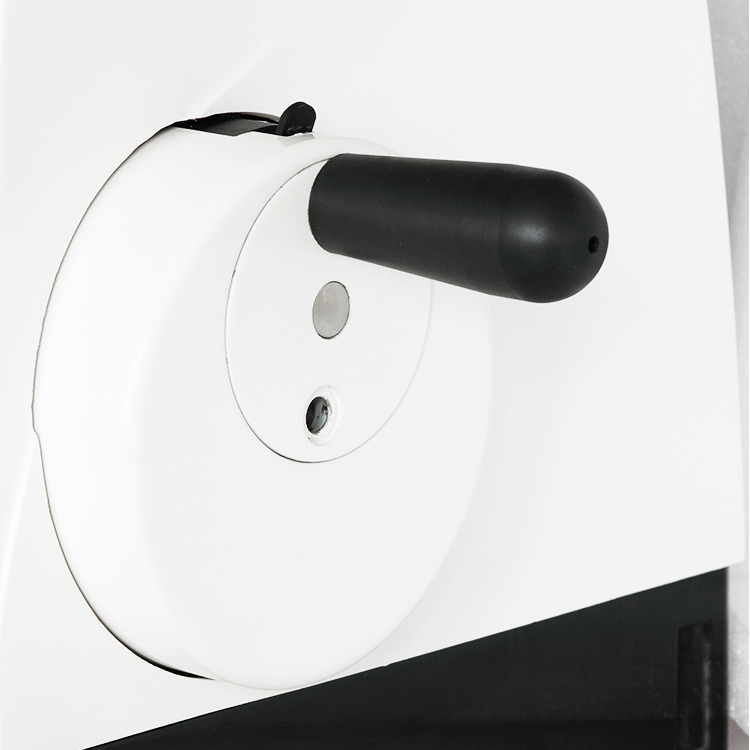

Internationally accepted slide mechanism and groove ensures the precision of specimen movement while making the unit free from lubrication and maintenance requirements; Unit contains a hand wheel force balancing system for adjusting the balancing force during sectioning, making rotation even and smooth

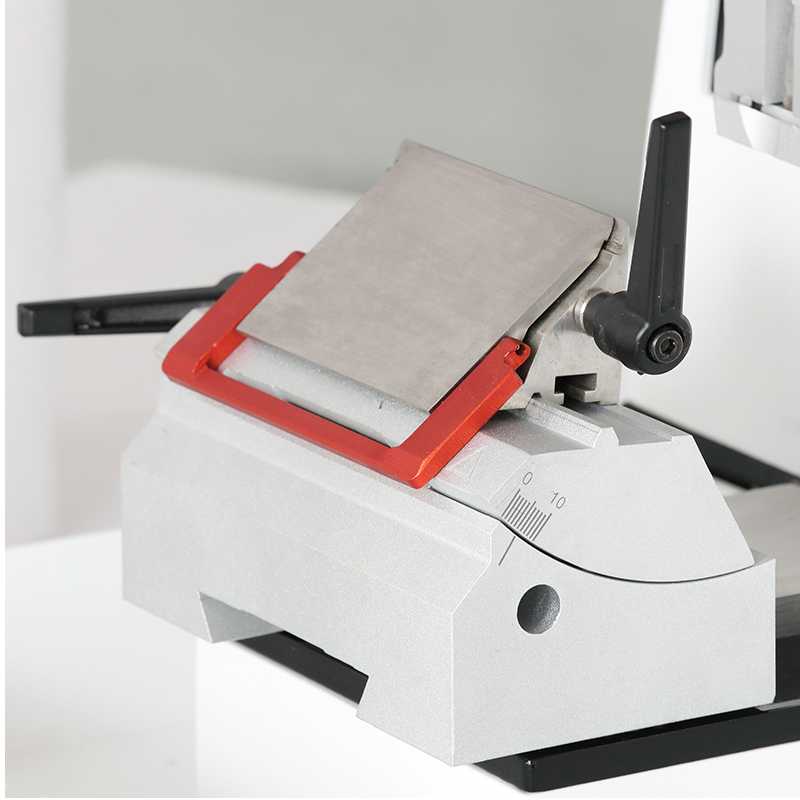

Two safety locking mechanisms on the hand wheel; one locks on the top; the other locks at any position;The disposable blade can move horizontally to avoid the dangers of unintended contact with the blade. Every blade cuts specimen into three equal parts, which ensures the entire use of blade edge

The waste tray collects sectioning debris are easily removed for cleaning

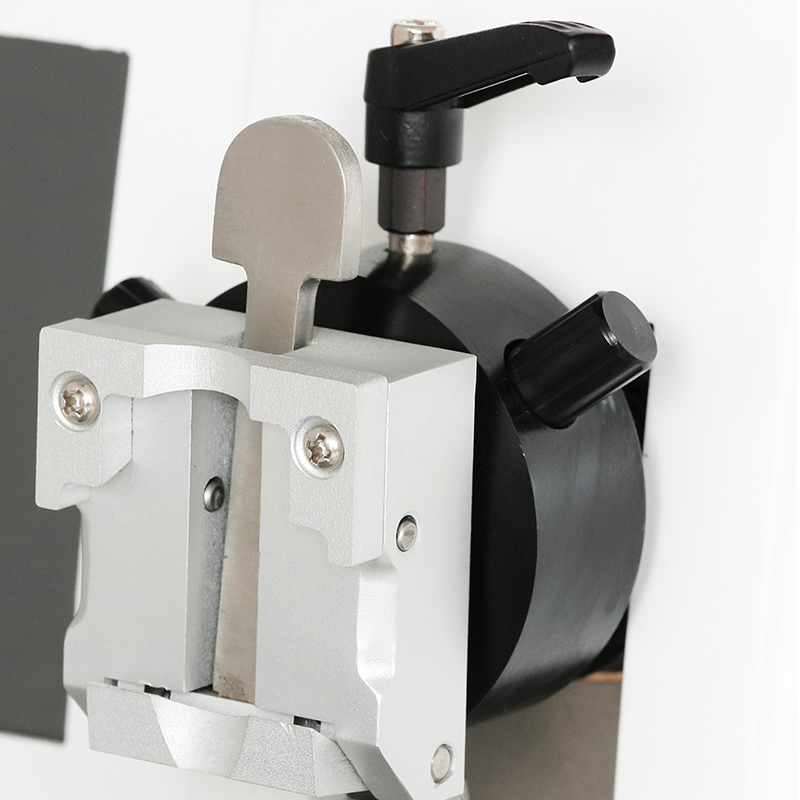

Cassette clamp and C clamp are optional;Specimen orientation on X/Y axes 8°

Alarm to warn of forward or backwards limitation;Self-diagnostic prompt.

Emergency stop and foot switch (optional)
