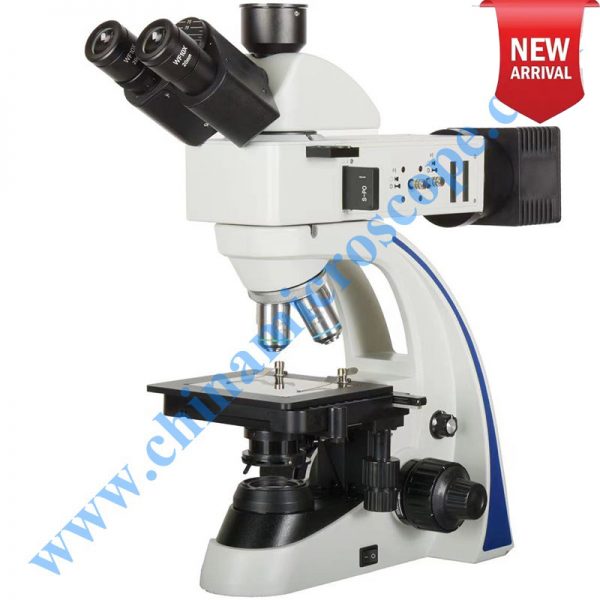

MIC-G20M metallurgical microscope

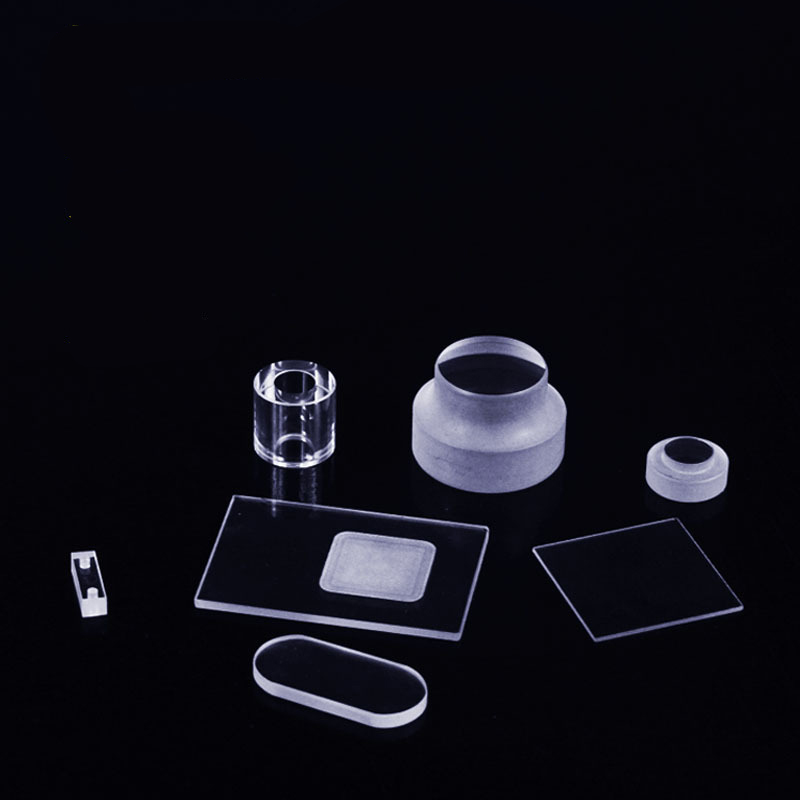

Sapphire wafer lens windows prism tube rod hole gem components

Sapphire wafer lens windows prism tube rod hole gem components

all customized

ENQUIRY!
分类： , 标签：
描述

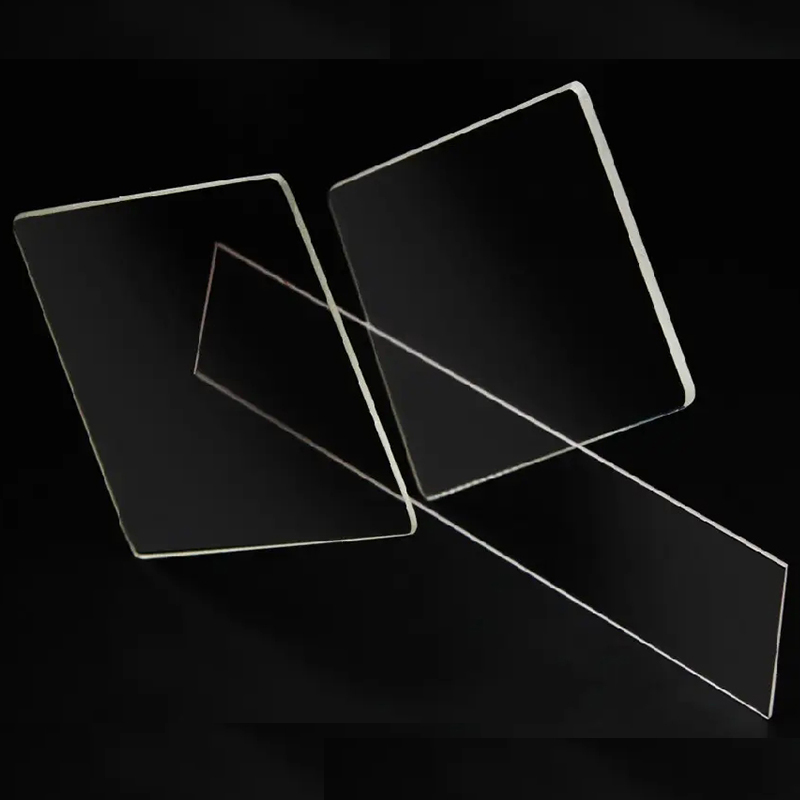

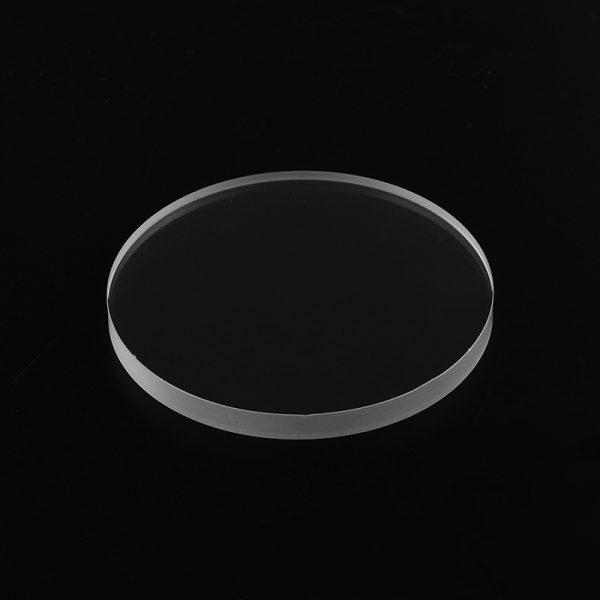

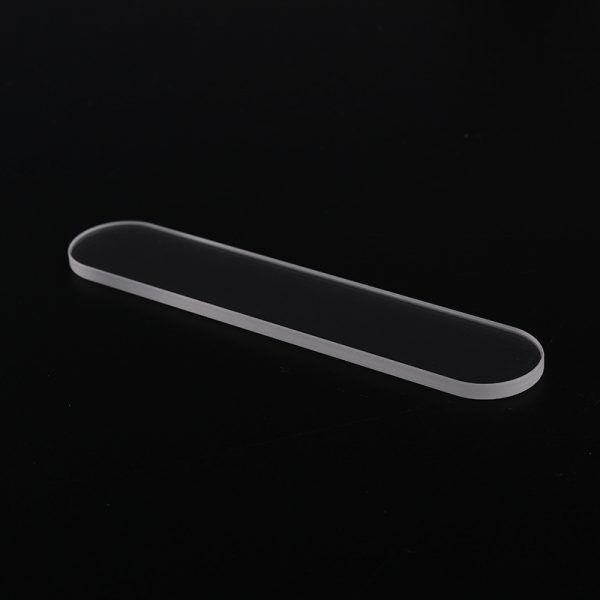

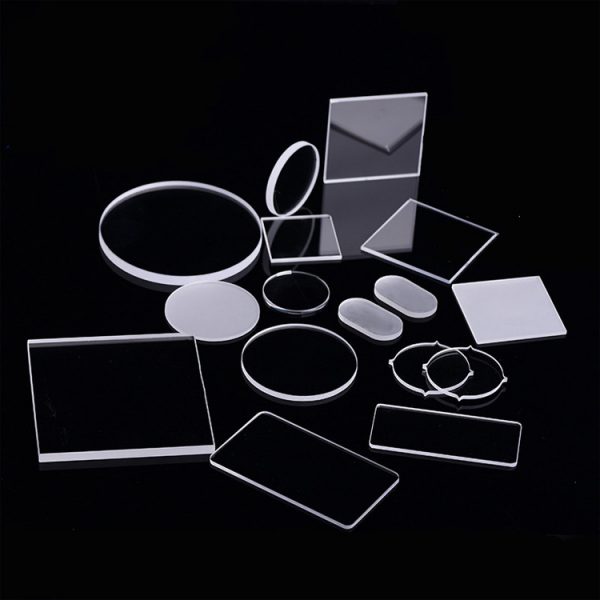

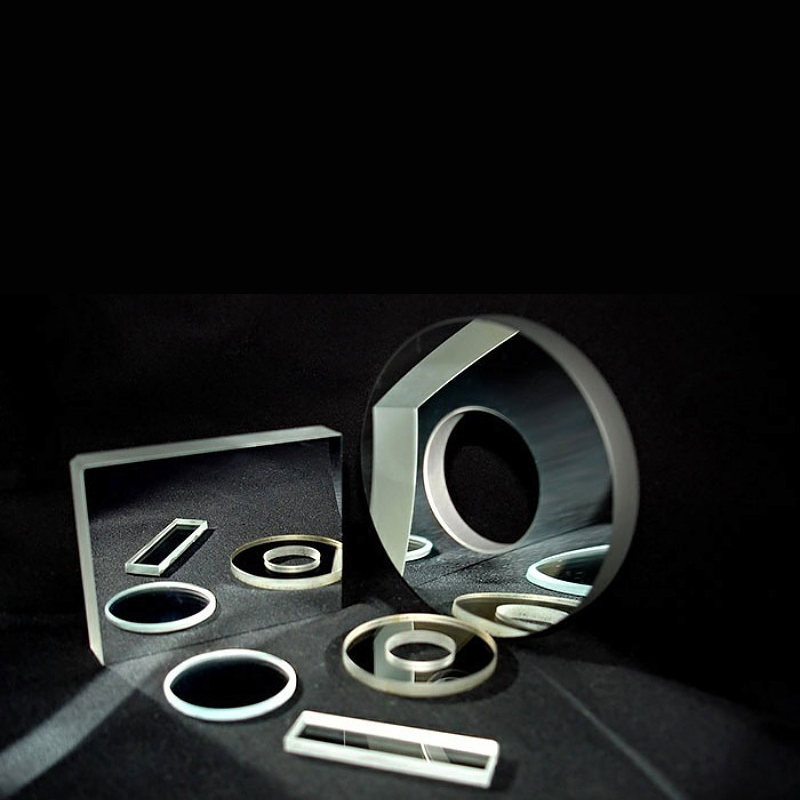

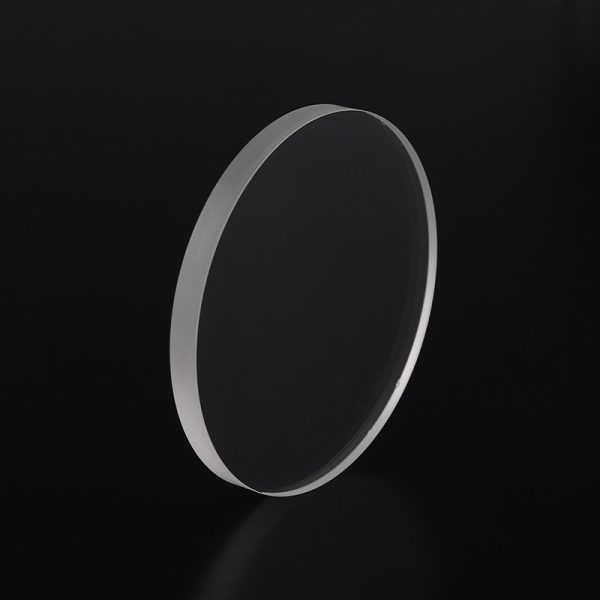

Sapphire windows

Dimensional range, limit deviation (mm)

Square window Item Length L1 Width L2 Height H
Dimension range 2 ~ 380 2 ~ 380 0.50 ~ 100
Tolerance 0.01 ~ 0.10 0.01 ~ 0.10 0.01 ~ 0.05
Rectangular window Dimension range 2 ~ 460 2 ~ 420 0.50 ~ 100
Tolerance 0.01 ~ 0.10 0.01 ~ 0.10 0.01 ~ 0.05
Circular window Item Diameter φD Thickness  H
Dimension range φ1  ~ φ400 1 ~ 100
Tolerance 0/-0.01   ~  0/-0.10 +/- 0.01
Polygon window Length L1 Width L2 Height H Edge L3
Dimension range 5~300 5~300 2 ~ 100
Tolerance ±0.10 ±0.05 ±0.02 ±0.10

Technical criteria

Item Average Precise Ultraprecise
Angle tolerance polygon ±1° ±0.5° ±0.1°
Facial contour (632.8nm) N 5λ 2λ λ/2
Irregularity degree △N 1 1/2 1/4
Surface quality MIL 80/50 40/20 20/10
Surface quality MIL circular 80/50 60/40 40/20
Surface roughness（nm） 1.5~2.5 0.5~1.5 < 0.5
Crystal orientation  deviation ≤5° ≤2° ≤0.5°
Depth of parallelism 15′~  10′ 10′~  1′ 1′ ~ 10 “
Crystal orientation C、A、M optional
Transmittance Under 632.8nm wavelength>85%

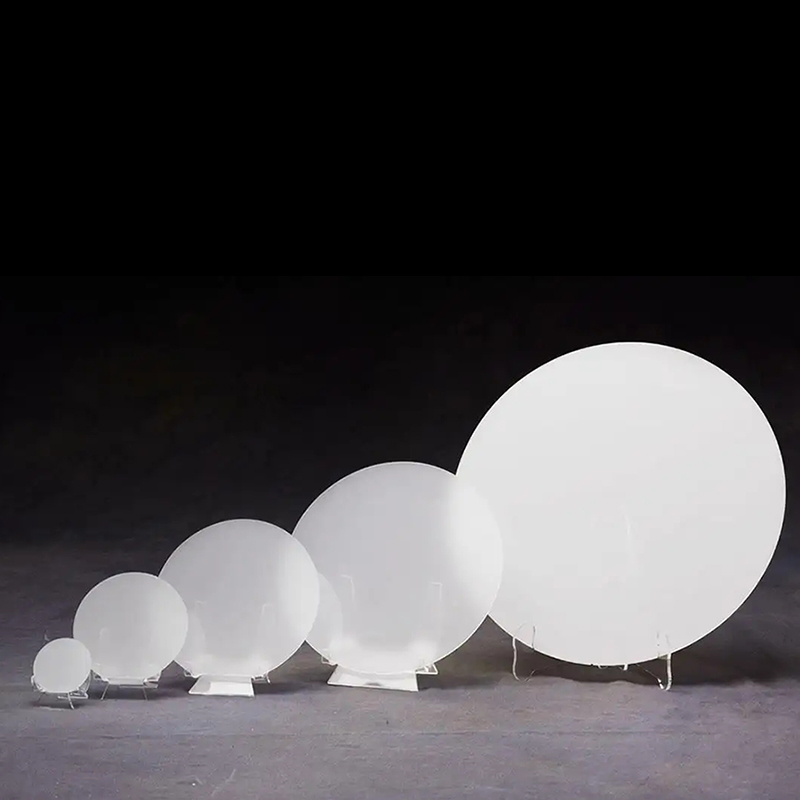

sapphire wafers

2”,4”,6”,8”,12”,14”,16”

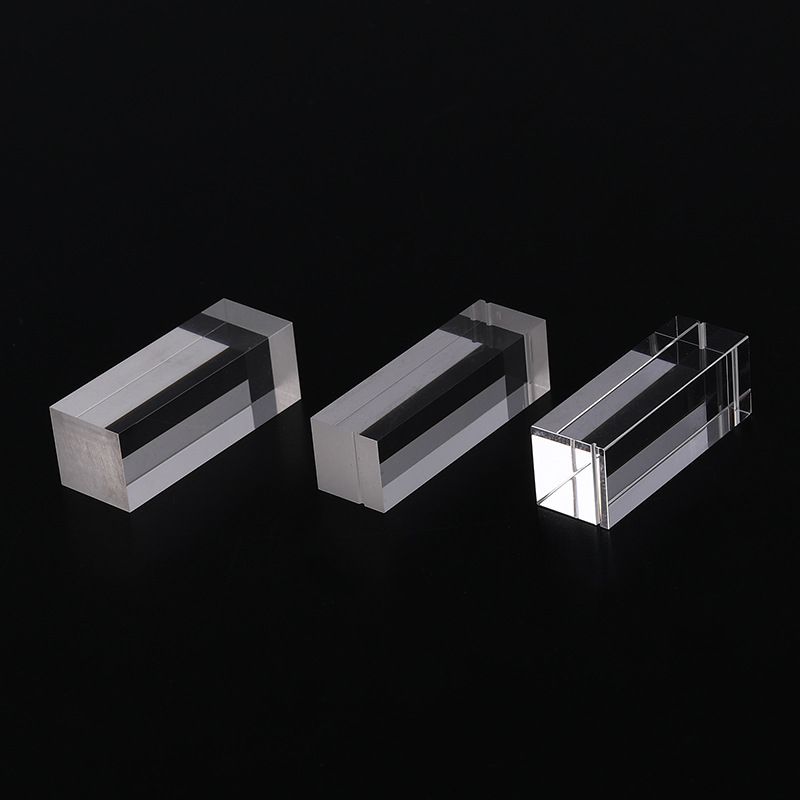

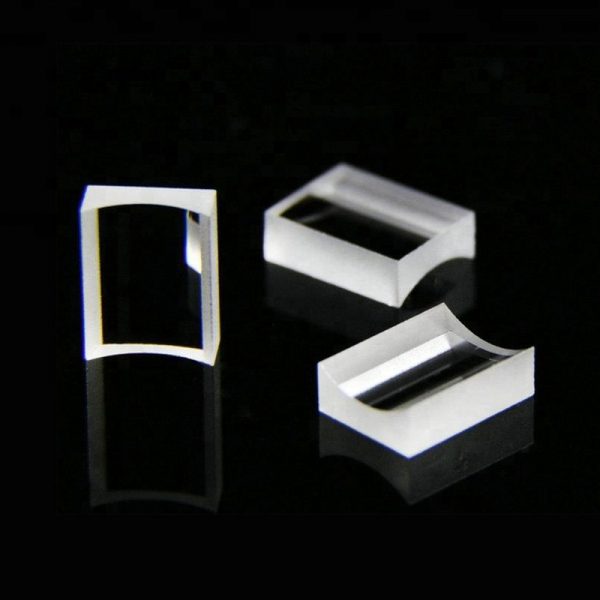

sapphire lens&prism

sapphire tube rod

Dimensional range, limit deviation (mm)

Sapphire tube and rod Diameter Range 2~400
Diameter Tolerance ±0.02
Inner Diameter Range 0.20~400
Inner Diameter Tolerance ±0.02
Length Range 2.00~400
Length Tolerance ±0.02
Inner hole  surface quality 80/50，60/40,40/20,20/10
Clear Aperture 80%~99%
Surface roughness（nm） < 0.5 min
Parallelism (arcminutes) ≤2
Facial contour (632.8nm) N λ/2 min

sapphire hole

Dimensional range, limit deviation (mm)

Sapphire hole  Diameter Range 2~400
Diameter Tolerance ±0.02
Inner Diameter Range 0.20~200
Inner Diameter Tolerance ±0.02
Length Range 2.00~200
Length Tolerance ±0.02
Inner hole  surface quality 80/50，60/40,40/20,20/10
Clear Aperture 80%~99%
Surface roughness（nm） < 0.5 min
Parallelism (arcminutes) ≤2
Facial contour (632.8nm) N λ/2 min
