402SXV Digital Micro Vickers Hardness Tester
402SXV Digital Micro Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. With a novel and pleasing appearance, the internal structure is mainly made by stainless steel parts, has better performance. It can directly shows the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time on the large screen. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. With the up and down limit alarm function, test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness. And it can be equipped with LCD video measuring device and CCD image automatic measuring system.
404SXV Digital Micro Vickers and Knoop Hardness Tester
404SXV Digital Micro Vickers and Knoop hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. With a novel and pleasing appearance, the internal structure is mainly made by stainless steel parts, has better performance. It adopts a new type of automatic turret mechanism, equipped with both Micro Vickers and Knoop indenters. It can directly shows the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time on the large screen. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. With the up and down limit alarm function, test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can be equipped with LCD video measuring device and CCD image automatic measuring system.
HV-1000 HV-1000Z Digital Micro Vickers Hardness Tester
HV-1000 / HV-1000Z Digital Micro Vickers hardness tester adopts unique precision design on optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test mode, test force, indentation length, dwell time, test numbers and conversion scale. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the screen. It can use optional Knoop indenter to measure Knoop hardness. And it can be equipped with LCD video measuring device and CCD image automatic measuring system.

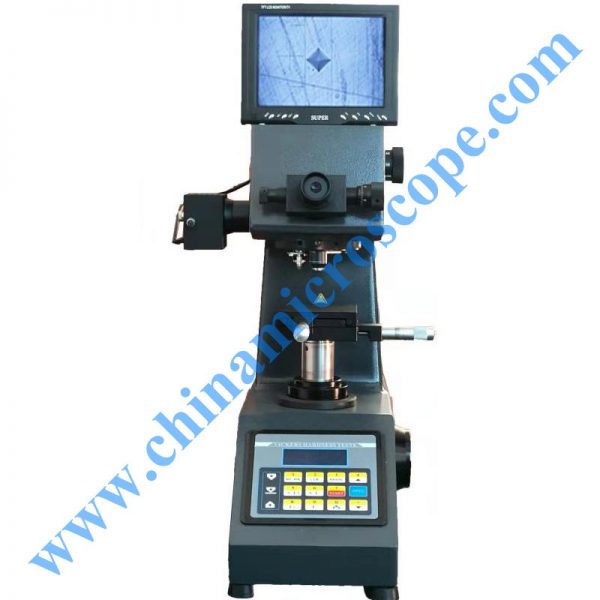

HV-1000AB microhardness tester
HV-1000AB microhardness tester
Unique precision design is adopted in mechanical, electronic and optical aspects to make indentation imaging clearer and measurement more precise *. The test method, test force, load holding time, measurement times and conversion scale can be displayed on the screen. During operation, as long as the indentation diagonal length is input from the keyboard, the hardness value can be automatically calculated and displayed on the screen. Knoop indenter can be selected for Knoop hardness measurement, and CCD image automatic measurement system can also be selected.
HVS-1000A DIGITAL DISPLAY MICROHARDNESS TESTER
HVS-1000A DIGITAL DISPLAY MICROHARDNESS TESTER
Feature & Use:
* Automatic turret shifting between penetrator and objective lens, RS232 data interface, built-in printer
* Hardness conversion between different hardness scales
* Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
HVS-1000B DIGITAL DISPLAY MICROHARDNESS TESTER
HVS-1000B DIGITAL DISPLAY MICROHARDNESS TESTER
Feature & Use:
* RS232 data interface, built-in printer
* Hardness conversion between different hardness scales
* Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

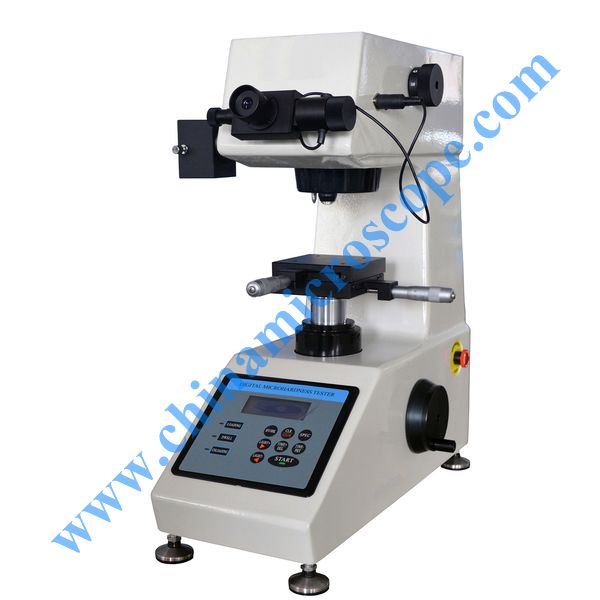

HVS-1000Z Digital Micro Vickers Hardness Tester
HVS-1000Z Digital Micro Vickers hardness tester adopts unique precision design of optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test mode, test force, indentation length, dwell time, test numbers and conversion scale. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the screen. Test results can be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness. And it can be equipped with LCD video measuring device and CCD image automatic measuring system.

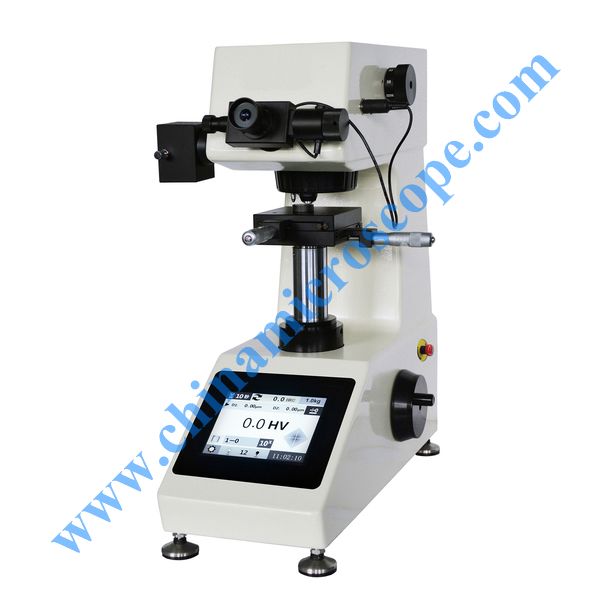

MHV-1000Z Digital Micro Vickers Hardness Tester
MHV-1000Z Digital Micro Vickers hardness tester adopts unique precision design of optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements. It adopts the high resolution color touch screen which is visual and clear, easy to operate, display backlight adjustable with energy-saving mode. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the large screen. Test results can be saved in real time with automatic calculation of maximum, minimum and average value, the data can be arbitrary deleted and printed out, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness. Also it can be equipped with LCD video measuring device and CCD image automatic measuring system.

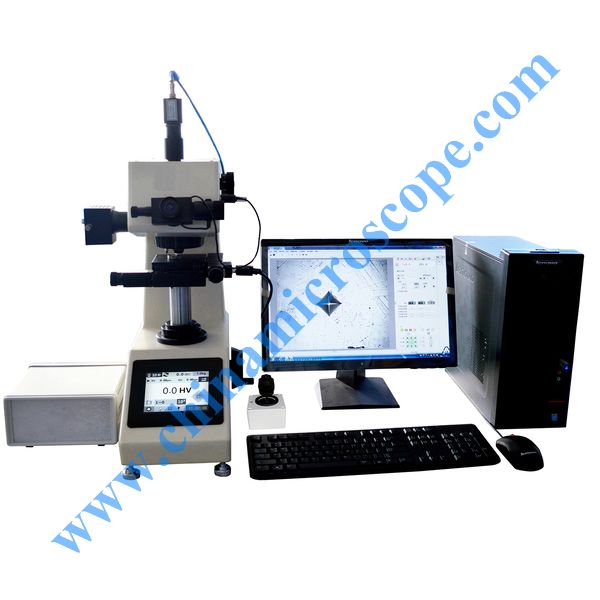

MHV-1000ZV2.0 Automatic Micro Vickers Hardness Tester
MHV-1000Z/V2.0 Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of semi automatic, high precision, high repeatability, and it is the important equipment for materials analysis.

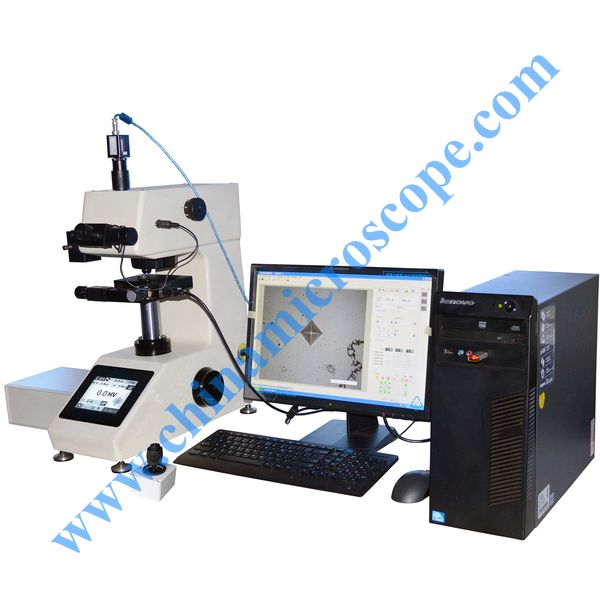

MHV-1000ZV3.0 Fully Automatic Micro Vickers Hardness Tester
MHV-1000Z/V3.0 Fully Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.
