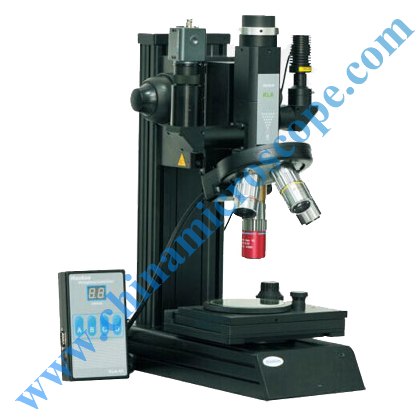

MIC-KL industrial microscope
♦smart module design, multiple combination methods which can use independently or combined use for different application
♦Iris epi-kohler illumination provide excellent light
♦Manual or auto nosepiece center adjustable for best parfocal image.
♦Can be used in different industry such as online test, measurement, laser processing and etc.
♦Nosepiece: auto quandruple (center adjustable) nosepiece/ manual quintuple (center adjustable) nosepiece
♦main body lens zoom: 1X
♦Observation method: coaxial epi-kohler illumination reflecting light(bright field.)
♦beam splitting ratio: 30：70（image: laser/illumination）/50：50（image: illumination）
♦C mount 0.5x, 0.75x, 1x
♦Main body lens tube with 1X cmount wave length: 266nm / 355nm / 532nm / 1064nm
♦with APO LWD objective visible light: 2x / 5x / 10x / 20x / 50x / 100x
NIR : 20x / 50x
NUV : 20x / 50x
♦3W LED point illumination/150w halogen fiber light illumination
MIC-N10 DIC mono industrial microscope
MIC-N10 DIC model industrial testing microscope
Infinite optical system with coaxial illumination, 2X,5X,10X,20X,50X,long working distance plan achromatic objective
Dimension: L-770MM, W-1240MM, H-470MM
Fixed stage size: 650x650MM
Moving range:X-±270mm,Y-±270mm
Main focus range: Z-40MM
6 inches high precision manual mechanical stage:
Working table: 260x220MM
Glass size: 170X250MM
Moving range: X：±75mm、 Y：±75mm

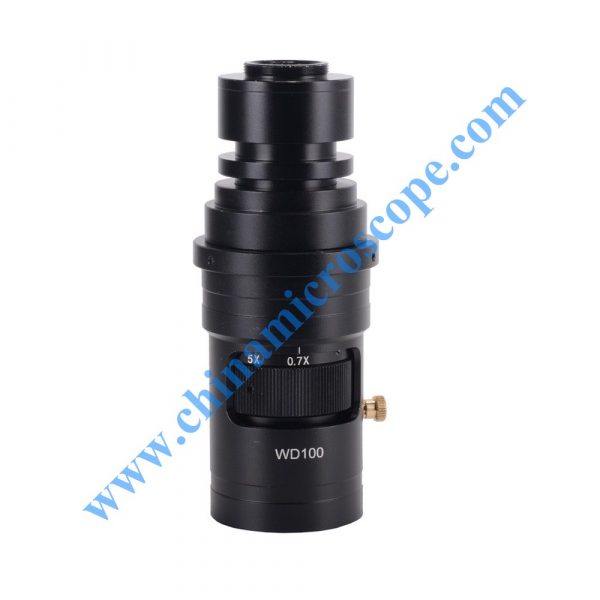

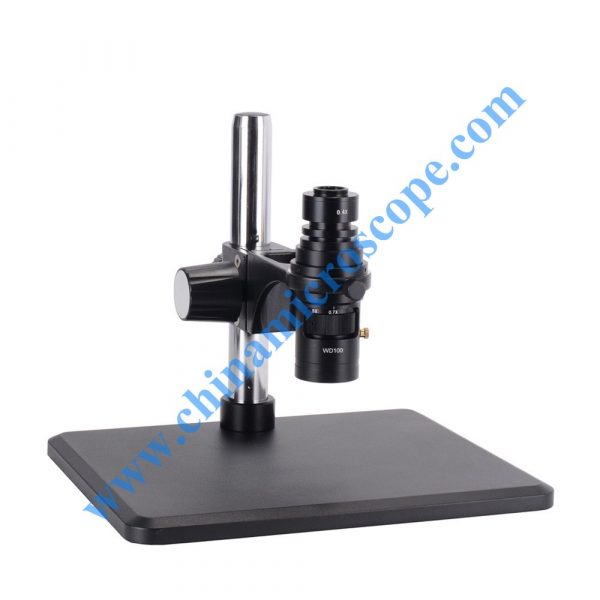

THW-T50 mono continous zoom microscope
Magnification: 0.7---5x
Work distance: 100-150mm
Focus range: 42/62mm
Work table: vertical and horizontal-type
Light: LED circular cool light resource (optional -fluorescent lamp )
THW-T50 Series Monocular Stereo Zoom Video Microscope offers sharp clear images, and it is primarily designed for using with a CCD camera. It is widely used in electronic industry and agricultural research for micro-object observation, inspection and measurement. 63-180lp/mm resolution meets the requirements of conventional imaging machine vision.
TMM-640 mono continuous zoom microscope
Magnification: 0.6X-4X
TMM-640 mini zoom monocular video micro series have two types, TMM-640 and TMM-640C. They are characterized by Infinity Optical system design, short and beautiful, large depth of field, can be with detent. Enriched accessories, various CCD adapters, magnification objectives, coaxial illumination are available. They can be widely applied in semiconductor equipments, especially suitable in two-dimensional, three-dimensional measurement systems.
Main technology Specifications：
- The range of objective zoom magnification: 0.6X～4X
- Standard total magnification: 0.6X～4X, extend total magnification: 0.09X～16X(use auxiliary objectives and kinds of magnification CCD adapters)
- Adjusting high lightness LED coaxial illumination (TMM-640C)
- The measurement to match between the support and the main body：Φ35mm
- 0.5X、1X(standard outfits)、1.5X、2X four kinds of CCD adapters to be selected.
- 0.3X、0.5X、0.75X、1X(standard outfits)、1.5X、2X auxiliary objectives to be selected.
- Kinds of auxiliary illuminators, stands to be selected.

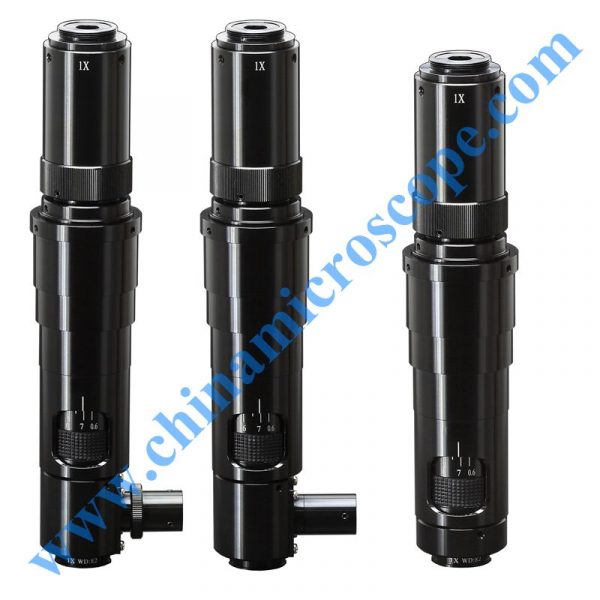

TMM-670 mono continuous zoom microscope
Magnification: 0.58X-7X
◆Large-scale zoom ratio 12:1，adopted with infinite farness optical systems design .
◆Various CCD adapters, magnification objectives, coaxial illumination, ring illumination are available for optional
◆Includes TMM-670, TMM-670C, TMM-670-D,TMM-670C-D, TMM-670C-PL, TMM-670-AZ
◆Especially used in electric equipments, LCD，LED and etc. for digital image observation, inspection and measurement
TMM-745 mono continuous zoom microscope
Magnification: 0.7X-4.5X
Unique optical system & precise machinery framework
Sharp microimages & non-coruscant during zoom course
Can observe different objects by equipped with different LED adaxial illumination and coaxial illumination.
Used in electric equipments，semiconductor，LCD，LED and etc. for digital images observation，inspection and measurement.
TMM-746C mono continuous zoom microscope
Magnification: 0.7X-4.6X
TMM-746C, TMM-746C-D, TMM-746C-PL
High-quality effect of coaxial illumination, contrast, definition and depth of field are outstanding
In addition to equipped with coaxial illumination, also can equipped with LED ring illuminator
Specially used for inspect & measure bottom of small deep hole, defect of LCD, plane press works and other plane objects with high reflectivity & low reflectivity simultaneously.

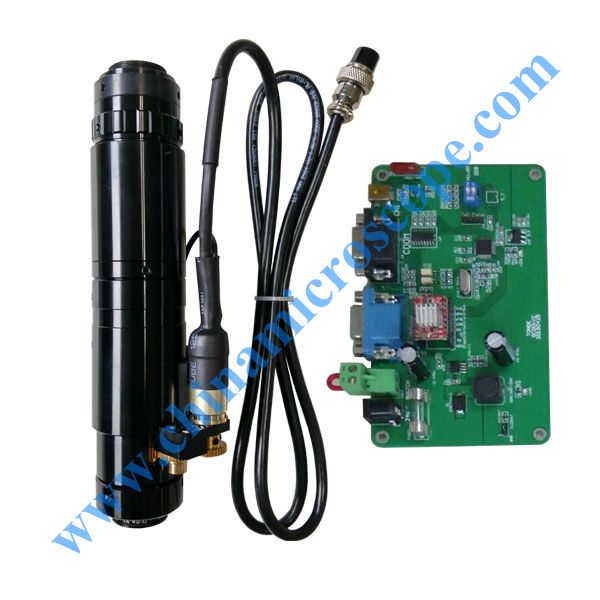

TMM-H850 mono continuous zoom microscope
Magnification: 0.75X-5X
MIC TMM-H850 series
Infinite and coaxial illuminate optical systems
High-resolution and high definition
Can observe different objects by using LED coaxial illumination or fiber optic illumination.
Wildly used in electric equipment, semi-conductor, LCD，LED and etc. for digital image observation, inspection and measurement
