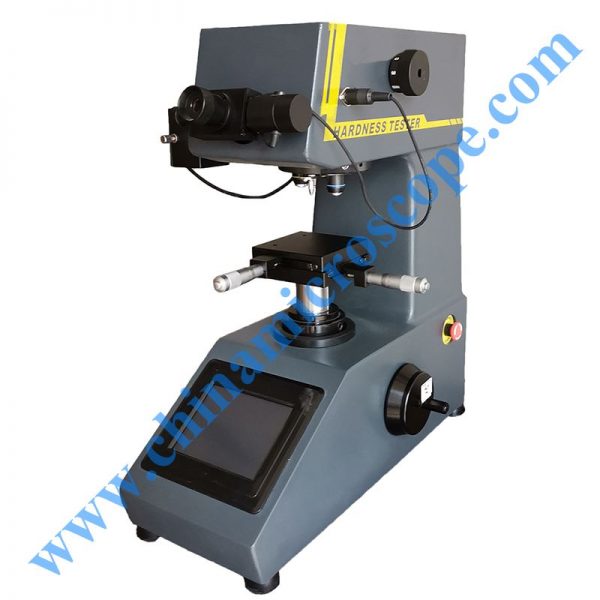

HVS-1000 Digital microhardness tester

HVS-1000 Digital microhardness tester

Test force: 0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80）N

10、25、50、100、200、300、500、1000）gf

Loading and unloading control of test force: Fully automatic (load / hold / unload)

Tower transfer mode: Manual turret

Measuring microscope magnification: 400X, 100X

Test force holding time: （5～60）S

Micrometer drum * * small division value: zero point zero six two five μ m

Measuring range: 1HV～3000HV

XY bench size: one hundred × 100 mm

XY bench stroke range: twenty-five × 25 mm

Specimen * * large height:100mm

Specimen * * large width: 95mm

Light source: Cold light source / halogen lamp

Power Supply: 110V/220V,60/50Hz

Dimensions:480×325×545 mm

Standard configuration:

Micro Vickers indenter: 1 Objective lens (10 ×、 40 × )： 1 for each

10 × Digital micrometer eyepiece: 1 Cross test bench: 1

Wafer clamping table: 1 Flat clamping table: 1

Filament clamping table: 1 Horizontal adjusting screw: 4 pieces

Level meter: 1 Vickers hardness block: 2 pieces
