MIC-315 Rotary microtome

MIC-315 Rotary microtome

key components such as guide rail ,screw mandrel, Ratchet rod are import from Japan. The Rotary microtome MIC-315  is ideal for most routine histology, biological and industrial needs. High precision & stability ensures exact reproducible section quality in wax and plastic embedded sections.

Product specifications :

• High precision specimen feed

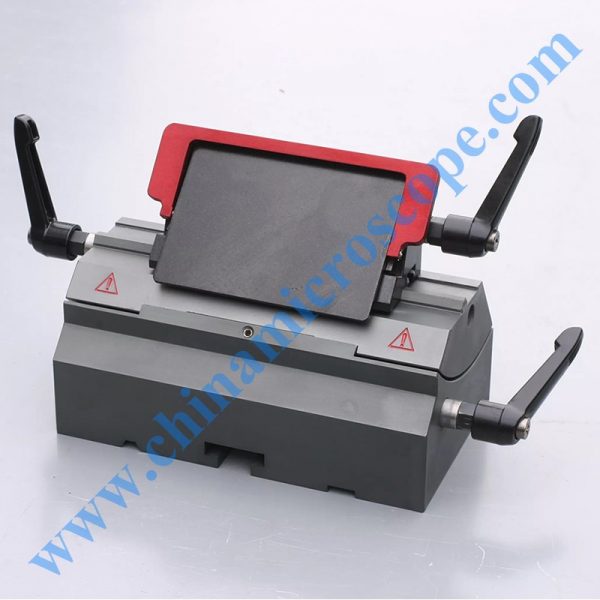

• Universal cassette clamp and standard specimen clamp
• The hand wheel can be locked in any position or highest position , The dual fail-safe control system is safe and reliable

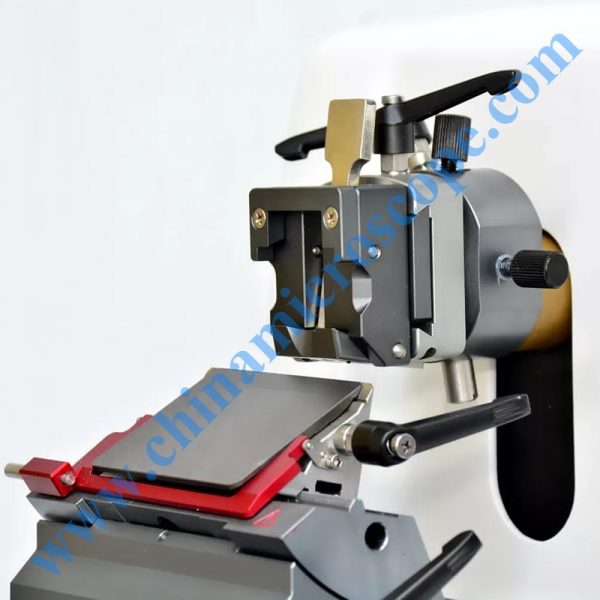

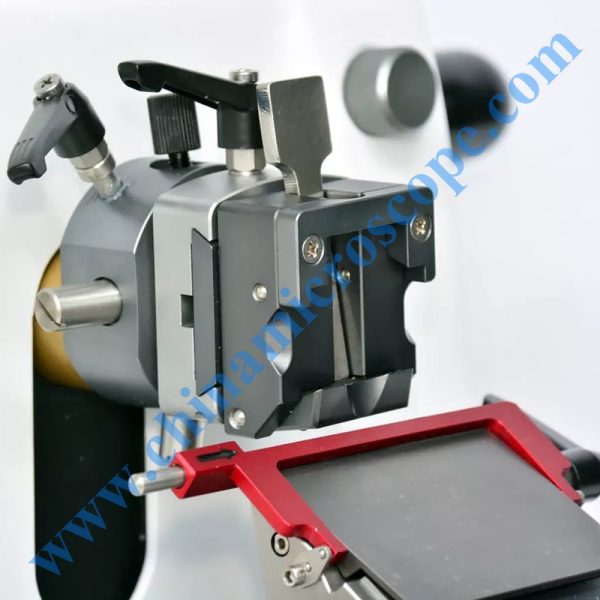

• It adopt the special blade holder , it is more safe and convenient to use the disposable blade directly . good durability and long service life
• Smoothly running handwheel
• Spacious, integrated section waste tray

Technical Data:

• Section thickness range: 0- 60um

Setting values : From 0-2 um in 0.5 um –increments

Form 2-10um in 1 um-increments

Form 10-20 um in 2 um-increments

Form 20-60um in 5 um-increments

• Horizontal specimen stroke :28 mm
• Vertical specimen stroke : 60mm
• Precision error: ± 5%
• Sample orientation:8°along the X-Y-axisrotable 360°
• Maximum section size: 50 × 45mm
• Dimensions incl. tray (L/T/H)：300mm（L）X570mm（W）X270mm（H）
• Net weight:30kg
