Products Description
MIC TECH high performance microscope is the perfect combination of excellent optical quality and comfortable handling.
MIC TECH professional surgery microscope, you see a fashionable, smooth lines, beautiful shape with a sense of modern design of high-end microscope, and modern consulting room perfect fit.
Under the fashionable appearance is full of excellent optical quality, you have upgraded to a higher level of clinical treatment,bringing you a higher quality, more efficient work experience.
MIC TECH microscope sysems offer new dimension in perormance, lexbilily and economy in diagnosics and surgery. compact design is tailored to oplimize use of imited operating room spoce. From oupatient cinics to sugeries,MIC TECH offers perfomance to serve every clinical requirement in the field of Orthopedics, plastic surgery, gynecology, andrology.

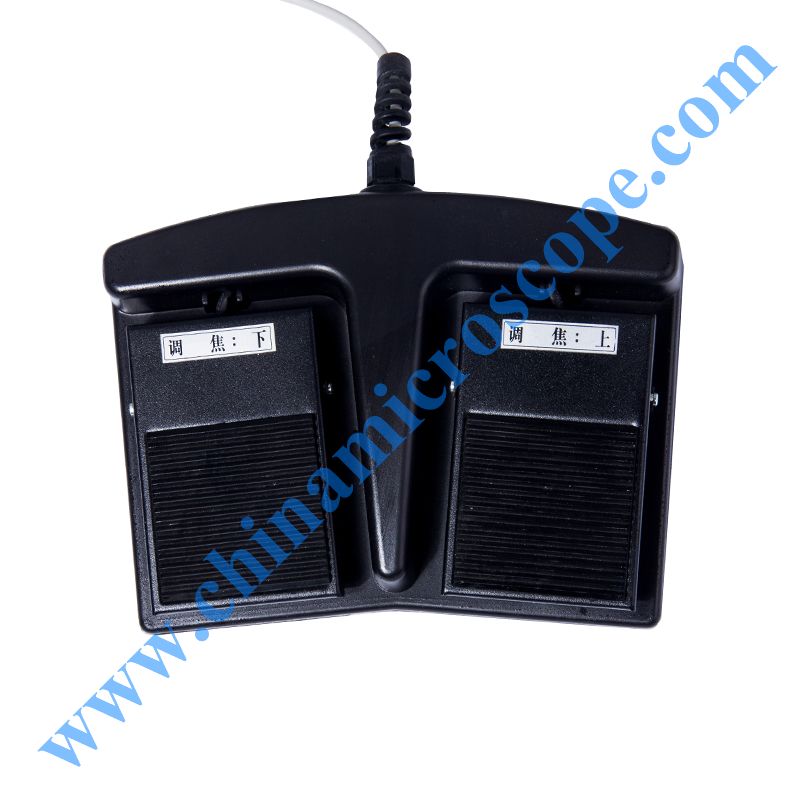

The operating microscope from MIC TECH adopts the excellent achromatology system, the color reduction is more real, the large wide Angle eyepiece,motorized focusing by foot switch, the level 3 magnification can identify the smaller details and fine structures, comprehensively improve your diagnosis and treatment quality.
180 degree integrated face to face tube, main Observation tube and assistant tube have the same field of view, the same magnification and the same brightness.
Eyepiece adopts 12.5/ 10x wide-angle eyepiece, which can provide large field of view and 3D stereoscopic imaging. Diopter +6- 6D diopter range, eye cup height adjustable, the operator of the glasses can be comfortable without the glasses to complete the work.
Given most clinics have spatial constraints, a microscope needs to be more compact thar ever. Housingthe LED light source and electronics within the Prima arm assembly eliminates the need for bulky illumination housing, yielding an overall space saving of approximately 20% compared to conventional Xenon and Halogen systems.
A modular solution to fit your needs
Depending on your needs, you may choose to equip your device with an external HD HD camera system
High quality imported silent medical mobile base casters, four wheels can be locked.
1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.
Product Parameter
| Model | MIC-CD510-4A |
| Function | ophthalmology |
| Electrical data | |
| Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ |
| Power consumption | 40VA |
| Safety class | class I |
| microscope | |
| Magnification | manual 3-step changer, ratio 0.6，1.0，1.6 , total magnification 6,x 10x，16x ( F 200mm), |
| Focusing range | 50mm |
| Binocular tube | 45° tube |
| Eyepiece | 12.5x / 10x |
| Stereo base | 22mm |
| Objectives | F=200mm |
| Pupil distance | 55mm~75mm |
| diopter adjustment | +6D ~ -6D |
| Light source | LED cold light |
| Built-in orange filter | Red free filter, small spot |
| Light intensity adjustment | Using a drive knob on the optics carrier |
| Stands | |
| Max extension range | 1193mm |
| Base | 610 × 610 mm |
| Transportation height | 1476 mm |
| Balancing range | Min 4 kg to max 7.7 kg load on the optics carrier |
| Brake system | Fine adjustable mechanical brakes for all rotation axes with detachable brake |
| System weight | 68 kg |
| Stand options | Ceiling mount,Wall mount,Floor plate,Floor stand |
| Accessories | |
| Binocular tube | Selection of fixed and variable observation angle |
| CCD Camera system | Beam splitter, CCD adapter, CCD, Display |
| Mobile phone adapter | Compatible with all models |
| Integrated Video Adapter | SONY / CANON Camera |
| Video accessories | |
| CCD Camera system | Beam splitter, CCD adapter, CCD, Display |
| Mobile phone Adapter | Compatible with all models |
| Integrated Video Adapter | SONY / CANON Camera |
| Ambient conditions | |
| Use | +10°C to +40°C |
| 30% to 75% relative humidity | |
| 500 mbar to 1060 mbar atmospheric pressure | |
| Storage | –30°C to +70°C |
| 10% to 100% relative humidity | |
| 500 mbar to 1060 mbar atmospheric pressure | |
