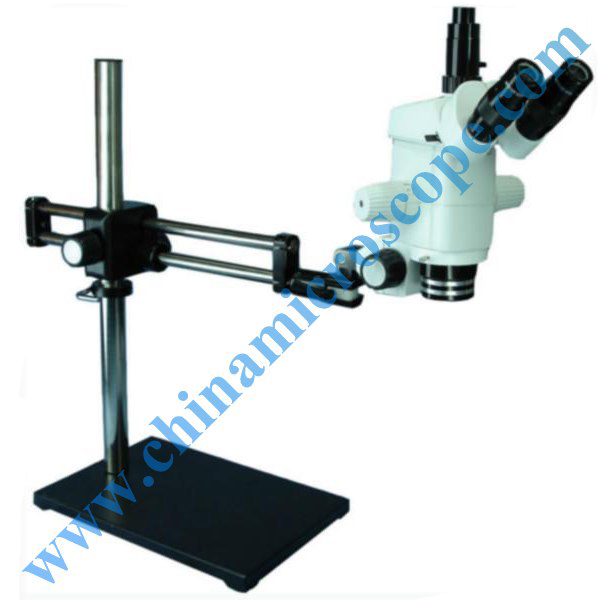

MIC TECH SM series zoom stereo microscope. Two parallel beam paths and high quality optic system offer you high resolution and distortion-free contrast image throughout the entire zoom range, zoom ratio is 8:1, SM also use modular design, we can supply you various packages with the high resolution and the most valuable microscope.
(1)、Design principle: two parallel beam paths optic system, modular construction
(2)、Standard set: SM optic head with 1.0x plan achromatic objective
(3)、Zoom range: 0.62x-5x
(4)、Zoom ratio: 8:1
(5)、Magnification: 6.2x-50x (with accessory lens: 1.9x-250X )
(6)、Working distance: 80mm (with accessory lens: 26mm-278mm)
(7)、Field of view: 33.9mm- 4.2mm (with accessory lens: 106mm- 0.6mm)
(8)、Interpupillary distance: 50mm-75mm
(9)、 Optional objective: plan achromatic: 0.32x , 0.5x, 0.63x achromatic: 1.6x, 2.0x
(10)、Dioptric correction: +5 — -5
(11)、 Optional eyepiece: WFH10x-D/21、WF16x、WF20x、WF25x
Wide-field eyepiece
2180 WFH10x (high eye point, wide-field, distortion-free)
2140 WF20x
2150 WF25x
Achromatic objective
SM-2263: 0.32x plan achromatic objective
SM-2264: 0.5x plan achromatic objective
SM-2265: 0.63x plan achromatic objective
SM-2266: 1.0x plan achromatic objective standard part
SM-2261: 1.6x achromatic objective
SM-2262: 2.0x achromatic objective
