Specification List

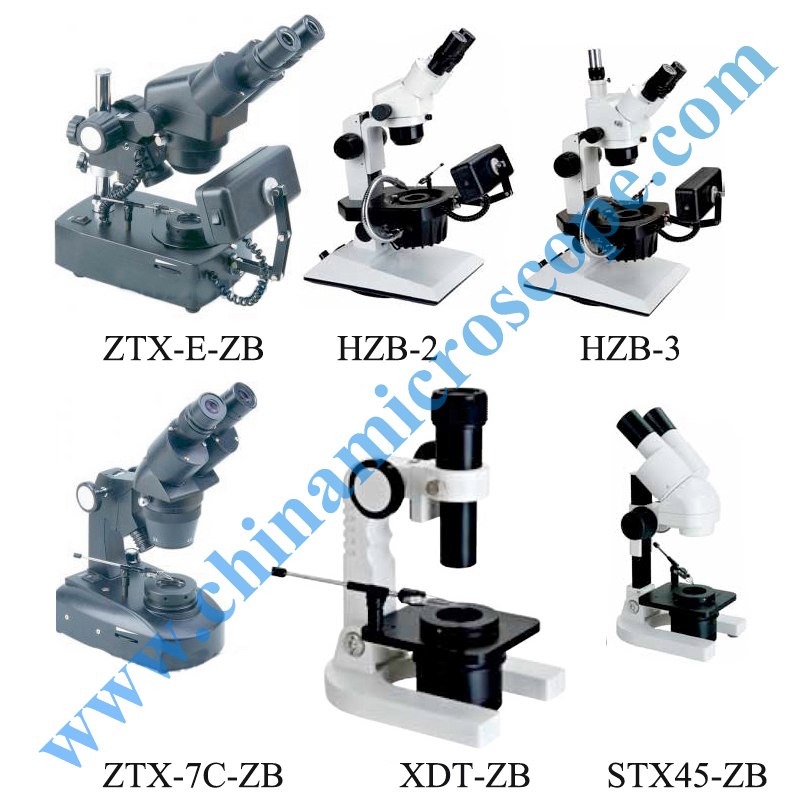

| Specification list | Specification | ZTX-E-ZB | HZB-2 | HZB-3 | ZTX-7C-ZB | XDT-ZB | STX45-ZB |
| Viewing Head | Inclined Binocular | ● | |||||
| Inclined Binocular | ● | ● | ● | ● | |||
| Inclined Trinocular | ○ | ● | |||||
| Head 360° Rotatable | ● | ● | ● | ● | ● | ||
| Eyepiece | WF5X | ○ | ○ | ○ | ○ | ||
| WF10X/Ø15 | ○ | ||||||
| WF10X/Ø18 | ● | ||||||
| WF10X/Ø20 | ○ | ○ | ○ | ● | |||
| SWF10X | ● | ● | ● | ||||
| HWF10X | ○ | ○ | ○ | ||||
| WF15X | ○ | ○ | ○ | ○ | |||
| WF20X | ○ | ○ | ○ | ○ | |||
| Objective | 2X | ● | |||||
| 0.75X~5X | ● | ● | |||||
| 1X-4X | ○ | ● | ● | ||||
| 0.7X~3.6X | ○ | ||||||
| 2X/4X | ● | ||||||
| 1X/3X | ○ | ||||||
| 1X/2X | ○ | ||||||
| Total mag. | ● | ||||||
| Incident lig | Halogen lamp 12V/10W | ● | ● | ● | ● | ||
| Fluorescent 10W | ● | ○ | ● | ○ | |||
| Single fiber | ● | ○ | |||||
| Transmitted light | LED | ● | ● | ||||
| Halogen lamp 12V/10W | ● | ● | ● | ● | |||
| Accessory | Jewel tweezers | ● | ● | ● | ● | ● | ● |

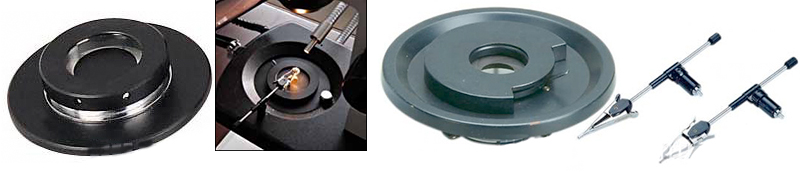

| Dark field working stage (with diaphragm) | ● | ● | ● | ● | ● | ● |
Technique data
| Model | Objective | Working Distance | Field of view |
| ZTX-E-ZB | 1×-4× | 90.5 | 22-5.5 |
| 0.7×-3.6× | 86 | 26-5.8 | |
| XTX-7C-ZB | 1× | 75 | 20 |
| 2× | 91 | 91 | |
| 3× | 69 | 10 | |
| 4× | 70 | 5 | |
| HZB-02/HZB-03 | 0.75×-5× | 113 | 33-5.1 |
| STX45-ZB | 2X | 75 | 7.5 |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
