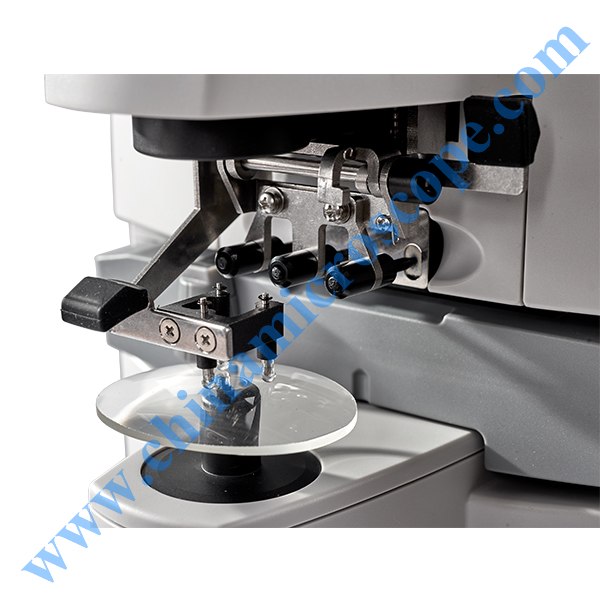

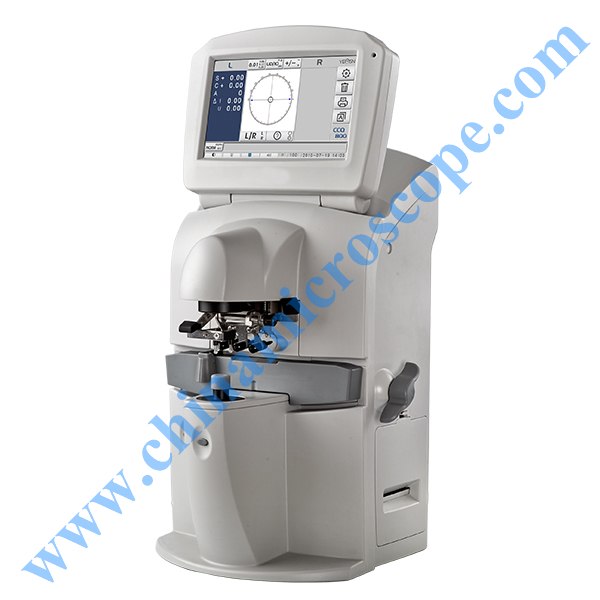

MIC-L8 touch screen lensmeter focimeter
Auto Identification of Lens Type
Support auto judgment of lens type and identification of single-vision and progressive lens.
Green LED Light Source
No need to set Abbe compensation when measuring lenses with different refractive indexes.
Hartman Measurement
Adopts multi-points collection optical system.
Equipped with 7-inch industrial HD touch screen with outstanding image quality.
Unique multi-core processor.
Strong data processing core,supporting accurate measurement of low astigmatism
and low transmittance lens
Supports measurement of PD, PH,UV ;built-in thermal printer.
| Sphere lens | -25.00D~+25.00D,Step0.01D/0.06D/ 0.12D/0.25D |
| Cylinder lens | -9.99D~+9.99D,Step0.01D/0.06D/ 0.12D/0.25D |
| Add | -9.99D~+9.99D,Step0.01D/0.06D/ 0.12D/0.25D |
| Contact lens | -20.00D~+20.00D,Step0.01D/0.06D/ 0.12D/0.25D |
| Axis | 0°~180°,Step1° |
| Prism basal angle | 0°~360°,Step1° |
| Prism power | 0~20 Δ,Step0.01Δ |
| Lens diameter | ø10mm~ø100mm |
| Lens center thickness | ≤20mm |
| Lens pupil distance | 40mm ~82mm |
| Size and weight | 235(W)×246(D)×487(H)mm/5.45kg |
| Power supply | Output DC 12V 3.34A |
