OP-1 Series Polarizing Microscope Outfits
| Item | Specification | OP-1T | OP-1R | OP-1TR | |
| Eyepiece | WF10X／22mm （adjustable） | ● | |||
| WF10X／22mm （adjustable，reticule 0.1mm） | ● | ||||
| WF10X／20mm （adjustable） | ● | ● | |||
| WF10X／20mm （adjustable，reticule 0.1mm） | ● | ● | |||
| Professional Polarizing Seidentopf Binocular Head | Inclined 30°, rotatable 360°, Interpupilary distance: 48mm ～ 76mm |
● | ● | ● | |
| Professional Polarizing Seidentopf Trinocular Head | Inclined 30°, Rotatable 360°, Interpupilary Distance : 48mm ～ 76mm,Light distribution（both）100: 0（100% for eyepiece）80:20（80% for trinocular head and 20% for eyepiece） |
○ | ○ | ○ | |

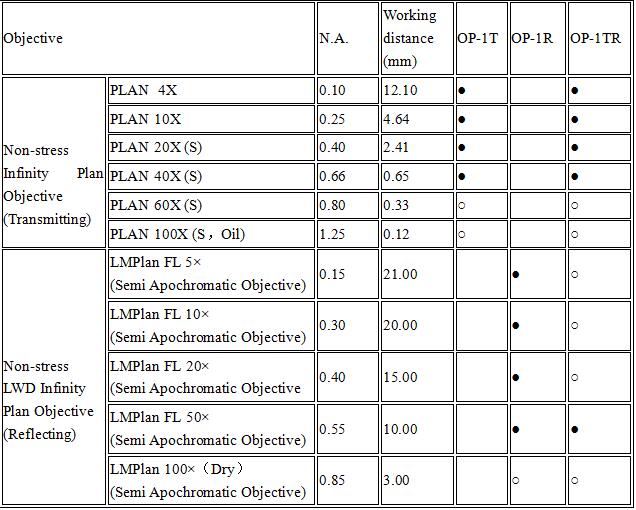

| Non-stress Infinity Plan Objective
(Transmitting) |
PLAN 4X／0.10 | W.D.= 12.1mm | ● | ● | |
| PLAN 10X／0.25 | W.D.= 4.64mm | ● | ● | ||
| PLAN 20X／0.40(S) | W.D.=2.41mm | ● | ● | ||
| PLAN 40X／0.66(S) | W.D.=0.65mm | ● | ● | ||
| PLAN 60X／0.80(S) | W.D.=0.33mm | ○ | |||
| PLAN 100X／1.25(S，Oil) | W.D.=0.12mm | ○ | |||
| Non-stress LWD Infinity
Plan Objective (Reflecting)
|
LMPlan FL 5×/0.15
(Semi Apochromatic Objective) |
W.D=21.00mm | ● | ○ | |
| LMPlan FL 10×/0.30
(Semi Apochromatic Objective) |
W.D.= 20.00mm | ● | ○ | ||
| LMPlan FL 20×/0.40
(Semi Apochromatic Objective) |
W.D.= 15.00mm | ● | ○ | ||
| LMPlan FL 50×/0.55
(Semi Apochromatic Objective) |
W.D.= 10.00mm | ● | ● | ||
| LMPlan 100×/0.85（Dry）
(Semi Apochromatic Objective) |
W.D.= 3.00mm | ○ | ○ | ||
| Nosepiece | Quintuple （center adjustable） | ● | ● | ● | |
| POL Media | Analyzer rotatable 360°, module type, can be locked | ● | ● | ● | |
| Bertrand lens, Built In,focus adjustable | ● | ● | ● | ||
| Slip | λslip（First Class Red） | ● | ● | ● | |
| λ/4 slip | ● | ● | ● | ||
| Quartz wedge（Ⅰ～ Ⅳ） | ● | ● | ● | ||
| Revolving Round Stage | Rotatable 360°, center adjustable, can be locked.
division 1°, vernier division 6’. Diameter Φ174mm |
● | ● | ● | |
| Swing-out Condenser | N.A.0.9/0.13, polarizing unit ( with scale, rotatable 360°,can be locked) | ● | ● | ||
| Coaxial Coarse and Fine Focusing Unit | Coarse stroke 25mm,
Fine stroke per rotation:0.2mm, fine division 2 μm |
● | ● | ● | |
| Transmitting | 5WLED lamp（Input voltage:100V～240V） | ● | ● | ||
| Transmitting Illumination | 6V/30W Halogen lamp（Input voltage:100V～240V） | ○ | ○ | ||
| Reflecting Illumination | 12V/50W halogen lamp（Input voltage:100V～240V） | ○ | ● | ||
| Filter | Blue/ Amber/ Green/ Neutral | ○ | ○ | ○ | |
| Attached Polarizing Mechanical Stage | ○ | ○ | ○ | ||
| C-Mount | 1X /0.75 X /0.5 X (Focus adjustable) | ○ | ○ | ○ | |
| Packaging | Packing Size | Gross Weight | Net Weight |
| OP-1T | 520mm×470mm×285mm | 12.5 kgs | 10 kgs |
| OP-1TR | 520mm×470mm×430mm | 16 kgs | 12.5 kgs |
| OP-1R | 520mm×470mm×430mm | 15 kgs | 11.5 kgs |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
