MIC-ZXQ-5s mounting machine for metallographic specimen
Description

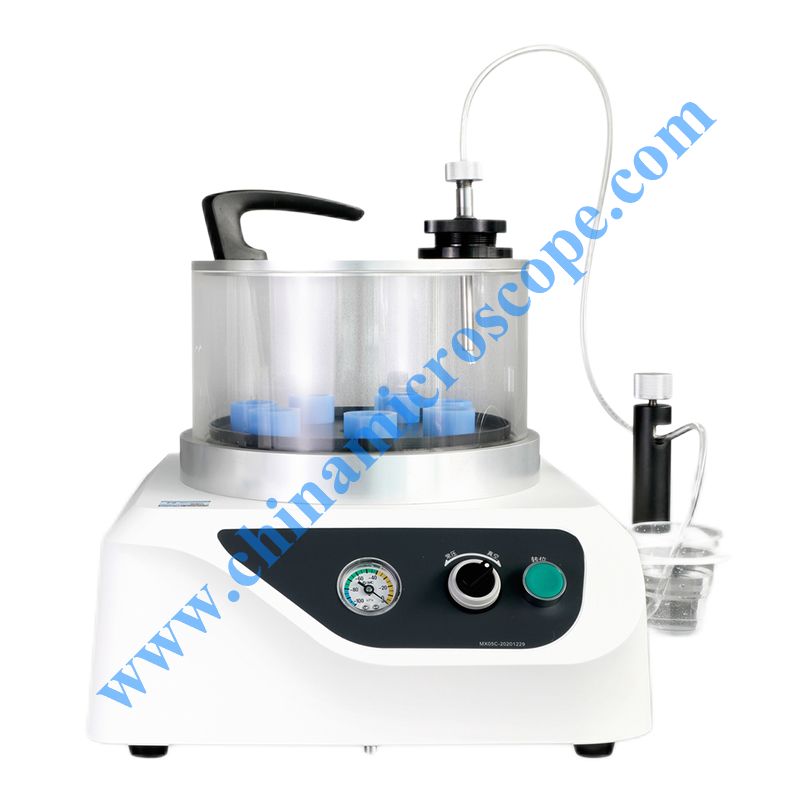

VIM-1 Vacuum Mounting Press
The machine consists of a vacuum chamber, an indexing assembly, a fuselage assembly, a feed assembly, and a vacuum pump. This model can realize multi-sample setting, which can be quickly converted between each station to improve work efficiency.
Technical indicators:
| Vacuum Chamber Diameter | φ260mm |
| Transposition Speed | 5r/min |
| Sample Diameter | φ25~50mm、 |
| Voltage | 220V or 110V |
This machine’s optimized heating and cooling system makes the setting time extremely short. And all processes from heating, holding, holding, cooling and unloading are done automatically with one click.
Technology Parameter
| Sample Diameter | φ25mm、φ30mm、φ40mm、φ50mm
1inch,1.25inch,1.5inch,2inch |
| System Pressure | 0-20MPa |
| Cooling Range | 40～90 ℃ |
| Heating Temp. | 90～200 ℃ |
| Heating Power | 4200W for 25,30mm
5400W for 40,50mm |
| Power | 4500W |
| Voltage | 220V，50Hz |
| Dimensions | 671*485*463mm |
