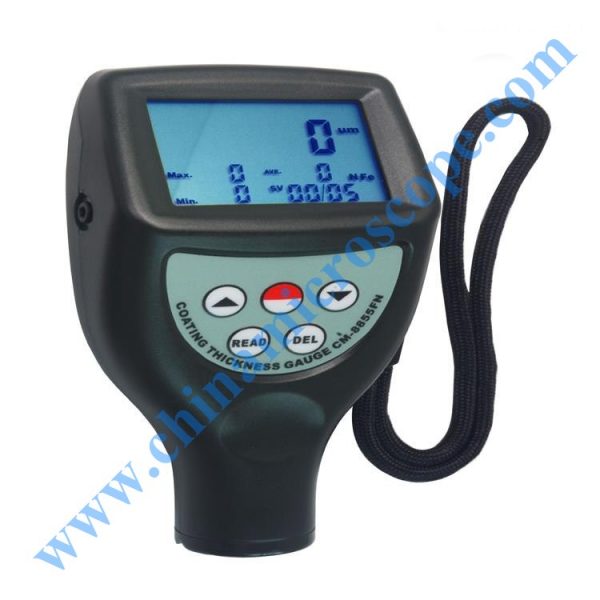

CM-8855 Statistical type COATING THICKNESS GAUGE
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
Features
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.
Principles | Applications | Examples |
F Type Magnetic Induction (Iron Base) |
Measure the thickness of non-magnetic materials on magnetic materials | Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
NF Type Eddy Current (Aluminium Base) |
Measure the thickness of non-conductive coatings on non-magnetic metals | Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc |
Principle | F Magnetic Induction&NF Type Eddy Current | |
Range | 0~1250µm/0~50mil | |
Resolution | 0.1µm/1µm | |
Accuracy | ±1~3%nor±2.5µm | |
Min.Radius Workpiece | F Type:convex 1.5mm/concave 25mm
NF Type:convex 3mm/concave 50mm |
|
Min.Measuring Area | 6mm | |
Min.Sample Thickness | 0.3mm | |
Data Memory | 99 Groups | |
Metric/Imperial | √ | |
Battery Indicator | √ | |
Automatic Power Off | √ | |
Operating Conditions | Tempersture | 0~40ºC |
Humidity | 10~90%RH | |

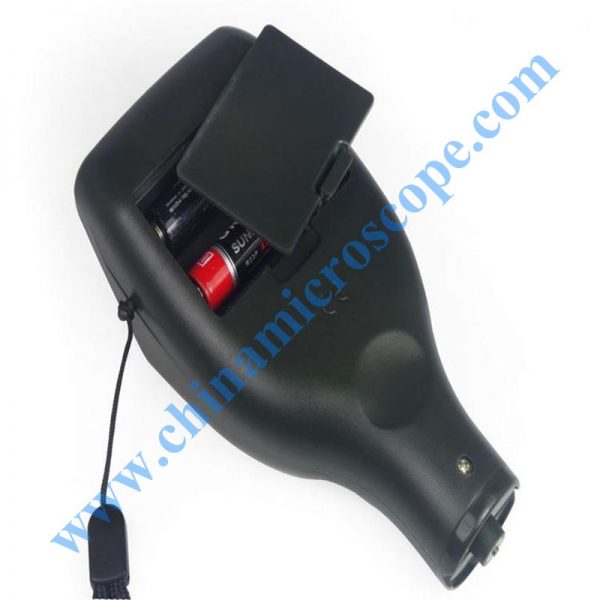

Power Supply | 2×1.5V AAA(UM-4)Battery | |
Dimensions | 126x65x35mm | |
Weight(Not Including Batteries) | 81g |
