BK2000 3000 biological Microscope

BK2000 3000 biological Microscope serials biological microscope

This serials microscope is old type and stable traditional clinical use microscope

Sharp image, good quality, widely used in Chinese schools and laboratories.

BK2000

Item	Specification	2100	2200	2201	2300	2301	Order No.
Eyepieces	Plan eyepiece (10X-18)	●	●●	●●	●●	●●	EP10a
Eyepieces	Photo negative eyepiece S4				●	●	EPHn4
Achromatic Objectives	4/0.10	●			○	○	B-OA4c
	10/0.25	●			○	○	B-OA10d
	(S) 40/0.65	●			○	○	B-OA40d
	(S) 100/1.25 oil	●			○	○	B-OAo100c
Plan objectives	S-Plan 4/0.10	○	●	●	●	●	B-OSPr4
	S-Plan 10/0.25	○	●	●	●	●	B-OSPr10
	S-Plan 40/0.65	○	●	●	●	●	B-OSPr40
	S-Plan (S) 100/1.25(oil)	○	●	●	●	●	B-OSPor100
Eyepiece Heads	Monocular head (45°inclined, 360°circumrotation)	●					TM18
	Teaching head	○	○	○			TM16
	Binocular head (45°inclined, slide)		●				TB10
	Trinocular head (45°inclined, slide)				●		TT05
	Binocular head (30°inclined, revolution)			●			TBR06
	Trinocular head (30°inclined, revolution)					●	TTR02
Main Body	Five-hole nosepiece (built-in)		●	●	●	●	MSBk4
Main Body	Four-hole nosepiece (built-in)	●	○	○	○	○	MSBk3
Condenser	N.A.1.25Oil	●	●	●	●	●	C20
Base	AC220V or 110V	●	●	●	●	●	B26
Photo Attachment	35mm DF camera				●	●
Photo Attachment	Photo tube				●	●	MP03
Immersion oil		●	●	●	●	●
Filter	Ø32 (blue)	●	●	●	●	●	CU02-1
CCD attachment					○	○	TV02

BK2000 Optional Accessories

Item		Specification	Order No
Eyepieces		Plan eyepiece (16X-10)	EP16a
		Pointer eyepiece (10X-17.2)	Erg10
		Plan reticle eyepiece (10X-18)	EPr10b
		2.5X photo negative eyepiece	EPHn2.5
Achromatic Phase-contrast Attachment		8X Central eyepiece	EC8
		Achromatic negative phase-contrast objective 10/0.25	B-OAn10
		Achromatic negative phase-contrast objective 40/0.65	B-OAn40
		10x annular plate	RP01
		40x annular plate	RP02
Plan Phase-contrast Attachment	Plan achromatic negative phase-contrast objective SPlan10/0.10		B-OSPnr10a
	Plan achromatic negative phase-contrast objective S-Plan (S) 40/0.10		B-OSPnr40a
	Plan achromatic negative phase-contrast objective S-Plan (S) 100/1.25		B-OSPonr100
	Plan achromatic positive phase-contrast objective SPlan10/0.10		B-OSPpr10
	Plan achromatic positive phase-contrast objective S-Plan (S) 40/0.65		B-OSPpr40
	Plan achromatic positive phase-contrast objective S-Plan (S) 100/1.25		B-OSPopr100
	Phase-contrast condenser (used in S-Plan phase-contrast Objective)		C06a
Field diaphragm			DI06
Filter		Ø 32 (Green)	CU02-2
Filter		Ø 32 (Amber)	CU02-3
Reflector			MT04
Dark field Attachment		Dark field condenser N.A.0.83-0.91	C07
Dark field Attachment		Simple dark field attachment	DS03
Simple polarizer Attachment		Polarizer slide	PO01
Simple polarizer Attachment		Analyzer	PA01

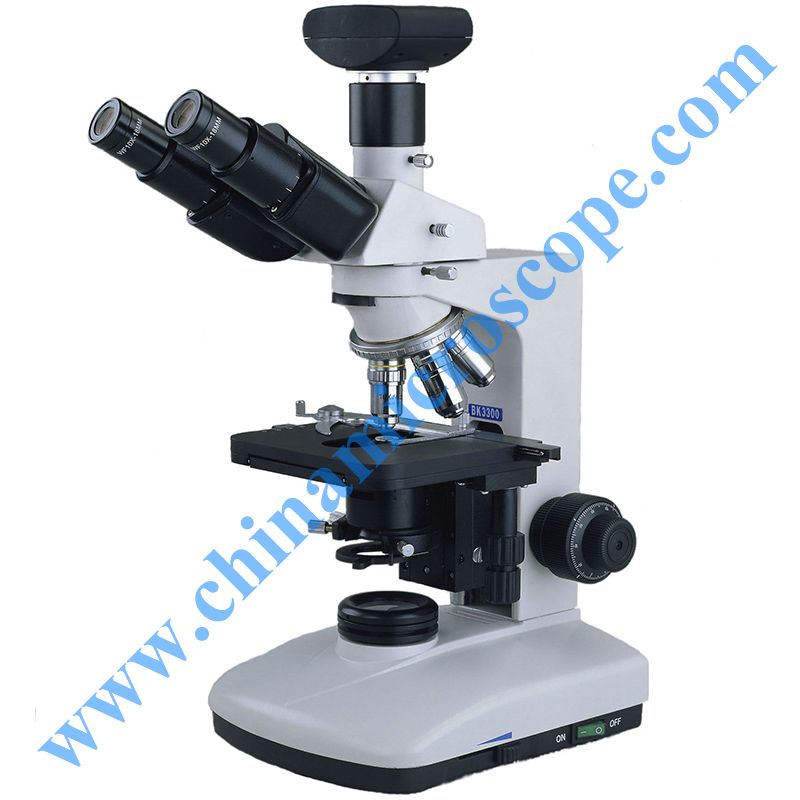

Standard Specification of BK3000 Series Biological Microscope

Item	Specification	BK3200	BK3300	Order No.
Eyepieces	Plan eyepiece (10X-18)	●●	●●	EP10a
Eyepieces	Photo negative eyepiece S4		●	EPHn4
IOS achromatic Objectives	4X/0.10	●	●	B-OAi4a
	10X/0.25	●	●	B-OAi10a
	(S) 40X/0.66	●	●	B-OAi40a
	(S) 100X/1.25(oil)	●	●	B-OAoil100a
Eyepiece Heads	Binocular head(30°inclined,revolution)	●		TBR11
Eyepiece Heads	Trinocular head(30°inclined,revolution)		●	TTR04
Main body	Five-hole nosepiece	●	●	MSBk5
Condenser	N.A.1.25Oil	●	●	C20
Base	AC220V or 110V	●	●	B26
Photo Attachment	Photo tube		●	MP03
Photo Attachment	35mm DF camera		●
Immersion oil		●	●
Filter	Ø 32 (blue)	●	●	CU02-1

BK3000 Optional Accessories

Item	Specification	Order No.
Eyepieces	Plan eyepiece (16X-10)	EP10a
	Pointer eyepiece (10X-17.2)	Erg10
	Plan reticle eyepiece (10X-18)	EPr10b
	2.5X photo negative eyepiece	EPHn2.5
Filter	Ø 32 (Green)	CU02-2
Filter	Ø 32 (Amber)	Cu02-3
Reflector		MT04
Dark field Attachment	Dark field condenser	C07
Dark field Attachment	Simple dark field attachment	DS03
Simple polarizer Attachment	Polarizer slide	PO01
Simple polarizer Attachment	Analyzer slide	PA01

Click to enlarge

Previous product

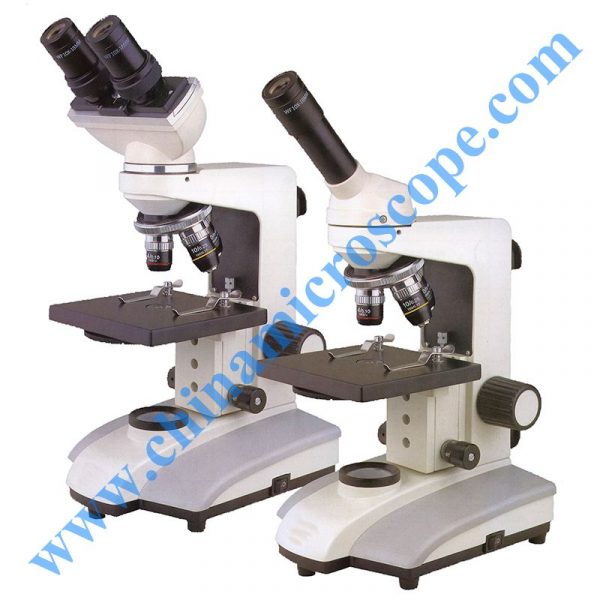

BL leica type biological Microscope
