Standard Configuration
| Model | XSL-12A | XSL-12B | XSL-12C | |
| Eyepiece | Wide field WF10X(¦µ18mm) | |||
| Objective | Achromatic 4X/0.10 | Achromatic 4X/0.10 | Achromatic 4X/0.10 | |
| Achromatic 10X/0.25 | Achromatic 10X/0.25 | Achromatic 10X/0.25 | ||
| Achromatic
40X/0.65(Spring) |
Achromatic
40X/0.65(Spring) |
Achromatic
40X/0.65(Spring) |
||
| Achromatic
100X/1.25(Spring, oil) |
Achromatic 100X/1.25
(Spring, oil) |
Achromatic
100X/1.25(Spring, oil) |
||
| Eyepiece tube | Binocular(Inclination of 30˚) | |||
| Focus system
|
Coaxial coarse/fine
focus system. Minimum division of fine focusing: 2μm |
Coaxial coarse/fine focus
minimum division of fine focusing: 2μm, with tensional adjustable and up stop, base bearing black plastic cap |
Coaxial coarse/fine
focus with tensional adjustable and up stop, minimum division of fine focusing: 2μm. |
|
| Nosepiece | Quadruple(Backward ball bearing inner locating) | |||
| Stage | Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm) | |||
| Abbe condenser | N.A.1.25 Rack & pinion adjustable | |||
| Filter | Blue filter | |||
| Frosted filter | ||||
| Collector | For halogen lamp | For halogen lamp | For halogen lamp | |
| Light source | 6V 20W, Halogen lamp with brightness control | |||

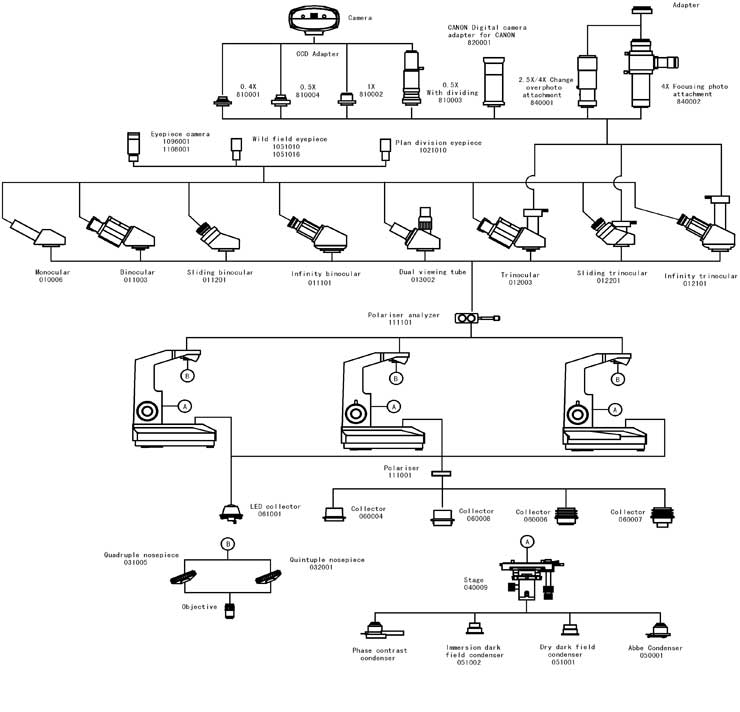

Optional accessories
| Name | Sort/Technique parameter | |
| Eyepiece | Wide field WF16X(11mm) | |
| Dividing 10X(18mm) 0.1mm/Div | ||
| Objective | Semi-plan achromatic SP 4X/0.10 | |
| Semi-plan achromatic SP 10X/0.25 | ||
| Semi-plan achromatic SP 20X/0.40 | ||
| Semi-plan achromatic SP 40X/0.65(Spring) | ||
| Semi-plan achromatic SP 100X/1.25(Spring, oil) | ||
| Eyepiece tube | Monocular(Inclination of 30˚) | |
| Binocular, Sliding(Inclination of 45˚) | ||
| Trinocular,Sliding(Inclination of 45˚) | ||
| Trinocular(Inclination of 30˚) | ||
| Dual viewing tube(Inclination of 30˚) | ||
| Nosepiece | Quintuple (Backward ball bearing inner locating) | |
| Filter | Green filter | |
| Yellow filter | ||
| Light source | LED Collector | Bright and white light |
| Condenser | Dark field | Dry |
| Immersion | ||
| Phase contrast unit | Eyepiece | Centering telescope |
| Objectives | Phase contrast achromatic 10X/0.25 PHP | |
| Phase contrast achromatic 20X/0.40 PHP(Spring) | ||
| Phase contrast achromatic 40X/0.65 PHP(Spring) | ||
| Phase contrast achromatic 100X/1.25 PHP(Spring, oil) | ||
| (PHP) Turnplate phase contrast condenser | ||
| (PHP) Turnplate phase contrast condenser | ||
| Flashboard phase contrast condenser | ||
| Pull board phase contrast condenser | ||
| Infinity optical system | Eyepiece tube | Binocular,(Inclination of 30˚) |
| Trinocular(Inclination of 30˚) | ||
| Eyepiece | Centering telescope | |
| Objectives | Infinity semi-plan achromatic 4X/0.10 | |
| Infinity semi-plan achromatic 10X/0.25 | ||
| Infinity semi-plan achromatic 40X/0.65(Spring) | ||
| Infinity semi-plan achromatic 100X/1.25(Spring, oil) | ||
| Infinity phase contrast achromatic 10X/0.25 PHP | ||
| Infinity phase contrast achromatic 20X/0.40 PHP(Spring) | ||
| Infinity phase contrast achromatic 40X/0.65 PHP(Spring) | ||
| Infinity phase contrast achromatic 100X/1.25 PHP(Spring, Oil) | ||
| CCD adapter | 0.4X | |
| 0.5X | ||
| 1X | ||
| 0.5X with dividing 0.1mm/Div | ||
| Camera | DV-1(With USB & video output) | |
| DV-2(With USB output) | ||
| DV-3(With video output) | ||
| Photography | USB Output | |
| VIDEO Output | ||
| Digital camera adapter | CANON Digital camera adapter(A610,A620,A630,A640) | |
| Photograph unit | MD Adapter | |
| PK Adapter | ||
| 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | ||
| 4X Focusing photograph attachment | ||
| Facility polarize | Polarizer(360° rotatable stage) | |
| Analyzer | ||
| Adapter(For
LED illumination) |
Input: 230V¡«50/60HZ Output: 9V 500mA | |
| Input: 110V¡«50/60HZ Output: 9V 500mA | ||
