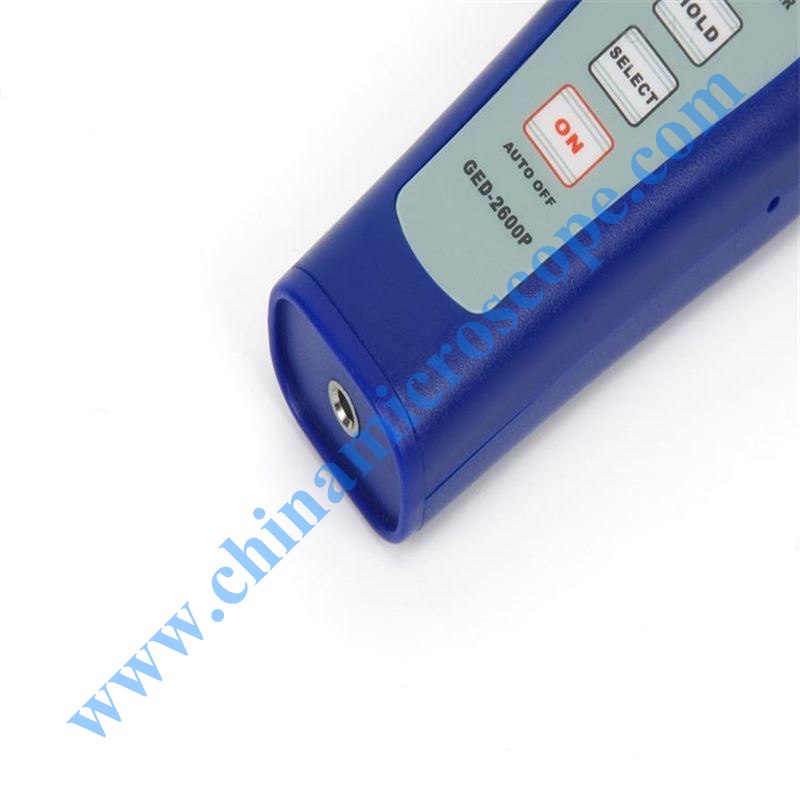

GED-2600P Engine Tachometer
It is a non-contacting type tachometer which easily measures the rotational speed just by bringing the detection head close to the high-tension wires of gasoline engines.
Features
* Non-contacting detection enables an easy and safe measurement.
* It assures an accurate measurement because the signal indicator shows how the signal is captured.
* Accurate rotational speed can be obtained in 0.1 or 1 r / min unit.

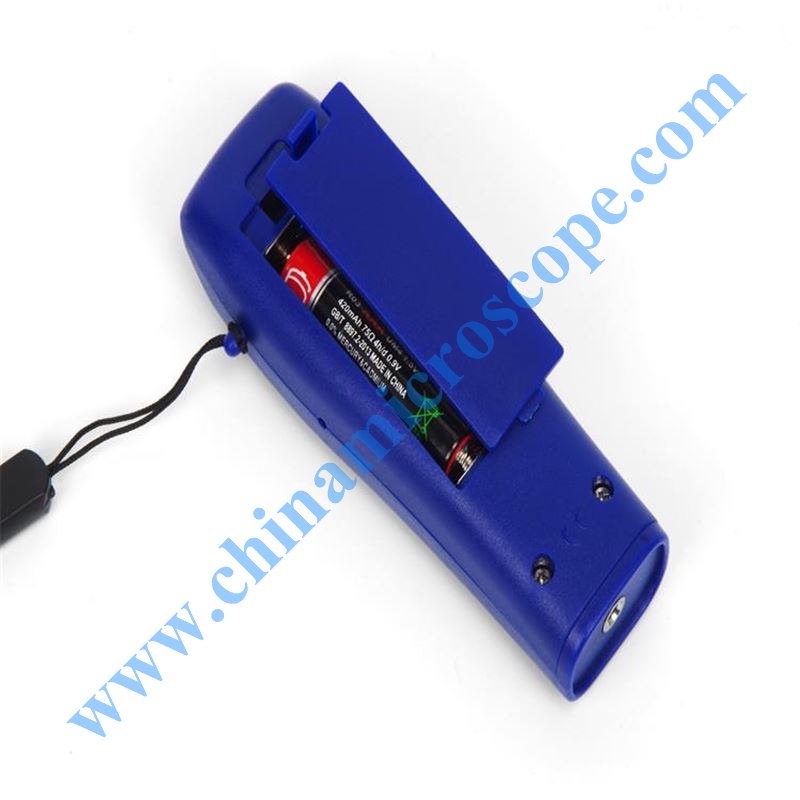

* When the battery runs out or the voltage drops, the battery signal at the lower left corner of the display panel lights up.
* The four-digit LCD is suitable for out-door meaurement.
* Compact, light weight and easy-to-carry, enabling one-hand measurement.
| Model | GED-2600 | GED-2600P | |
| Application | 2-circle | 1,2,3,4-cylinder | |
| 4-circle | 1,2,3,4,5,6,8-cylinder | ||
| Range | Engine | 100~20,000 r/min | 100~9,999 r/min |
| Laser | 2.5~99,999 r/min | —— | |
| Detection
Meehod |
Engine | Electromagnetic Induction | |
| Laser | Reflection | —— | |
| Detection
Distance |
Engine | 10~200 mm | —— |
| Laser | 50~500 mm,Max 2 m | —— | |
| Resolution | 0.1/1 | ||
| Accuracy | ±(0.05%n+1d) | ||
| Memory | Max / Min / Last Value | —— | |
| Operating Condition | Temperature:0~50ºC | ||
| Humidity:<85%RH | |||
| Power Supply | 4×1.5V AA(UM-3) | 2×1.5V AAA(UM-4) | |
| Dimensions | 178x68x39 mm | 97x35x25 mm | |
| Weight | 164g(Without Batteries) | 65g(Without Batteries) | |
| Standard Accessories | Main Unit | ||
| Reflective Tape 350mm | —— | ||
| External Antenna | —— | ||
| Carrying Case(B01) | Leather Bag(B07) | ||
| Operation Manual | |||
