GM-06 60°gloss meter
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers, Checking masonry and washers, Checking building exteriors.
Features
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Built-in lithium ion rechargeable battery.

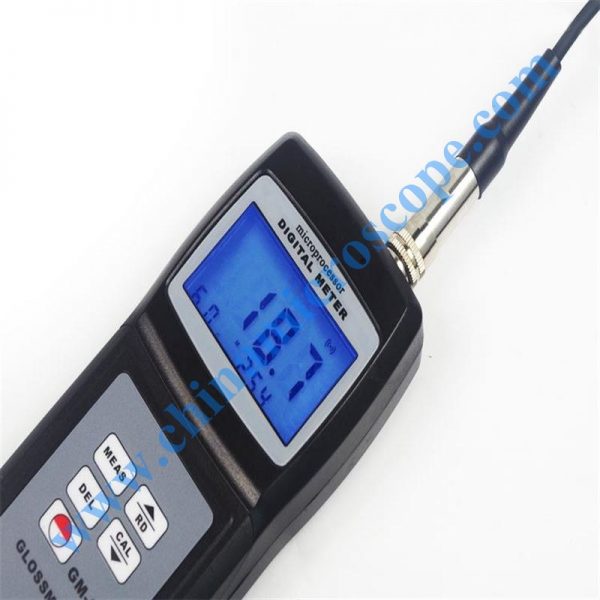

* Backlight display, suitable for low light environment.

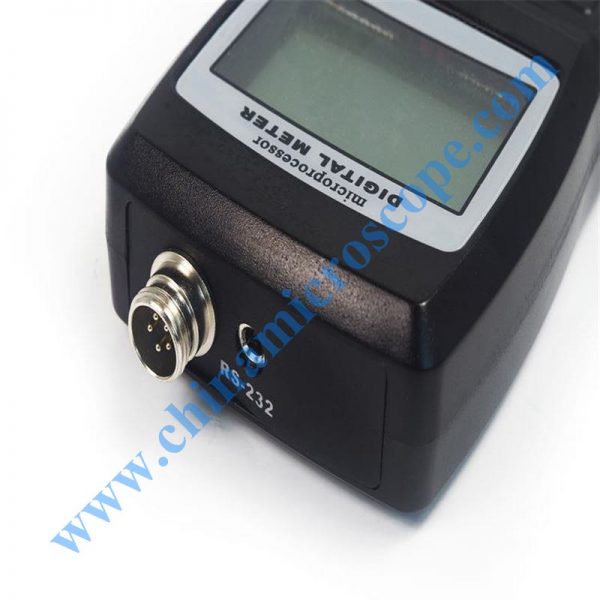

* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Material And Angle Selection Recommended
20°: High gloss paint, printing ink, plastics, paper and other materials.
60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
85°: Low gloss paint, camouflage coatings materials.
Specifications
| Display | 4 Digits Backlit LCD |
| Measuring Angle | 60º |
| Range | 0.1GU~200 GU |
| Gloss Units | GU |
| Accuracy | ±1.0GU |
| Resoltuion | 0.1 |
| Repeatability | ±0.5GU |
| Measuring Area | 7mmx14mm（Ellipse） |
| Data Memorized | 254 Groups |
| Operating Conditions | Temp:0ºC~40ºC Humidity:<85%RH |
| Power Supply | 4×1.5V AAA Size(UM-4)Battery |
| Dimensions | Main Unit:156mmx67mmx28mm |
| Probe:58mmx28mmx108mm | |
| Weight | 190g(Not Including Batteries) |
| Stabdard Accessories | Main Unit |
| Holder with Calibration Standard | |

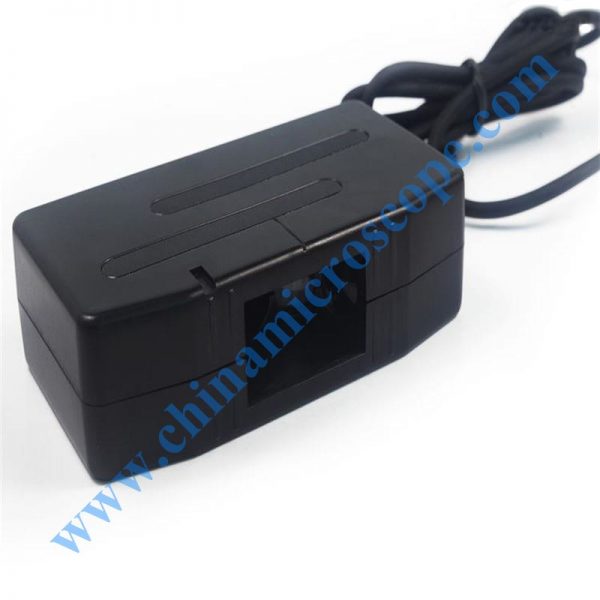

| External Probe | |
| Optical Cleaning Cloth | |
| Carrying Case(B04) | |
| Operation Manual |
