MIC-RX60 laser confocal microscope

IBE-2000 inverted fluorsecent microscope

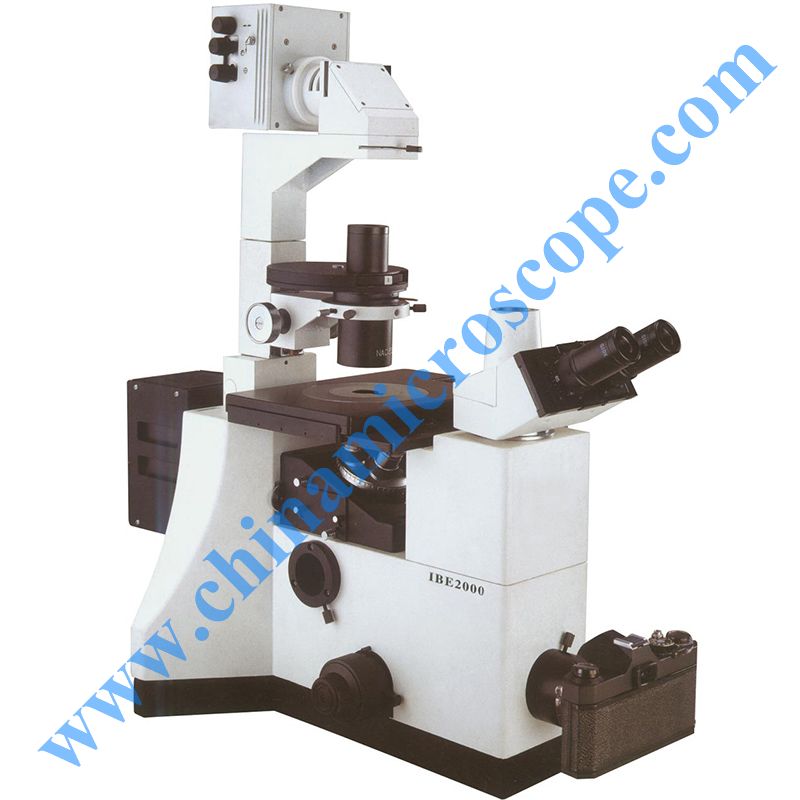

MIC TECH IBE-2000 inverted fluorsecent biological microscope

Finite/Infinite  Clinical microscope

Inverted fluorsecent biological microscope

Research level inverted microscope

ENQUIRY!
分类： , , , , , 标签： , , ,
描述
Order Item Configuration
IBE2000 IBE2003 Order No
1 Wide field eyepiece 10× F.N=20 ●● ●● EW10
2 16× F.N=14 ●● ●● EW16
3 Long working distance

plan achromatic objectives

 2.5× ○ ○ B-OLPr2.5
4 4× ○ ○ B-OLPr4
5 10× WD=7.9 ● ● B-OLPr10
6 25× WD=5 ● ● B-OLPr25
7 40× WD=3 ● ● B-OLPr40
8 Long working distance

plan achromatic positive

phase contrast objectives

 10× WD=7.9 ● ● B-OLPpr10
9 25× WD=5 ● ● B-OLPpr25
10 40× WD=3 ● ● B-OLPpr40
11 Long working distance

plan achromatic negative

phase contrast objectives

 10× WD=7.9 ○ ○ B-OLPnr10
12 25× WD=5 ○ ○ B-OLPnr25
13 40× WD=3 ○ ○ B-OLPnr40
14 Long working distance

phase contrast condenser

 Mode Ⅰ,W.D=21.4, NA0.55 ○ ○ C13
15 Mode II, W.D=32, NA0.4 ○ ○ C14
16 Mode III, W.D=55, NA0.3 ● ● C15
17 Centering eyepiece 20×centering eyepiece ● ● Eci20
18 Reticule eyepiece 10×plan reticule eyepiece ● ● Epr10b
19 Body IBE2000 main body ● ●
20 Eyepiece unit Binocular (Trinocular) unit ● ● 18X.30
21 Photographic equipment Photographic adapter ● ● MP04
22 35mm SLR camera, shutter release ● ●
23 Digital camera adapter ○ ○ DV02
24 CCTV equipment Video camera adapter ○ ○ TV04
25 “C ”mount adapter ○ ○ CU43-2
26 Culture bottle and vessel Culture bottle and vessel ● ● 7X.5.1/7X.5.2
27 Incidence fluorescence equipment EPI-fluorescence illuminator  (UV, V, B, G) ● FD05
28 EPI-fluorescence illuminator (B,G) ● ● FD05a
29 Centering objective ● ● CU61
30 100W lamp house ● ● LH08
31 DC 100W power supply unit ● ● LS14
32 Micrometer 0.01mm section ● ●
其他信息
重量 8 公斤
尺寸 45 × 45 × 30 厘米
MIC TECH

MEKEY
microscope function

Infinite, finite, Compound
Shipping & Delivery

EX-WORK price

ALL PRICE MIC TECH QUOTED IS EX-WORK PRICE.

OTHER PRICE INCLUDING SHIPPING WILL BE QUOTED UPON REQUEST.

FAS CPT CIP FCA FOB CFR CIF DPT DIP DDP

  • ALL TERMS OF SHIPPING IS NEGOTIABLE WITH MIC TECH
  • ALL SHIPPING METHODS IS JUST ON YOUR REQUEST
  • YOUR SATISFACTION IS OUR GOAL
