ST102 0.67-4.5X stereo microscope

LBX 0.75-5X stereo microscope

LBX stereo microscope 0.75X-5.0X, zoom ratio: 1:6.7

1、Sharp stereo erect image over a wide field of view.
2、45°inclined and 360°rotatable binocular head.
3、 The interpupillary distance is between 55mm-75mm,Both ocular-tube with diopter adjustment ±5dp
4、Power supply 100V～240V.
5、CE approval.
6、Brightness can be adjusted

ENQUIRY!
分类： , , 标签： , , ,
描述

Outfit

Viewing head  inclined at 45º
 Zoom ratio 1：6.7
 Eyepiece HWF10X/23mm
 Objective 0.75x-5.0x
Magnification 7.5x-50x
Interpupillary distance 55-75mm
Working distance 113mm
Working stage Frosted glass & White/Black Working stage
Height of Pillar 230 mm
Travel distance 60 mm
Diameter of Scope Holder Φ83mm

Optical data

Objective Working Distance (mm) Eyepiece Eyepiece(Option)
HWF10X(Φ23mm) HWF15X(Φ15mm) HWF20X(Φ14.5mm)
Optical Magnification Field of view( mm) Optical Magnification Field of view( mm) Optical Magnification Field of view( mm)
0.75 X 113 7.5X 30.7 11.3 X 20 15 X 19.3
1 X 10X 23 15 X 15 20 X 14.5
2 X 20X 11.5 30 X 7.5 40 X 7.3
3 X 30X 7.7 45 X 5 60 X 4.8
4 X 40X 5.8 60 X 3.8 80 X 3.6
5 X 50X 4.6 75 X 3 100 X 2.9

SPECIFICATION  LIST

Specification Model

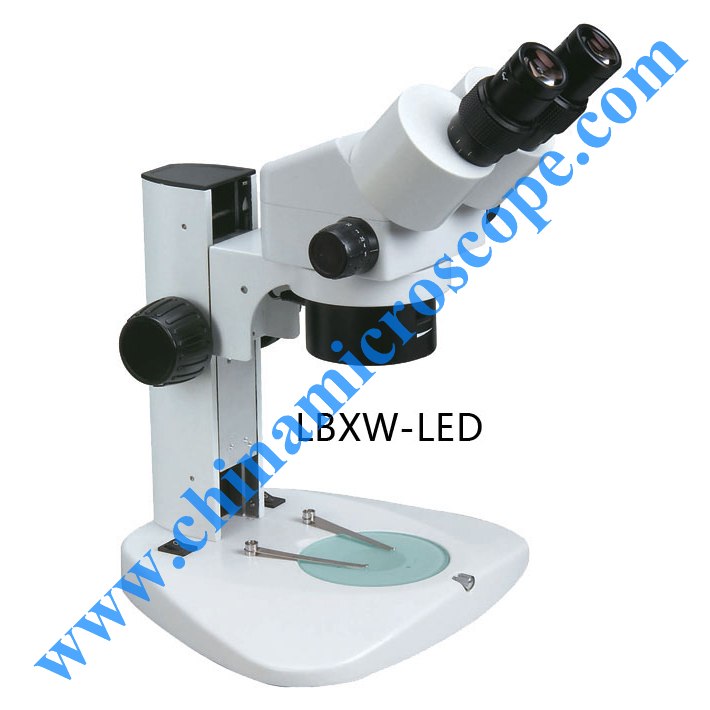

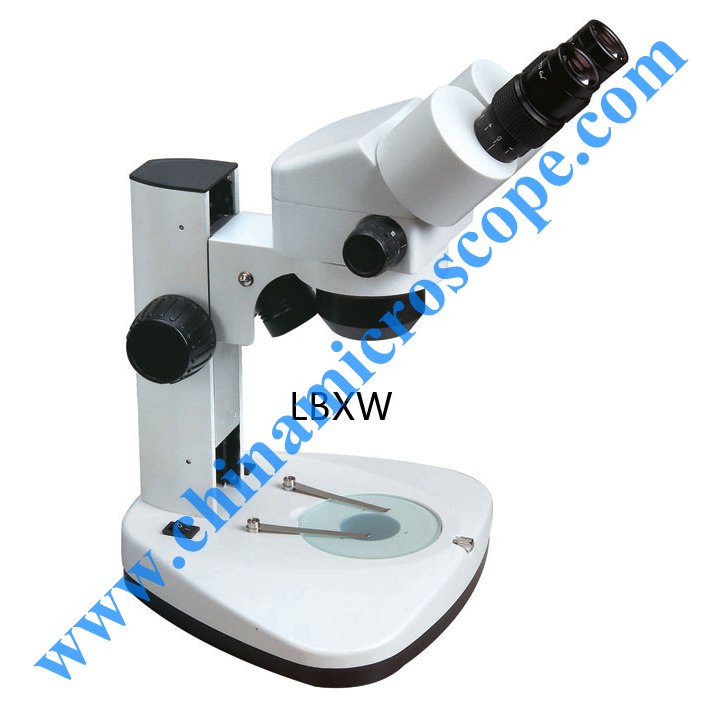

Parts Specification LBX-LED LBXY LBXW LBXYH LBXWH LBXYH-3 LBXWH-3 LBX-P
Eyepiece HWF10X ● ● ● ● ● ● ● ●
HWF15X ○ ○ ○ ○ ○ ○ ○ ○
HWF20X ○ ○ ○ ○ ○ ○ ○ ○
HWF25X ○ ○ ○ ○ ○ ○ ○ ○
Binocular LBX ●  ● ● ● ● ●
Trinocular LBX-3 ○ ○ ○ ○ ○  ● ● ○
Auxiliary
Objective		 0.5Xφ46mm//205mm ○ ○ ○ ○ ○  ○  ○ ○
0.7Xφ33mm/150mm ○ ○ ○ ○ ○ ○ ○ ○
1.5X/φ15mm/61mm ○ ○ ○ ○ ○ ○ ○ ○
2X/φ12mm/43mm ○ ○ ○ ○ ○ ○ ○ ○
Stand Y ● ● ●
W ● ● ● ●
P ●
TD-1 ○ ○ ○ ○ ○ ○ ○ ○
TD-2 ○ ○ ○ ○ ○ ○ ○ ○
Photographic
device		 2X/PH ○ ○ ○ ○ ○ ○ ○ ○
1X/HTV ○ ○ ○ ○ ○ ○ ○ ○
1.5X/CTV ○ ○ ○ ○ ○ ○ ○ ○
0.5X/CTV ○ ○ ○ ○ ○ ○ ○ ○
Jewel Tweezer I/II ○ ○ ○ ○ ○ ○ ○ ○
Darkfield Attachment ASC ○ ○ ○ ○ ○ ○ ○ ○
Incident
Light		 Bowl Shape Halogen Lamp12V10W ● ○ ● ○
Transmitted
Light		 Halogen Lamp12V10W ● ○ ● ○
LED Incident Light 3W       ● ● ○  ● ○ ●
LED
Transmitted Light		 1W  ●       ● ● ○  ● ○ ●
Ring light RFL ○
The built-in
LED lamp		 30X20mA ●  ●
Package styrofoam ＋cardboard box ●       ● ● ● ● ● ● ●

●Standard  ○ Optional
