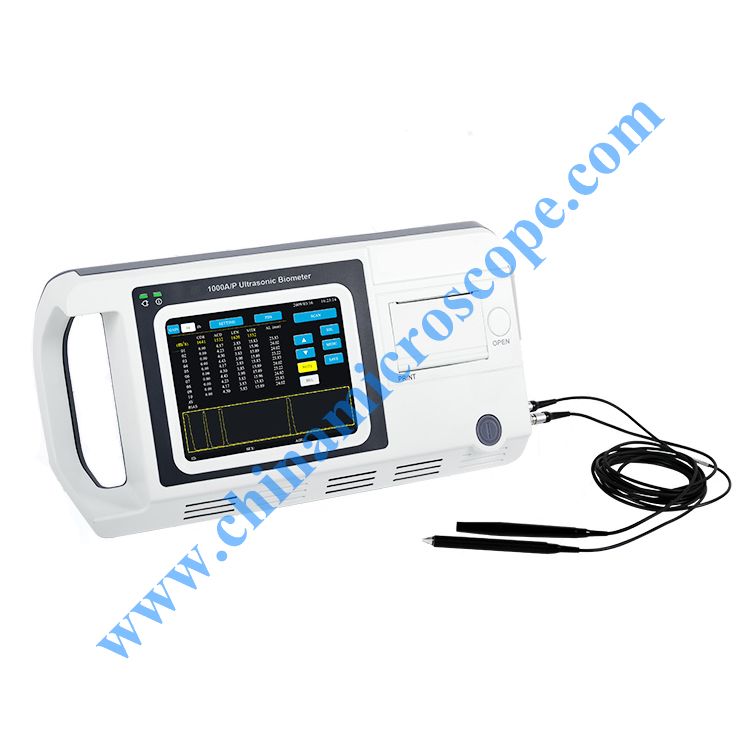

MIC-1000AP ophthalmology ultrasonic biometer/pachymeter

MIC-1000AP ophthalmology ultrasonic biometer/pachymeter

A-Scan

Ultrasonic frequency: 10MHz

Display resolution: 0.01mm

Total gain of receiver: ≥100dB

Adjustable gain scope: 0～50dB

Measuring scope (AL): 15 mm～40mm

Measuring accuracy: ≤±0.05mm

Measuring Parameter: ACD, LENS, VITR and AL

Measuring mode: automatic mode or manual mode can be selectable. Automatic mode for Normal, Cataract and Aphakic mode

Measuring method: contact and immersion, can be selectable

IOL calculation: SRK/T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS, and IOL calculation

formula after corneal refractive surgery: HISTORY DERIVED, DOUBLE-K/SRK-T, REFRACTION DERIVED, ROSA and SHAMMAS.

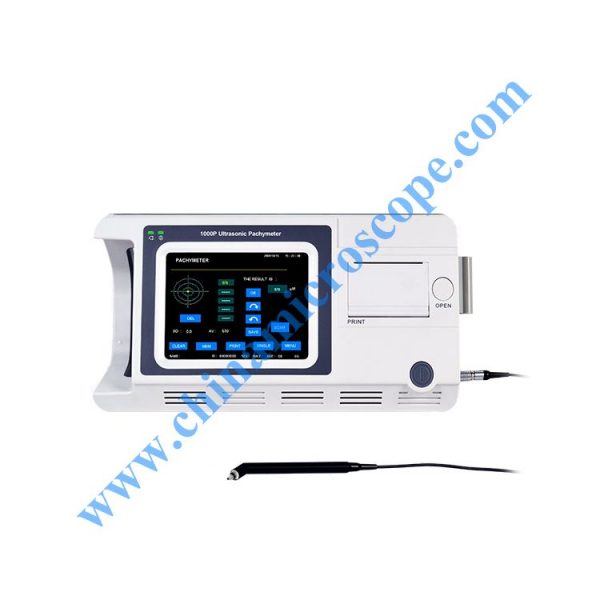

Pachymeter

Probe Frequency: 15-20MHz

Display Resolution:  1μm

Biometry Accuracy:  ≤±5μm

Measuring Scope:  230-1200μm
