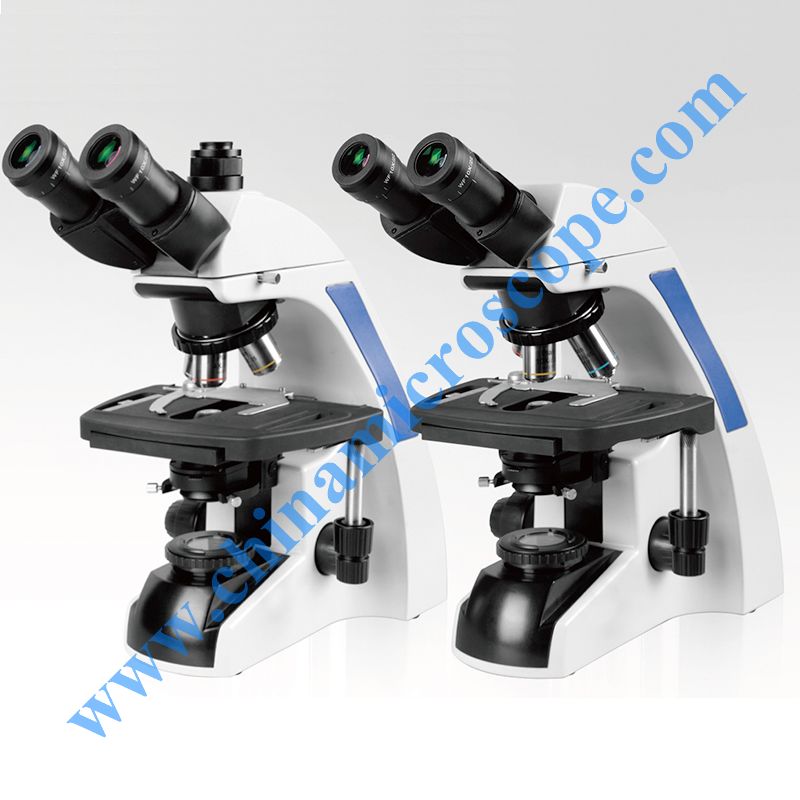

MIC-1000i newly designed compound lab microscope, high quality, super big stage, Kohler illumination, all kinds of top accessory to fixed to the top level biological microscope.
| Item | MIC-1000i | Order No | ||||||
| MIC-1000i Frame, One-piece construction from arm to base. | ● | MIC-1000i | ||||||
| UCIS Infinity Independent Achromatic Optical Design | ● | |||||||
| 110/220V，50/60Hz | ● | |||||||
| Coaxial coarse and fine focusing knob, height adjustable. | ● | |||||||
| Condenser Adjust Unit | ● | |||||||
| Head | Binocular Tube, Interpupillary distance 52-76mm, 30°inclined,360° rotatable, double diopter adjustable. | ● | M1002i | |||||

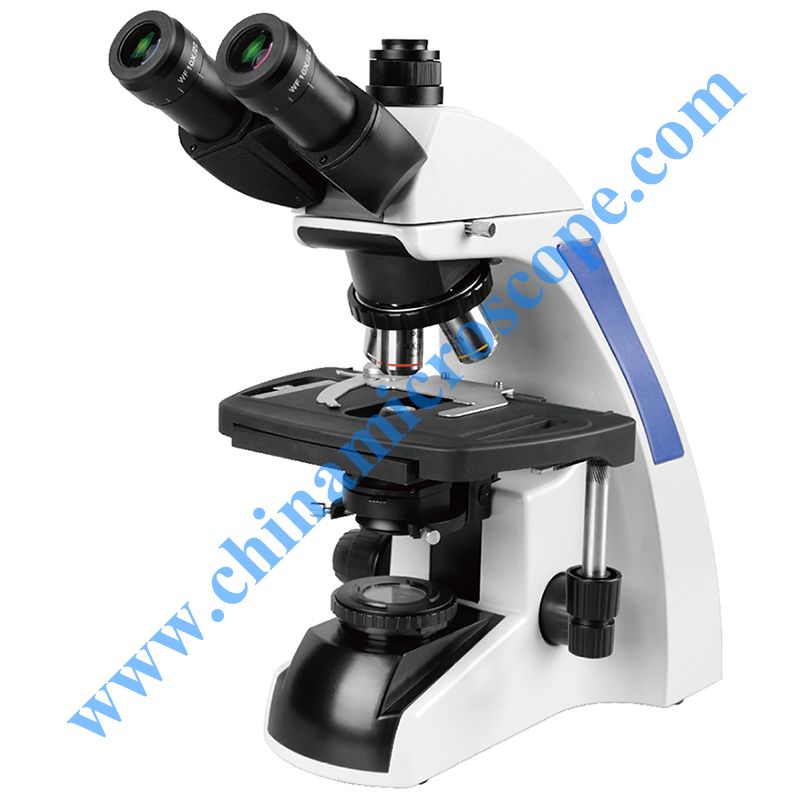

| Trinocular Tube, Interpupillary distance 52-76mm,30°inclined, 360° rotatable double diopter adjustable. | ○ | M1003i | ||||||
| Plan
Eyepiece |
WF10X/20, High eye-point up to 21mm. | ●● | E1020PA | |||||
| WF10X/22, High eye-point up to 21mm. | ○○ | E1022PC | ||||||
| WF16X/14 | ○○ | E1614WB | ||||||
| WF10X/20(Pointer), High eye-point up to 21mm. | ○ | E1020GA | ||||||
| WF10X/22(Pointer), High eye-point up to 21mm. | ○ | E1022GC | ||||||
| Reticule Eyepiece: CROSSWF10X/20 | ○ | E1020RA | ||||||
| Reticule Eyepiece: CROSSWF10X/22 | ○ | E1022RC | ||||||
| Centering Telescope | CTE | ○ | CTE | |||||
| Infinity
Plan Objectives |
Plan 2X/0.06 ∞/-, WD3.55 | ○ | WB-P4A | |||||
| Plan 4X/0.10 ∞/-,WD12.31 | ● | WB-P4C | ||||||
| Plan 10X/0.25 ∞/0.17,WD5.03 | ● | WB-P10C | ||||||
| Plan 20X/0.40 ∞/0.17,WD2.71 | ○ | WB-P20C | ||||||
| Plan 40X/0.65 ∞/0.17, WD0.72 (Spring) | ● | WB-P40C | ||||||
| Plan 60X/0.80 ∞/0.17, WD0.69 (Spring) | ○ | WB-P60C | ||||||
| Plan 100X/1.25 ∞/0.17, WD0.17 (Spring,Oil) | ● | WB-P100C | ||||||
| Plan 100X/1.0 ∞/0.17, WD 0.137 (water objective) | ○ | WB-P100CW | ||||||
| Plan 100X/0.8 ∞/0.17, WD 0.148 (dry objective) | ○ | WB-P100CD | ||||||
| Infinity
Plan Phase- Contrast (positive or negative) Objectives |
PH Plan 10X/0.25 ∞/0.17,WD5.03 | ○ | WB-PPHp10C/WB-PPHn10C | |||||
| PH Plan 20X/0.40 ∞/0.17,WD2.71 | ○ | WB-PPHp20C/WB-PPHn20C | ||||||
| PH Plan 40X/0.65 ∞/0.17,WD0.72
(Spring) |
○ | WB-PPHp40C/WB-PPHn40C | ||||||
| PH Plan 60X/0.80 ∞/0.17, WD0.69
(Spring) |
○ | WB-PPHp60C/WB-PPHn60C | ||||||
| PH Plan 100X/1.25 ∞/0.17,WD0.17 (Spring,Oil) | ○ | WB-PPHp100C/WB-PPHn100C | ||||||
| Phase-
Contrast Slide |
10X PH | ○ | PCB-PPH10C | |||||
| 20X PH | ○ | PCB-PPH20C | ||||||
| 40X PH | ○ | PCB-PPH40C | ||||||
| 60X PH | ○ | PCB-PPH60C | ||||||
| 100X PH | ○ | PCB-PPH100C | ||||||

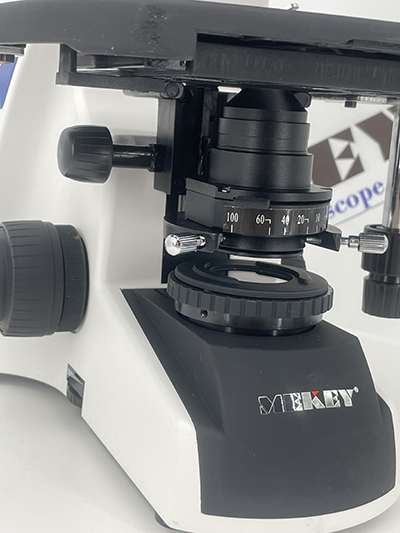

| Condenser | Multi-Purpose Phase-contrast Condenser:
NA:1.25,Phase-contrast observation from 10X to 100X and Dark-field observation from 10X to 40X is allowed |
○ | JG40 | |||||
| Abbe condenser: NA 1.25, with iris
diaphragm, with socket to accommodate PH-slide. Condenser center adjustable, color-coded diaphragm scale markings correspondent with the objectives of different powers. |
● | JG3 | ||||||
| Dark Condenser(Dry) | ○ | JG10 | ||||||

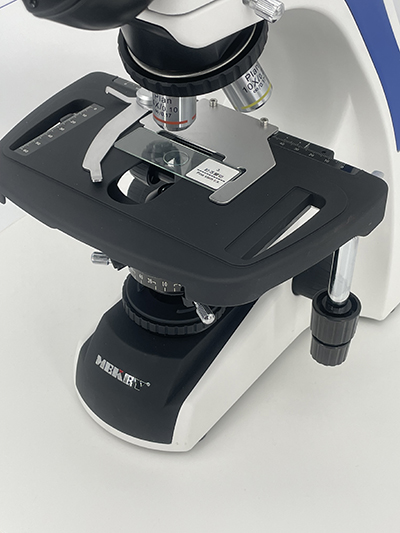

| Stage | Double Mechanical Stage: super big 216x150mm platform, with X/Y travel of 75x55mm by low-
Positioned X/Y coaxial control knob, with scale mark and specimen-slide clip, enough space to hold 2 specimen-slide. |
● | ZT2 | |||||
| Rackless Mechanical Stage: 179(205)x
175mm platform, with X/Y travel of 75x50mm by low-positioned X/Y coaxial control knob, with scale mark and specimen-slide clip, enough space to hold 2 specimen-slide. |
○ | ZT2A | ||||||
| Revolving
Nosepiece |
quadruple, inward facing. | ● | ZQ480 | |||||
| quintuple, inward facing | ○ | ZQ580 | ||||||
| Illumination Kohler, With field diaphragm | ● | KL3A | ||||||

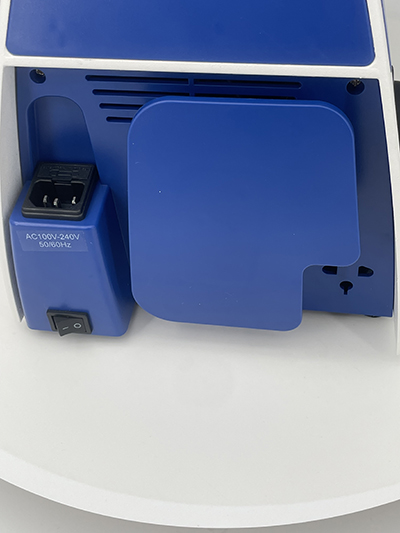

| Electrical
Parts |
For 6V/20W Halogen Bulb： Input: 100-
240V～0.5A, 47-63Hz, Output:6V 3.4A, Fuse:3.15A, 250V, F ф5×20mm, Halogen Bulb Socket: G4 |
○ | DQ3 | |||||
| For 6V/30WHalogen Bulb： Input: 100-
240V～0.5A, 47-63Hz, Output:6V 3.4A, Fuse:3.15A, 250V, F ф5×20mm, Halogen Bulb Socket: G4 |
○ | DQ2A | ||||||
| For 3W LED Bulb | ● | DQL1 | ||||||
| C-Mount | 1X | ○ | SX3 | |||||
| 0.5X | ○ | SX2 | ||||||
| 0.25X | ○ | SX4 | ||||||

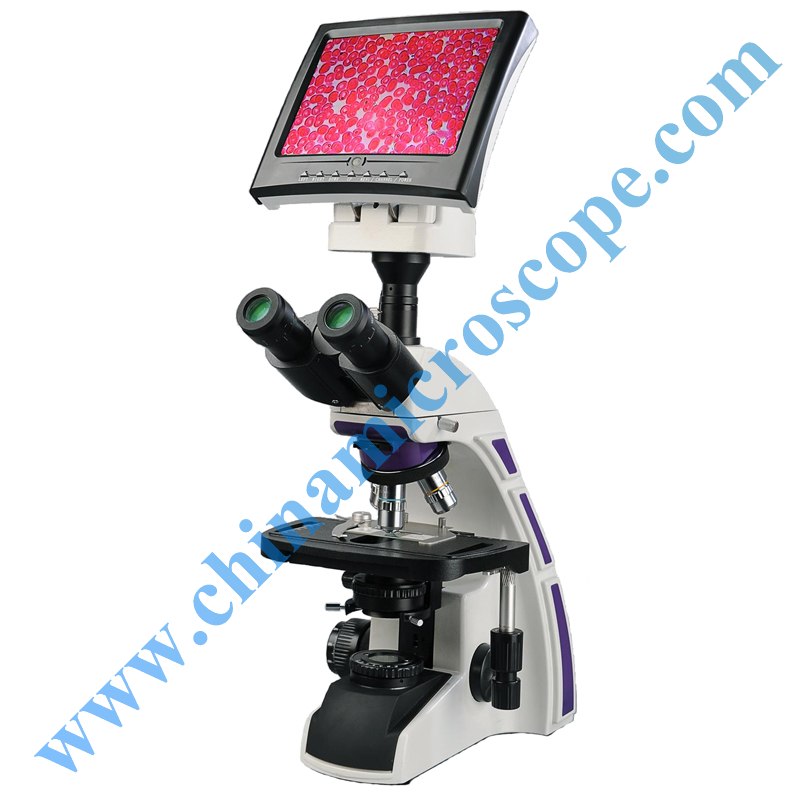

| Digital Camera Adapter | SD2 | ○ | SD2 | |||||
| Digital
Camera Joint |
(Please advice your digital
camera model in advance) |
○ | SDK | |||||
| Filter | Blue | ● | LA2-0011 | |||||
| Green | ● | LU2-0011 | ||||||
| Yellow | ● | LH2-0011 | ||||||
| Grass Glass | ○ | LB2-0011 | ||||||
| Filter
Holder |
Filter Holder: (Attached to the Kohler)
for more than one filter. |
● | LA1-0071 | |||||
| Polarization
kits |
Analyzer Slide | ○ | PQ1 | |||||
| Polarizer Slide | ○ | PY1 | ||||||
| Reflected
Fluorescence Attachment |
DC Hg Florescence Lamp house 100W | ○ | DYX3 | |||||
| Mercury lamp 100W(Made in China) | ○ | BZ-0022H | ||||||
| Mercury lamp 100W(Osram) | ○ | BZ0022I | ||||||
| Filter Turret | ○ | LSS2 & LST1 | ||||||
| UV Shield | ○ | LST1-5000 | ||||||
| DC Hg Power Source House 100W | ○ | DYX3 | ||||||
| UV Excitation Filter (I Grade) | ○ | YGMKI-UV | ||||||
| V Excitation Filter (I-Grade) | ○ | YGMKI-V | ||||||
| B Excitation Filter (I-Grade) | ○ | YGMKI-B | ||||||
| G Excitation Filter (I-Grade) | ○ | YGMKI-G | ||||||
| UV Excitation Filter (C-Grade) | ○ | YGMKC-UV | ||||||
| V Excitation Filter (C-Grade) | ○ | YGMKC-V | ||||||
| B Excitation Filter (C-Grade) | ○ | YGMKC-B | ||||||
| G Excitation Filter (C-Grade) | ○ | YGMKC-G | ||||||
| Illumination
Bulb |
6V20W Osram Halogen Bulb | ○ | BZ-0022A | |||||
| 6V30W Osram Halogen Bulb | ○ | BZ-0022B | ||||||
| 3W LED Bulb (out fixed Kohler illumination) | ● | DQL1-1000 | ||||||
| Immerse Oil | 8ml | ● | BZ-0027 | |||||
| Allen Screw Driver | φ2mm | ● | BZ2-0018 | |||||
| Power Line | 1.8m, CE certified | ● | BZ-0021 | |||||
| Package | Inner package: foam, plastic bag;
Out Package: Carton |
● | BZ3-0011A | |||||
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
