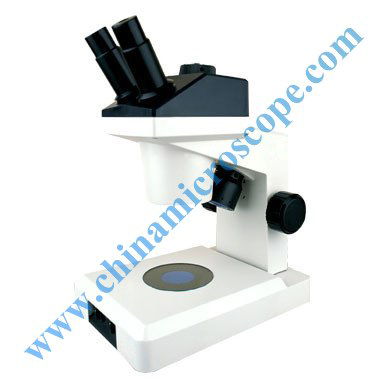

    MIC-XTZ 0.7-3X stereo microscope
    MIC-XTZ 0.7-3X stereo microscope
    Back to products
    Next product

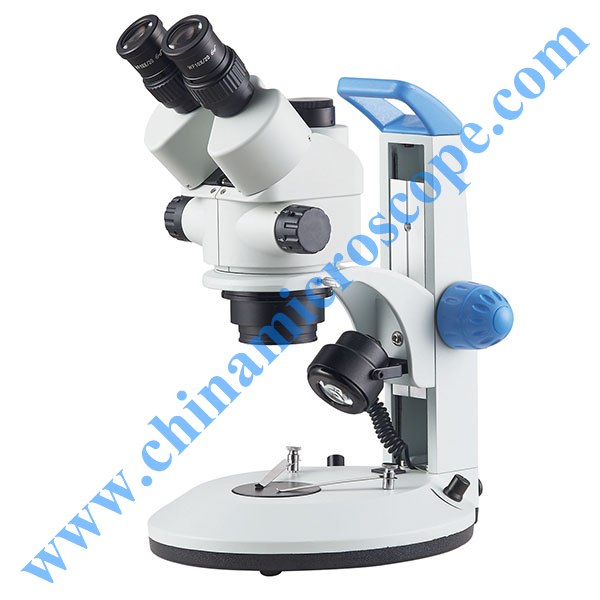

    MIC-M4 0.7-4.5X stereo microscope
    MIC-M4 0.7-4.5X stereo microscope

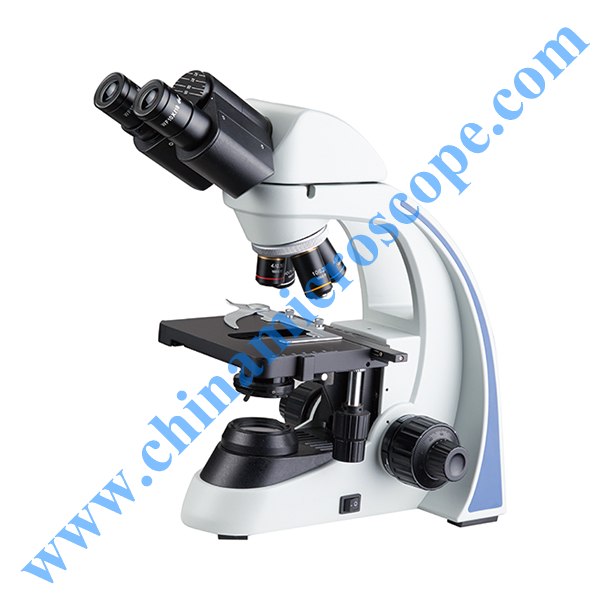

    MIC-G20 biological Microscope

    MIC-G20 biological Microscope serials biological microscope

    This serials microscope is newly designed clinical use microscope. Sharp image, good quality, widely used in Chinese schools and laboratories.

    ENQUIRY!
    分类： , , 标签： ,
    描述
    Model MIC-G20
    Optical System Finite Color Corrected Optical System
    Viewing Head 30°inclined binocular viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable
    Eyepiece High eye point wide filed WF10x/18mm, or plan eyepiece PL10X/18mm(with pointer for option)
    Objective Achromatic objective 4X/10X/40X/100X
    Plan achromatic objective 4X/10X/20X/40X/100X
    Nosepiece Quadruple nosepiece
    Quintuple nosepiece
    Frame Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 28mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device
    Stage 140mm*132mm double layers stage, moving range: 76mm*50mm, precision: 0.1mm
    Condenser N.A.1.25 ABBE Condenser and Iris Diaphragm
    Illumination Wide voltage 100V~240V, intensity adjustable by power switch, 3W LED, bulb center preset
    其他信息
    microscope function

    Infinite, finite, Compound, Dark filed, Polarizing, PH
    用户评价 (0)

    评价

    目前还没有评价

    成为第一个“MIC-G20 biological Microscope” 的评价者

    您的邮箱地址不会被公开。 必填项已用 * 标注

    Shipping & Delivery

    EX-WORK price

    ALL PRICE MIC TECH QUOTED IS EX-WORK PRICE.

    OTHER PRICE INCLUDING SHIPPING WILL BE QUOTED UPON REQUEST.

    FAS CPT CIP FCA FOB CFR CIF DPT DIP DDP

    • ALL TERMS OF SHIPPING IS NEGOTIABLE WITH MIC TECH
    • ALL SHIPPING METHODS IS JUST ON YOUR REQUEST
    • YOUR SATISFACTION IS OUR GOAL
