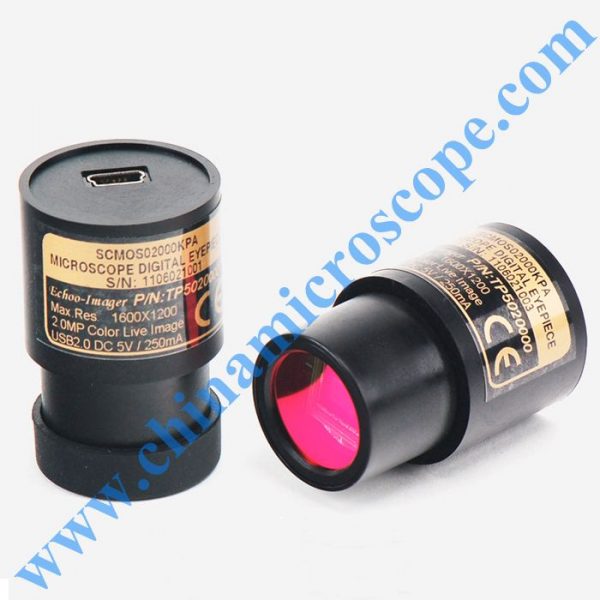

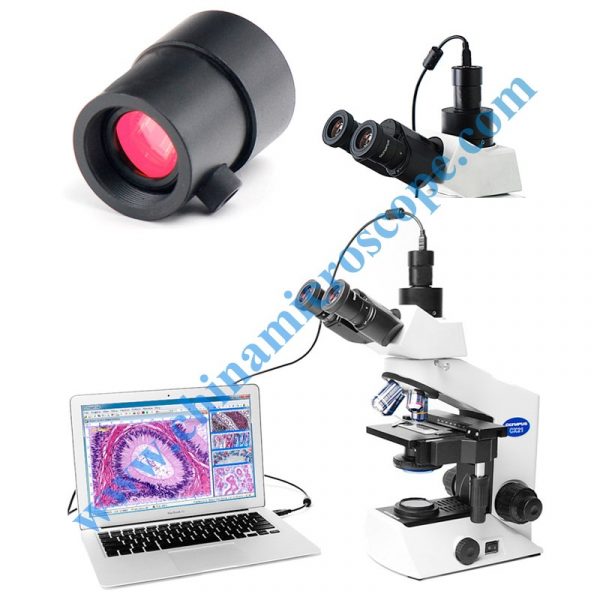

MIC-HD microscope video eyepiece

MIC-HD microscope video eyepiece

23.2MM INTERFACE

0.3MP-5MP

plastic cover or aluminum cover, customized.

ENQUIRY!
分类： , , ,
描述

0.35 M pixel cmos economic camera

HARDWARE CONFIGURATION
Image Pickup Device APTINA CMOS color
Scan Mode Progressive
Max. Resolution 640 x 480 (Approx. 350,000 Pixels)
Sensor Size (Diagonal) 1/4“ (3.58mm(H) x 2.69mm(V), Diagonal 4.48mm)
Pixel Size 5.6μm x 5.6μm
G Sensitivity 1.9v/lux-sec(550nm)
Dynamic Range 60dB
A/D Converter 8-Bit R.G.B
SN Ratio 45dB
Spectral Range 380-650nm (with IR-filter)
Video Format & Frame Rate 30fps @All Resolutions
Binning N/A
Exposure Electronic Rolling Snap(ERS), Auto
White balance Auto
Color Rendering Technique N/A
Peak Quantum Efficiency N/A
Readout Noise N/A
Extinction Ratio N/A
Smear N/A
Capture/Control API DirectShow , Twain , VFW
Recording System Still Picture and Movie
OPERATING ENVIRONMENT
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB port
SOFTWARE ENVIRONMENT
Operating System Microsoft®Windows®XP / Vista / 7 / 8 (32 & 64 bit)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
Memory:2GB or more
USB port:USB2.0 High-speed Port
Display:17″ or larger
CD-ROM



1.3 M pixel cmos economic camera

HARDWARE CONFIGURATION
Image Pickup Device APTINA CMOS color
Scan Mode Progressive
Max. Resolution 1280 x 1024 (Approx. 1,300,000 Pixels)
Sensor Size (Diagonal) 1/3“ (4.60mm(H) x 3.70mm(V), Diagonal 5.9mm)
Pixel Size 3.6μm x 3.6μm
G Sensitivity 1.0v/lux-sec(550nm)
Dynamic Range 71dB
A/D Converter 8-Bit R.G.B
SN Ratio 44dB
Spectral Range 380-650nm (with IR-filter)
Video Format & Frame Rate 7.5fps @1280 x 1024, 12.5fps @1024 x 768, 800 x 600, 30fps @Other Resolutions
Binning N/A
Exposure Electronic Rolling Snap(ERS), Auto
White balance Auto
Color Rendering Technique N/A
Peak Quantum Efficiency N/A
Readout Noise N/A
Extinction Ratio N/A
Smear N/A
Capture/Control API DirectShow , Twain , VFW
Recording System Still Picture and Movie
OPERATING ENVIRONMENT
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB port
SOFTWARE ENVIRONMENT
Operating System Microsoft®Windows®XP / Vista / 7 / 8 (32 & 64 bit)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
Memory:2GB or more
USB port:USB2.0 High-speed Port
Display:17″ or larger
CD-ROM



2 M pixel cmos economic camera

HARDWARE CONFIGURATION
Image Pickup Device APTINA CMOS color
Scan Mode Progressive
Max. Resolution 1600 x 1200 (Approx. 2,000,000 Pixels)
Sensor Size (Diagonal) 1/3.2“ (4.73mm(H) x 3.52mm(V), Diagonal 5.90mm)
Pixel Size 2.8μm x 2.8μm
G Sensitivity 1.0v/lux-sec(550nm)
Dynamic Range 71dB
A/D Converter 8-Bit R.G.B
SN Ratio 42.3dB
Spectral Range 380-650nm (with IR-filter)
Video Format & Frame Rate 5fps @1600 x 1200, 7.5fps @1280 x 1024, 1280 x 960, 20fps @800 x 600, 30fps @ Other Resolutions
Binning N/A
Exposure Electronic Rolling Snap(ERS), Auto
White balance Auto
Color Rendering Technique N/A
Peak Quantum Efficiency N/A
Readout Noise N/A
Extinction Ratio N/A
Smear N/A
Capture/Control API DirectShow , Twain , VFW
Recording System Still Picture and Movie
OPERATING ENVIRONMENT
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB port
SOFTWARE ENVIRONMENT
Operating System Microsoft®Windows®XP / Vista / 7 / 8 (32 & 64 bit)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
Memory:2GB or more
USB port:USB2.0 High-speed Port
Display:17″ or larger
CD-ROM



3 M pixel cmos economic camera

HARDWARE CONFIGURATION
Image Pickup Device APTINA CMOS color
Scan Mode Progressive
Max. Resolution 2048 x 1536 (Approx.3,200,000 Pixels)
Sensor Size (Diagonal) 1/2.7“ (4.506mm(H) x 3.379mm(V), Diagonal 5.632mm)
Pixel Size 2.2μm x 2.2μm
G Sensitivity 1.0v/lux-sec(550nm)
Dynamic Range 61dB
A/D Converter 8-Bit R.G.B
SN Ratio 43dB
Spectral Range 380-650nm (with IR-filter)
Video Format & Frame Rate 3fps @2048 x 1536, 5fps @1600 x 1200, 7.5fps @1280 x 1024, 30fps @Other Resolutions
Binning N/A
Exposure Electronic Rolling Snap(ERS), Auto
White balance Auto
Color Rendering Technique N/A
Peak Quantum Efficiency N/A
Readout Noise N/A
Extinction Ratio N/A
Smear N/A
Capture/Control API DirectShow , Twain , VFW
Recording System Still Picture and Movie
OPERATING ENVIRONMENT
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB port
SOFTWARE ENVIRONMENT
Operating System Microsoft®Windows®XP / Vista / 7 / 8 (32 & 64 bit)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
Memory:2GB or more
USB port:USB2.0 High-speed Port
Display:17″ or larger
CD-ROM



5 M pixel cmos economic camera

HARDWARE CONFIGURATION
Image Pickup Device APTINA CMOS color
Scan Mode Progressive
Max. Resolution 2592 x 1944 (Approx.5,200,000 Pixels)
Sensor Size (Diagonal) 1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm x 2.2μm
G Sensitivity 0.53v/lux-sec(550nm)
Dynamic Range 66.5dB
A/D Converter 8-Bit R.G.B
SN Ratio 40.5dB
Spectral Range 380-650nm (with IR-filter)
Video Format & Frame Rate 2fps @2592 x 1944, 3fps @2048 x 1536, 5fps @1600 x 1200, 7.5fps @1280×1024, 30fps @Other Resolutions
Binning N/A
Exposure Electronic Rolling Snap(ERS), Auto
White balance Auto
Color Rendering Technique N/A
Peak Quantum Efficiency N/A
Readout Noise N/A
Extinction Ratio N/A
Smear N/A
Capture/Control API DirectShow , Twain , VFW
Recording System Still Picture and Movie
OPERATING ENVIRONMENT
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB port
SOFTWARE ENVIRONMENT
Operating System Microsoft®Windows®XP / Vista / 7 / 8 (32 & 64 bit)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
Memory:2GB or more
USB port:USB2.0 High-speed Port
Display:17″ or larger
CD-ROM
其他信息
microscope function

Infinite, Compound, Dark filed, Polarizing, PH, fluorescent
用户评价 (0)

评价

目前还没有评价

成为第一个“MIC-HD microscope video eyepiece” 的评价者

您的电子邮箱地址不会被公开。 必填项已用 * 标注

Shipping & Delivery

EX-WORK price

ALL PRICE MIC TECH QUOTED IS EX-WORK PRICE.

OTHER PRICE INCLUDING SHIPPING WILL BE QUOTED UPON REQUEST.

FAS CPT CIP FCA FOB CFR CIF DPT DIP DDP

  • ALL TERMS OF SHIPPING IS NEGOTIABLE WITH MIC TECH
  • ALL SHIPPING METHODS IS JUST ON YOUR REQUEST
  • YOUR SATISFACTION IS OUR GOAL
