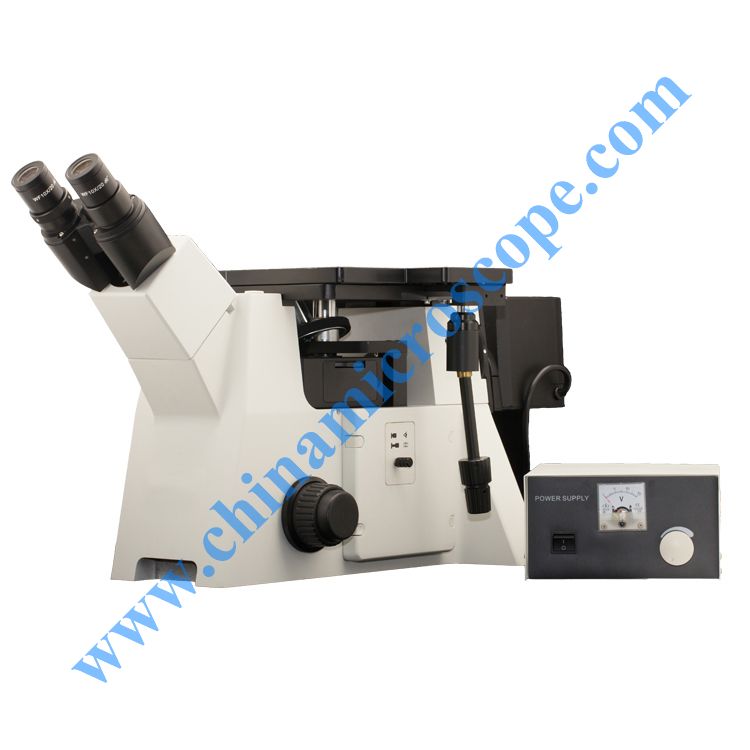

MIC-M5 inverted metallurgical microscope

UCIS Infinity Independent Achromatic Optical System

WF10x plan eyepieces, 20mm field of view, high eye point up to 21mm, WF10X20mm Reticule Eyepiece

Seidentopf binocular viewing head, inclined45º

52-75mm interpupillary distance settings ±5 Diopter adjustment

Quintuple nosepiece inward facing with positive click stops

Infinity long work distance plan Achromatic 10x, 20x, 40x and 80x objectives

Right hand controls, low position, Mechanical Stage, Size: 350mm×208mm, Movement Range: 50mmX50mm

Coaxial coarse and fine focus mechanism with markings on fine focus knobs. Fine focus sensitivity 0.001mm

12volt 50 watt halogen illumination, Reflection Koehler illuminator with iris diaphragm and centerable filed diaphragm

ENQUIRY!
分类： , , 标签： , ,
描述

MIC-M5 Series Inverted Metallurgical Microscope

Parts Order No. Specification MIC-M5
Frame MIC-M5 Humanity Design, Stable Reliable.
UCIS Infinity Independent Achromatic Optical Design.
Wide voltage, 110-240V,50/60Hz.		 ●
Seidentopf
Observation Tube		 MS1 Binocular Tube, Interpupillary distance 52-75mm, 45°inclined diopter adjustable. ●
MS1A Binocular Tube, Interpupillary distance 48-75mm, 45°inclined diopter adjustable. ○
Eyepiece E1020PC Plan Eyepiece, WF10X/20, and diopter adjustable. ●●
E1022PC Plan Eyepiece, WF10X/22, and diopter adjustable. ○○
E1614PA Plan Eyepiece, WF16X/14 ○○
E1020RA Reticule Eyepiece: CROSSWF10X/20, diopter adjustable. ●
Objectives WB-P4C 4X  Infinity Plan Objectives ○
WM-L10A 10X Infinity Plan Objectives ●
WM-L20A 20X Infinity Plan Objectives (S) ●
WM-P50A 50X Metallurgical Infinity Long Work Distance Plan Objectives (S) ●
WM-P80B 80X Metallurgical Infinity Long Work Distance Plan Objectives (S) ●
WM-P100A 100X Infinity Long  Plan Objectives (S/Oil) ○
Lamp House DX10 12V100W Halogen Lamp House ●
Power Box DYX4 12V100W Halogen Power Box ○
DYX2 12V50W Halogen Power Box ●
Stage ZT1 Fixed Stage, Size: 240mmX260mm, Movement Range: 135mmX85mm. X/Y Coaxial Flexible Knobs On The Bottom Side. ○
ZT1-1000 Specimen Holder(φ118) ●
ZT1A Mechanical Stage, Size: 350mm×208mm, Movement Range: 50mmX50mm. ●
Specimen Clamps YPQ1 Specimen Clamps ○
Revolving Nosepiece ZQ580A Quintuple Revolving Nosepiece, ●
Illuminator DLST1 Multifunctional Reflected Light Illuminator ●
JXMKBG Brightfield Module ●
Filter LA3-0011 Blue Filter ●
LU3-0011 Green Filter ●
LH3-0011 Yellow Filter ●
LAB3-0011 50% Cutting Filter ●
Polarization Kits PQ2 Polarizer ●
PY3 Analyzer ●
C-Mount SX1 0.5X C-Mount ●
SX5 0.25X C-Mount(Fit 1/3’CCD) ○
Illumination Bulb BZ-0022E 12V50W Osram Halogen Bulb ○
BZ-0022D 12V50W Halogen Bulb ●●●
Other BZ-0023A 250V/5A Φ5X20 Fuse ●●●
OMMM Metallurgical Micrometer ●
DLSS1-0029 Diaphragm Adjusting Handle ●●
BZ2-0018 φ2mm Allen Screw Driver ●
BZ1-0018 φ2.5mm Allen Screw Driver ●
BZ1-0018A φ3mm Allen Screw Driver ●
BZ-0021 Power Cord ●

Note: “●” in the table is standard attachment. “○” is optional accessories.

Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
