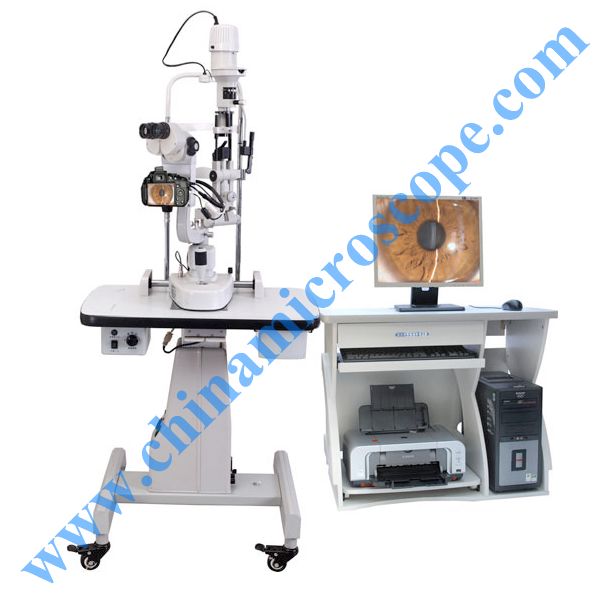

MIC-SH50S slit lamp microscope
Multi-layer coating to increase brightness
- Converging or Parallel optical design for clear stereo pictures
- Attachable beam splitter and video adaptor for digital image pick-up
Main Specification
Item\Model | Specifications | ||
Microscope | |||
Type | Converging Stereoscope | Parallel Stereoscope | |
Two-step magnifications | Three-step magnifications | Five-step magnifications | |
Eyepiece | 10× / 16× | ||
Magnification | 10×、16× | 10×、16×、25× | 6×、10×、16×、25×、40× |
Field of View (mm) | 6×(φ36.2)、10×(φ22.5)、16×(φ14.8)、25×(φ11)、40×(φ6.2) | ||
Adjustable Diopter | 55 – 80 mm | ||
Dioptor Adjustment | -5D—+5D | ||
Illumination system | |||
Slit width | 0mm~10mm | ||
Slit length | 0mm~10mm | ||
Rotation | 0°~180° | ||
Slit Inclination | 0°~20° | ||
Filter | heat absorption、grey、redfree、cobalt blue | ||
Power supply | |||
Electrical Safety Standard | Conform to Standard IEC 601-1.Class1Type B | ||
Input | ~220V、50Hz | ||
Output | 12V 30W Halogen Lamp | ||
Packing & Weight | |||
Whole Packing Volume | 0.28m3 | ||
Total Weight | 50kg |
