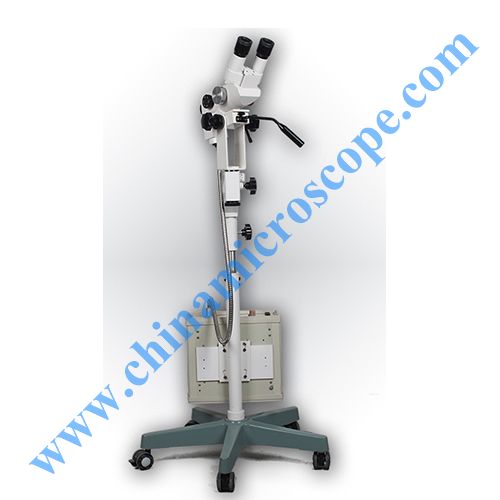

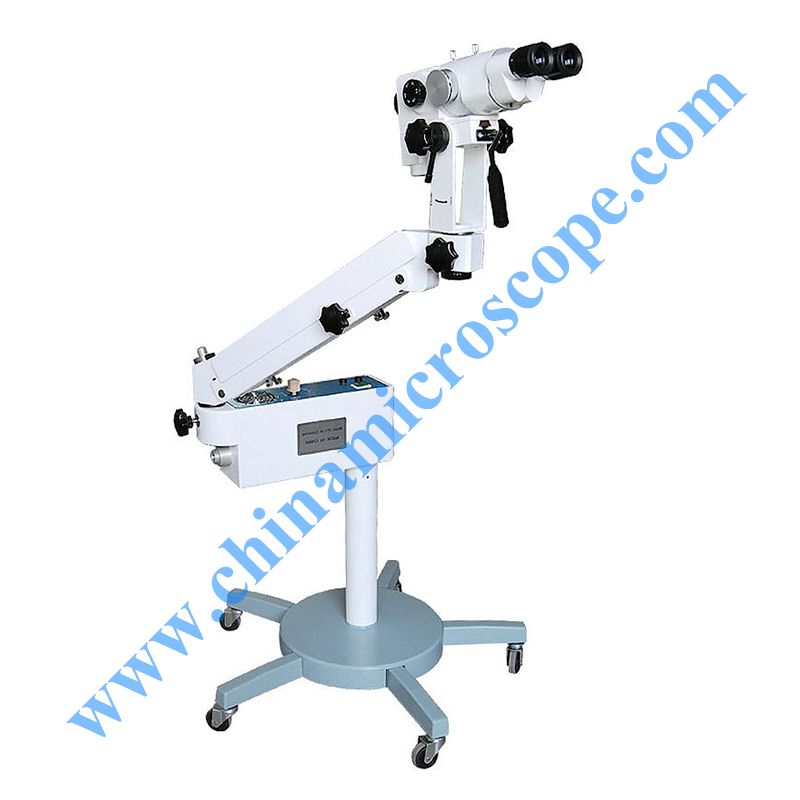

MIC-TY1 Colposcope

MIC-TY1Colposcope, except in cell diagnosis outside, in the clinical setting also become important auxiliary means, widely used in the early stages of the uterine neck cancer and deformed epithelium diagnosis work. As the vaginal mirror can really found naked eye cannot see even in cell diagnosis good to omissions in disease and syndrome and its scope, make the diagnosis accuracy greatly improve for early treatment.

Colposcope in addition to the above purpose use outside, the uterine neck benign disease diagnosis and surgical treatment for chronic erosion of decided to play an important role.

Colposcope and cell diagnosis is not division, with the two complement each other methods to diagnosis, can maximum limit to improve the diagnostic accuracy.

2. Technical data:

Train working distance 300 mm

Train total magnification 18(objective 0.9 by, eyepiece 20 ×)

Train lens barrel overhead Angle of depression on the 10 ° to 45 °

Train fine tuning range 27 mm

Train mesh distance regulating range 50 ~ 75 mm

Train lift range 400 mm

Train the giant slalom radius 600 mm

Train cold light source and v150w bromine tungsten lamp

3. Specifications:

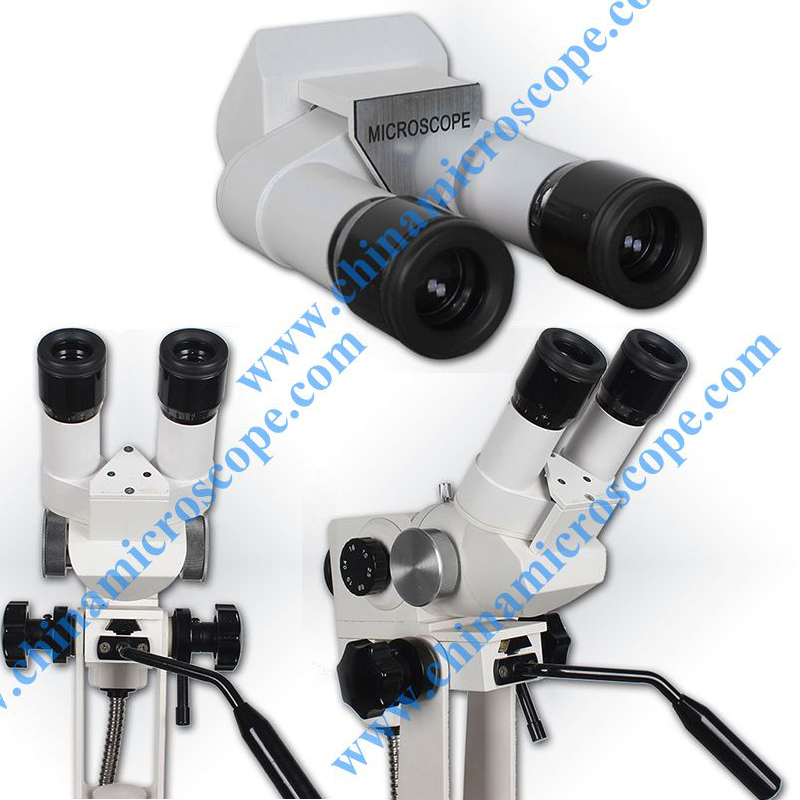

(1) focus of straight binocular:       160mm

(2) eyepiece:12.5x. wide angel, with visual field adjustment position locking

(3) objective lens:             f=300mm

(4) range of fine focusing:         40mm

(5) Interpupillary distance:           50-75mm

(6) illumination field:          80mm

(7) cold light source:            15v/150w

(8) power supply:       220v±20v,50hz±1hz

4. Operation features
