First model reach zoom ratio 12.5:1, parallel optical system

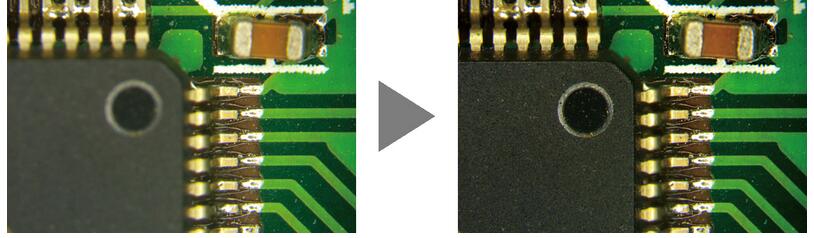

Coaxial coarse and fine focus, precision to 0.002mm, easy to focus on perfect image

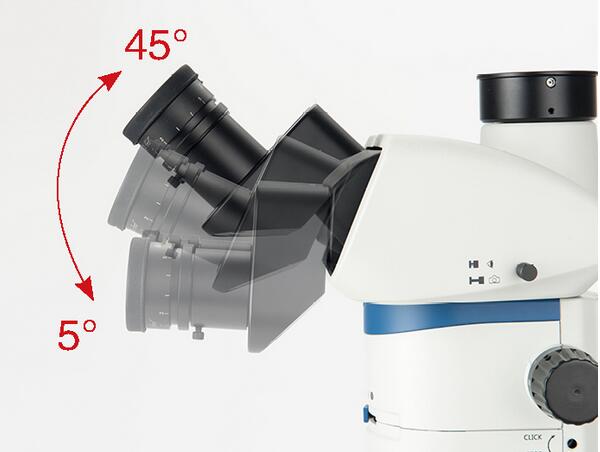

Tilting head, release user’s fatigue from long time operation, titling angle from 5°～45°
Aperture diaphragm is applied on the stereo microscope, for different sample, users can take different aperture diaphragm
Cold fiber light, light can be changed according to customer’s application
Base part with one piece of diffuse flat plate reflector, 360° rota table, transmitting light can be changed to reflecting light by using this diffuse flat plate reflector.

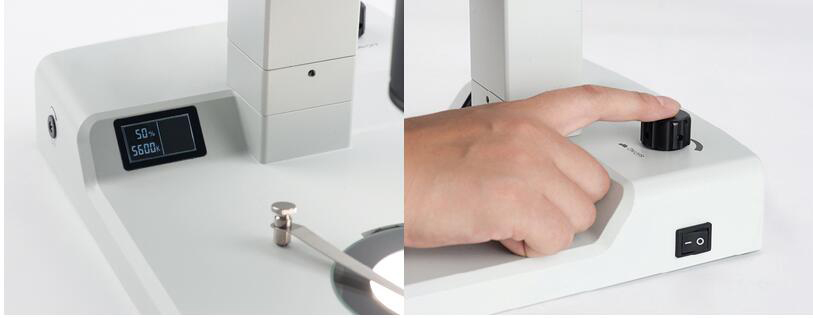

Digital display showing color temperature and lux, your lab best choice

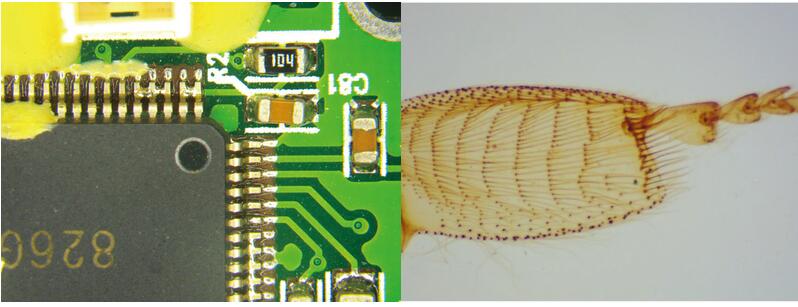

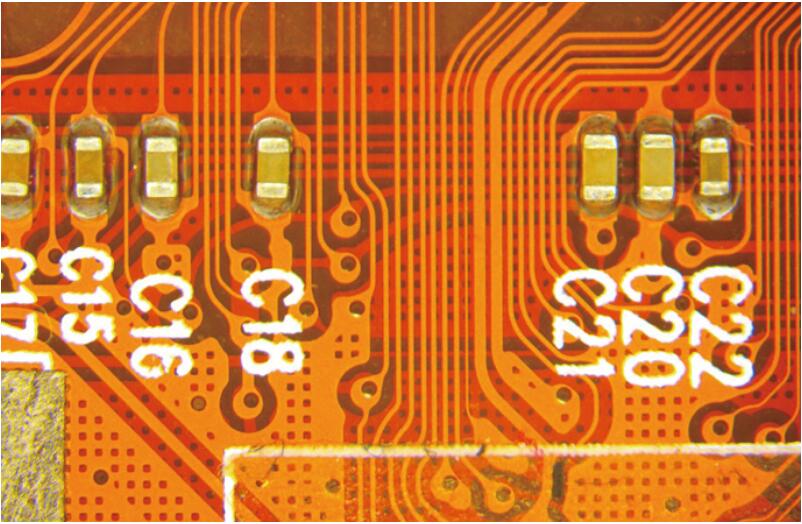

Application in different industry
| Eyepiece | High eye point WF PL10X/23mm,diopter adjustable. |
| Tilting trinocular
head |
Tilting trinocular head, tilting angle 5°～45°,beam splitting 100:0,
interpupillary distance 50–76mm fixed eyepiece tube with eyepiece locking device. |
| Zoom main body | Continuous zoom main body 0.8～10X,zoom ratio 12.5：1,inner fixed aperture diaphragm；
with major zoom locking device and be taken off manually, main zoom mag. Indicator 0.8X、1X、1.5X、2X、2.5X、3X、4X、5X、6X、8X、10X。 |
| Focus | Stand type coaxial focusing system, moving range 50mm, precision 0.002mm。 |
| Base part | Transmitting light, 5W LED（white color）fiber light illumination,
base part with one piece of diffuse flat plate reflector, 360° rota table, transmitting light can be changed to reflecting light by using this diffuse flat plate reflector. |
| Out fixed light | 5W LED lamp house,LED temperature 5000-5500K,
working voltage 100-220VAC/50-60HZ,output 12VSingle light fiber cable（500mm） |
| Main objective | 1X main objective,working distance 82mm |
