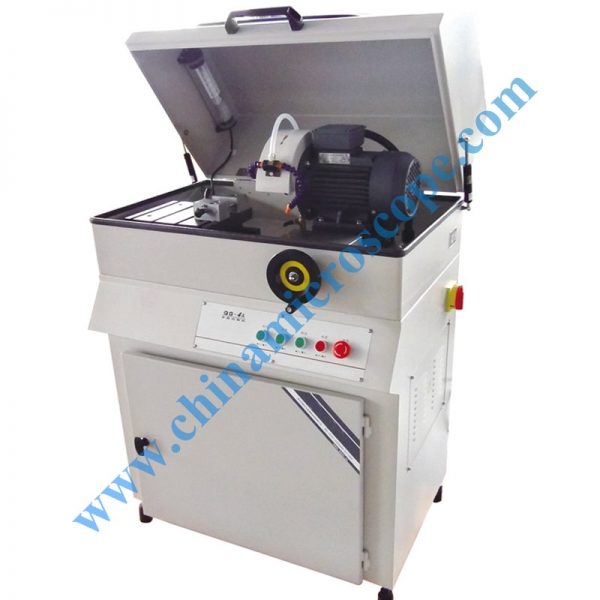

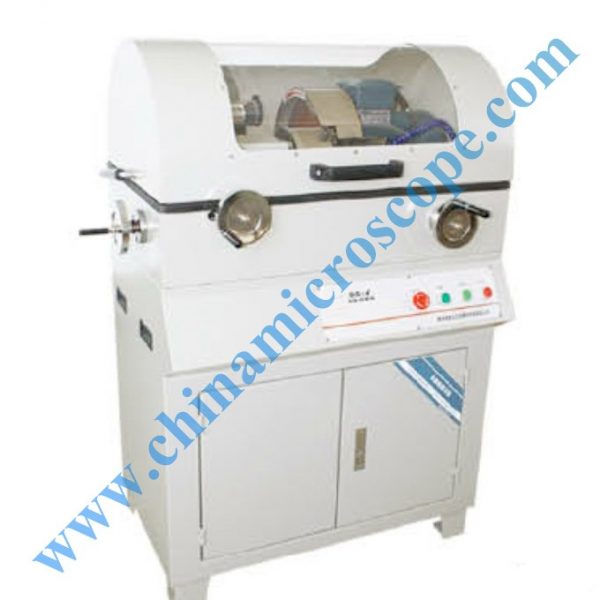

QG-4 Multifunctional Cutting Machine
QG-4 multifunctional cutting machine is mainly used for cutting cylinder and samples of anomalistic shape, such as multi-angular shape, protruding board, etc. It adopts the all-sealing structure, which can guarantee the cutting sample under the conditions of absolute safety. In order to avoid the sample burning the material texture because of over-heating in cutting, besides the cutter matching strong cooling system, the sample can revolve in the cutting, which can avoid the sample’s surface being burned in the cutting, and can increase the cutting cross section, raising the availability of cutting emery wheel. The cutter has the advantages of easy to operate, use, maintain, etc, which is an excellent equipment of cutting anomalistic shapes.
Main parameters：
Maximum Cutting Cross Section：65×65mm
Platen Speed：2800 r/min
Grinding Wheel Size：250×2×32mm
Electromotor：YSR 7132 ,1.1kW ,380V ,50Hz
Total Dimension：870×590×1110mm
Net Weight：180Kg
