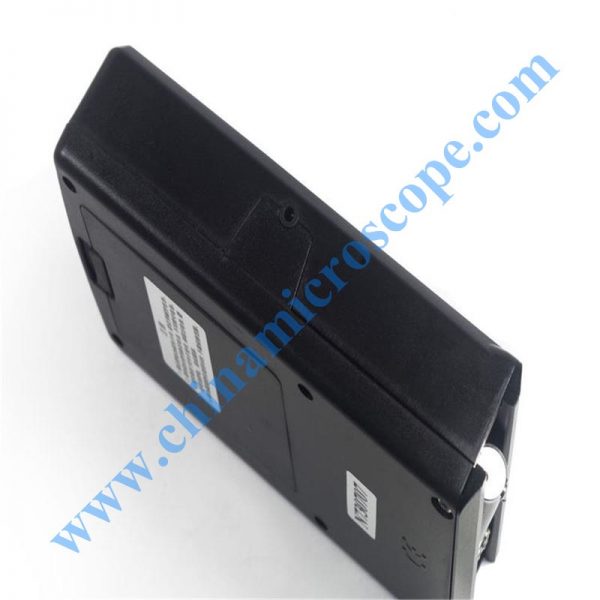

SRT-6100 surface roughness tester
Widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.
Features:
* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz.
* Highly sophisticated inductance sensor.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Metric /Imperial Conversion.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Principle

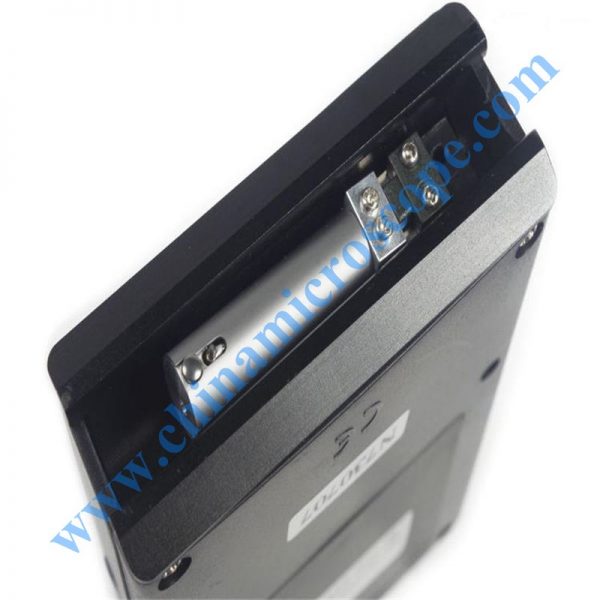

When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
Specifications
| Standards | GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1 | |
| Display | LCD | |
| Parameters | Ra,Rz | |
| Range | Ra:0.05µm~10.00µm Rz:0.1µm~50.0µm | |
| Accuracy | <<±15% | |
| Fluctuation of Display Value | <<10% | |
| Resolution | 0.001/0.01/0.1 | |
| Sensor | Radius of Probe Pin | 10µm |
| Material of Probe Pin | Diamond | |
| Measurement Force of Probe | 16mN(1.6gf) | |
| Probe Angle | 90º | |
| Vertical Radius of Guiding Head | 48 mm | |
| Maximum Driving Stroke | 12.5mm/0.5inch | |
| Cutoff length(l) | 0.25mm,0.8mm,2.5mm | |
| Driving Speed | Sampling | When Length=0.25mm,Vt=0.135 mm/s |
| When Length=0.8mm,Vt=0.5mm/s | ||
| When Length=2.5mm,Vt=1mm/s | ||
| Returning | Vt=1mm/s | |
| Evaluation Length | 1L~2L Optional | |
| Operating Conditions | Temp:0ºC~50ºC Humidity:<80%RH | |
| Power Supply | 4×1.5V AA(UM-3)Battery | |
| Dimensions | 128mmx80mmx30 mm | |
| Weight | 280g | |
| Standard Accessories | Main Unit | |
| Standard Sample Plate SSP-100 | ||
| Standard Sensor SRP-100 | ||
| Small Screwdriver | ||
| Carrying Case ( B04 ) | ||
| Operation Manual | ||
| Optinal Accessories | RS-232C Cable with Software | |
| Bluetooth Adapter with Software | ||
