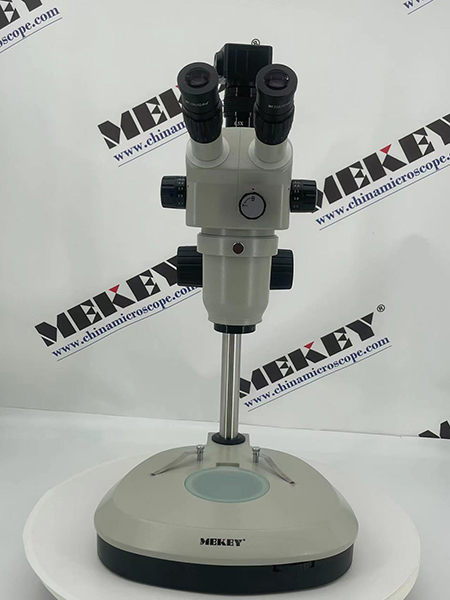

TM-55-70 stereo microscope

TM-55、TM-70 series zoom stereo microscopes

Main technology Specifications：

• Total magnification(standard outfits): TM-55 series: 6X~55X, TM-70 series: 8X~70X

Extend total magnification：TM-55 series: 330X, MZS0870 series: 420X

• Zoom objective magnification:TM-55 series: 0.6X~5.5X, zoom ratio is 9.2:1. The working distance is 108mm.

TM-70 series: 0.8X~7.0X, zoom ratio is 8.8:1. The working distance is 108mm.

• With wide field and high eye point eyepiece SWH10X(Φ23mm)
• Trinocular/Binocular drawtubes horizontal inclined 35°and main body can be rotated 360°
• The range of adjusting the diopter is ±6
• Interpupillary distance adjustment range 52mm~76mm (Left and right move at the same time)
• The range of adjusting the focus is 50mm(the square post is 100mm).

The diameter of the center working stage is Φ95mm

• The measurement to match between the support and the main body is Φ76mm
• The distance between from the post center to the main body center is 140mm
• The size of the round post is Φ25mm
• Illuminators : The down illuminator is the transmitted illumination of the fluorescent lamp(5W), The up illuminator is the reflected illumination of the halogen lamp(6V、10W).

Standard specification：
