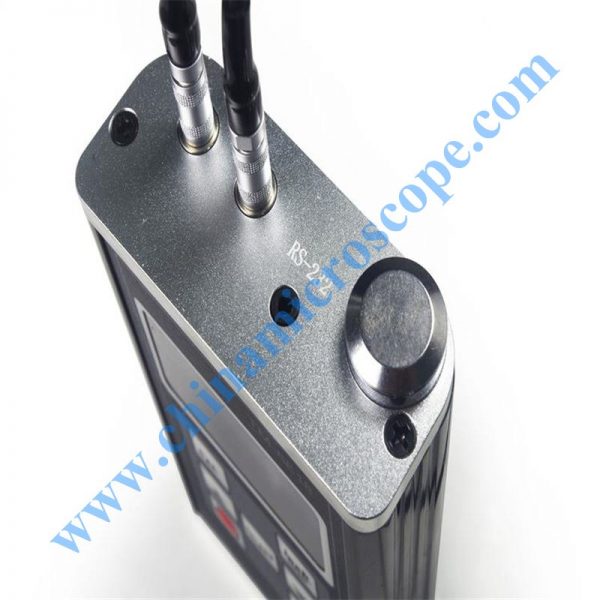

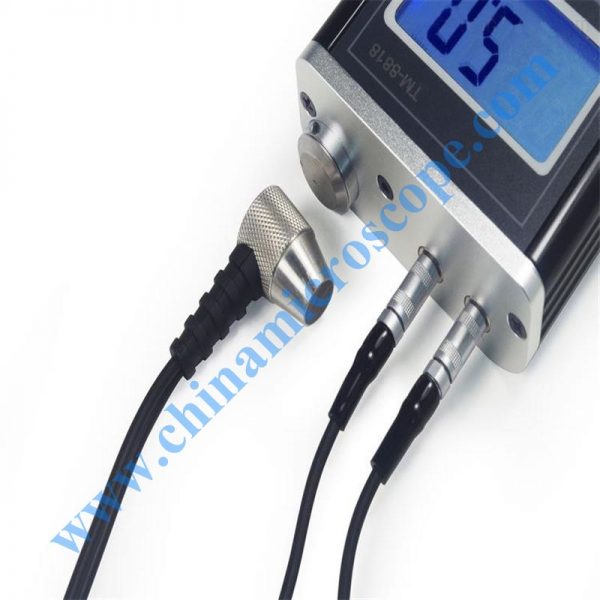

TM-8818 ULTRASONIC THICKNESS METER
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. industries of petroleum, ship building, power station, and machine manufacturing.
Features
* Using the latest high performance and low power consumption microprocessor technology.
* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
| Code | Material |
| CD01 | Steel |
| CD02 | Cast Iron |
| CD03 | Aluminum |
| CD04 | Red Copper |
| CD05 | Brass |
| CD06 | Zinc |
| CD07 | Quartz Glass |
| CD08 | Polyethylene |
| CD09 | PVC |
| CD10 | Gray Cast Iron |
| CD11 | Nodular Cast Iron |
| XXXX | Sound Velocity |
| Housing Material | Aluminum Alloy | |
| Display | Large Screen LCD | |
| Measuring Range | 0.75~400mm(45#steel,Depend on Probe) | |
| Resolution | 0.1mm/0.1mm/0.001 inch | |
| Accuracy | ±(0.5%n+0.05) | |
| Sound Velocity | 500~9,990m/s | |
| Lower Limit of Pipes | Φ15×2.0mmΦ20×3.0mm Determined By Transducer | |
| Operating Conditions | Temperature | 0~40ºC |
| Humidity | <85%RH | |
| Power Supply | 2×1.5V AA(UM-3)Battery | |
| Dimensions | 130x76x32 mm | |
| Weight | 340g(Not Including Batteries) | |
