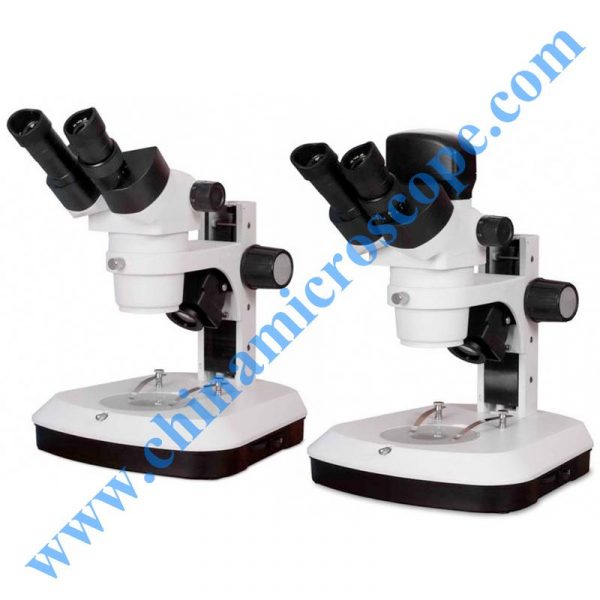

TOT-3 Series Stereo Microscope
Technical Specification:
Zoom Ratio1∶6.6
Magnification7×～46×
Objective Zoom Range0.7×～4.6×
10×Eyepiece 10×/Φ22mm high point (with eyecup)
Standard Working Distance:110mm
Interpupillary Distance 54mm～76mm
Observing Tube Binocular/Trinocular/built-in digital camera 45°inclined, 360°rotatable.
Up Illumination 3W LED （optional :12V/15W halogen）
Down Illumination 3W LED （optional :12V/15W halogen）
Optional Eyepiece 15×/Φ17mm , 20×/Φ13mm
Additional Objective 0.5×W.D. 189mm
0.75×W.D. 122mm
2×W.D. 36mm
TOT-3DM320/500 Built-in Digital Camera Microscope Performance
Dustproof、damp proof、prevent disassembling built-in chip integrative design
Light distribution 20:80, eyepiece observation synchronized with computer imaging without switching.
Built-in 3MP/5MP Digital camera system,1/2’’CMOS color sequential scanning .
USB2.0 connection, without external power supply.
MIC image analysis software , Available for WINDOWS 2000/XP/Vista system.
Magnification:
| Additional Objectives | 0.5× | 0.75× | 1×(Built in) | 2× | |
| W.D. | 189mm | 122mm | 110mm | 36mm | |
| 10×/Φ22 mm | Magnification | 3.5～23 | 5.25～34.5 | 7～46 | 14～92 |
| Field Dia.（mm） | 62.86～9.57 | 41.90～6.38 | 31.43～4.78 | 15.71～2.39 | |
| 15×/Φ16 mm | Magnification | 5.25～34.5 | 7.88～51.75 | 10.5～69 | 21～138 |
| Field Dia（mm） | 48.57～7.39 | 32.38～4.93 | 24.29～3.70 | 12.14～1.85 | |
| 20×/Φ13 mm | Magnification | 7～46 | 10.5～69 | 14～92 | 27～184 |
| Field Dia.（mm） | 37.14～5.65 | 24.76～3.77 | 18.57～2.83 | 9.29 ～1.41 | |
