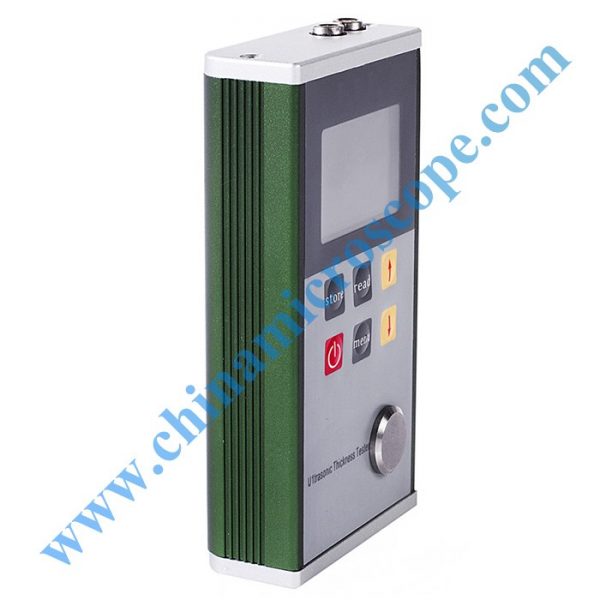

Ultrasonic Thickness Tester MIC-L330/331/332
Function & Feature:
♦Whole metalcase, Shielding interference efficiently.
♦Zero calibration: auto returning to zero when you press the key after the probe is put on the specimen.
♦Data transmission: RS232 interface, can be connected to the PC
Battery information indicates the rest capacity of the battery,Auto sleep and auto power off function to conserve battery life.
Display: LCD with LED backlight .The brightness and the contrast of the LCD is adjustable. And thickness value, coupling condition, power state, CAL calibration state, sound velocity.
♦The unit of measurement, metric, inch optional.
Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
♦A two-point calibration, can improve the accuracy of measurement.
♦Nonlinear correction, automatic compensation, in order to improve the measurement accuracy.
♦Alarm function: setting the measurement limit and alarming for the results beyond the limit.
Application Fields:
♦Widely used in petroleum, chemical industry, metallurgy, shipbuilding, aerospace and other fields.
Measuring Material:
♦Adapted to measure the thickness of ultrasonic conductor, such as metal, plastic, ceramic, glass etc.
Technical Specification
Model | MIC-L330 | MIC-L331 | MIC-L332 | ||
Measuring range(mm) | 0.7~252 | ||||
Resolution(mm) | 0.1 | 0.01 | |||
Accuracy(mm) | ±(1%H+0.1) | ||||
Velocity range(m/s) | 5920 | 1000~9999 | 1000~9999 | ||
Velocity measurement | √ | ||||
English Menu | √ | ||||
LED backlight | √ | ||||
Storage | N | N | 2000 sets of data | ||
Shell | Metalcase | ||||
Operating temperature | -10℃~60℃ | ||||
Dampness | 20%~90% | ||||
Dimensions | 150×55.5×23mm | ||||
Power supply | 2 AA alkaline batteries | ||||
Weight | 420g | ||||
Standard Delivery | Unit Probe Matrix,Probes,Coupling agent | ||||
Optional Accessories | Probes,Coupling agent |
