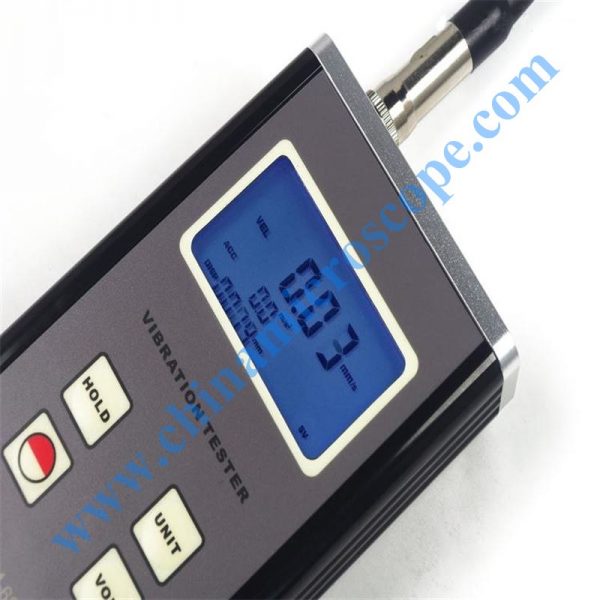

VM-6370 VIBRATION METER
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.

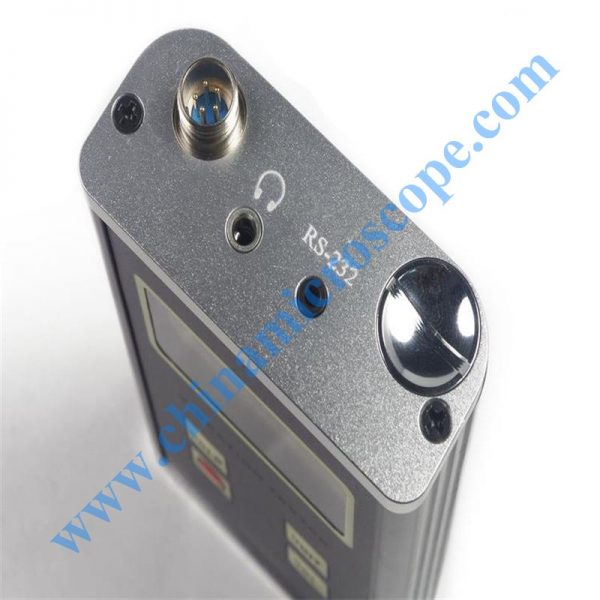

* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Vibration Standard
| ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
| Quality Rank | Rev(rpm) | H:high of shaft(mm) Maximum vibration velocity rms(mm/s) |
||
| 80<H<132 | 132<H<225 | 225<H<400 | ||
| Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
| Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
| 1800~3600 | 1.12 | 1.8 | 2.8 | |
| Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
| 1800~3600 | 0.71 | 1.12 | 1.8 | |
Specifications
| Sensor | Piezoelectric Transducer | |
| Measuring Range | Acceleration | 0.1m/s²~400m/s² 0.3ft/s²~1312ft/s² 0.0g~40g Equivalent Peak |
| Velocity | 0.01mm/s~400mm/s 0.004inch/s~16.0inch/sTrue RMS | |
| Displacement | 0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak | |
| Frequency Range | Acceleration | 10Hz~10kHz |
| Velocity | 10Hz~1kHz | |
| Displacement | 10Hz~1kHz | |
| Accuracy | 5% of Reading+2 digits | |
| Operating Conditions | Temperature | 0ºC~50ºC |
| Humidity | <90%RH | |
| Power Supply | 2×1.5V AA(UM-3)Battery | |
| Dimensions | 130mmx76mmx32mm | |
| Weight | 340g(Not Including Batteries) | |
| Standard Accessories | Main Unit | |
| Piezoelectric Transducer | ||

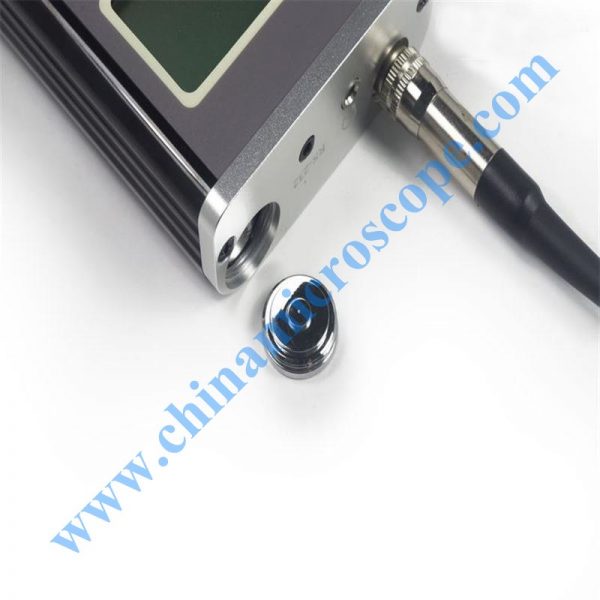

| Powerful Rare Earth Magnet | ||
| Probe(Cone)&Probe(Spherical) | ||
| Carrying Case(B04) | ||
| Manual Book | ||
| Optional Accessories | Headset | |
| RS-232C Data Cable with Software | ||
| Bluetooth Data Adapter with Software | ||
