Standard Configuration
| Model | XSL-10A | XSL-10B | XSL-10C |
| Eyepiece | Wide field WF10X(18mm) | ||
| Objective | Achromatic 4X/0.10 | ||
| Achromatic 10X/0.25 | |||
| Achromatic 40X/0.65(Spring) | |||
| Achromatic 100X/1.25(Spring, oil) | |||
| Eyepiece tube | Monocular,360˚ rotatable
(Inclination of 45˚) |
Monocular,360˚ rotatable
(Inclination of 45˚) |
Monocular,360˚rotatable
(Inclination of 45˚) |
| Focus system | Separate coarse/fine
system focus. Minimum division of fine focusing: 4μm |
Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm | |
| Nosepiece | Quadruple(Frontward ball bearing outer locating) | Quadruple(Backward
ball bearing outer locating) |
|
| Stage | Double-layer mechanical, size:125mmX115mm, move range:70mmX30mm | ||
| Abbe condenser | N.A.1.25 Rack &pinion adjustment | ||
| Filter | Blue filter | ||
| Frosted filter | |||
| Collector | For incandescent lamp | ||
| Light source | 220V/110V 20W, Incandescent lamp | ||

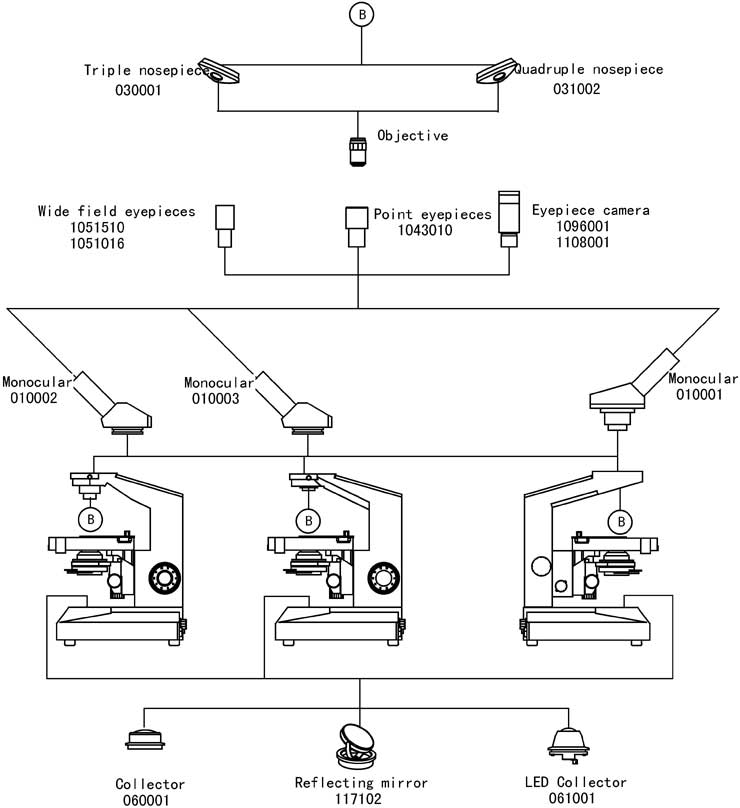

Optional accessories
| Name | Sort/Technique parameter | |
| Eyepiece | Wide field WF16X(¦µ11mm) | |
| Point 10X(¦µ18mm) | ||
| Nosepiece | Triple(Frontward ball bearing outer locating) | |
| Filter | Green filter | |
| Yellow filter | ||
| Light source | Fluorescent lamp | 5W,110V/220V Can be choose |
| LED Illumination | High brightness white | |
| Reflecting mirror | Plane-concave reflecting mirror with stand | |
| Camera | Photography | USB Output |
| VIDEO Output | ||
| Adapter | Input: 230V 50/60HZ Output: 9V 500mA | |
| Input: 110V 50/60HZ Output: 9V 500mA | ||
