    XYX-M3230 upright metallurgical microscope

    XYX-M3230 reflected and transmitted microscope is suitable to observe surfaces of non-transparent object or transparent object. It is equipped with vertical illuminator, infinity plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provides clear and high-contrast image, beautiful sculpt ,convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.

    Features

    1. With infinity plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
    2. Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    3. Movement of stage: 30mm
    4. With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent
    5. Trinocular, can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.
    ENQUIRY!
    分类： , , 标签： , ,
    描述

    Standard Configuration

    Model XYX-M3230

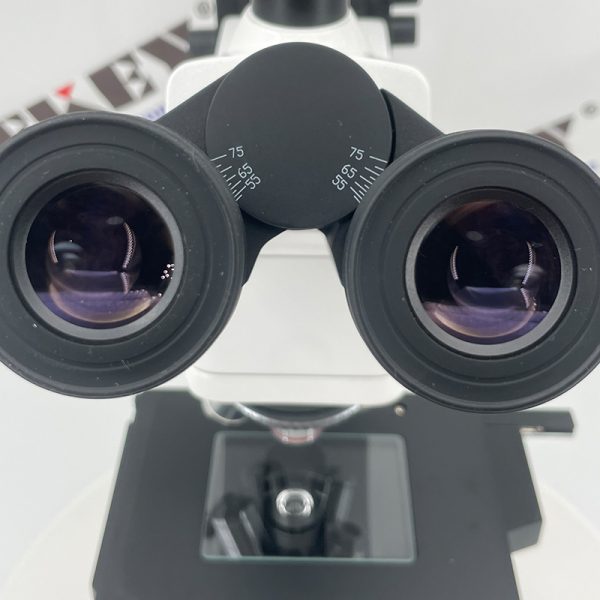

    Eyepiece Wide field  WF10X(22mm)
    Objective Infinity plan achromatic objectives with long working distance (no cover glass)
    PL L5X/0.12(Work distance)：26.1 mm
    PL L10X/0.25(Work distance)：20.2 mm
    PL L40X/0.60£¨Spring£©(Work distance)：3.98 mm
    PL L60X/0.70£¨Spring£©(Work distance)：3.18 mm
    Eyepieces tube Trinocular inclined 30˚, can be shot in 100% light flux.
    Epi- illumination system 6V 30W, halogen lamp, adjustable brightness
    Integrated field diaphragm, aperture diaphragm and filter switching device. Push-pull type analyzer and polarizer
    Focus system Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece Quintuple (Backward ball bearing inner locating)

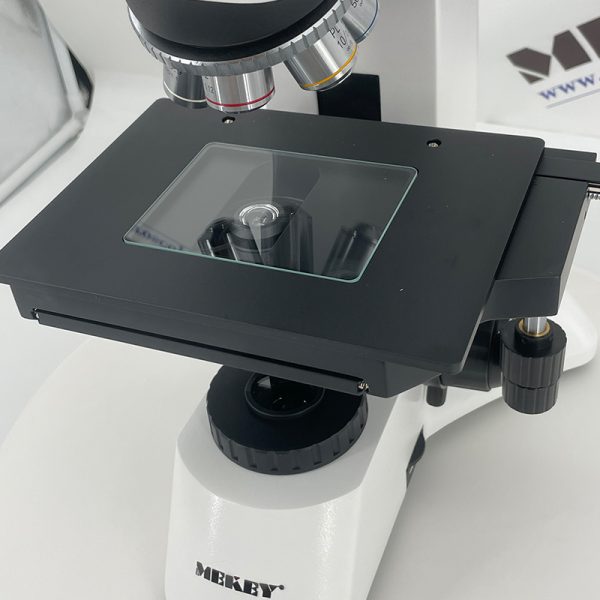

    Stage Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
    Transmitted illumination

    system

    		 Abbe condenser  NA.1.25  Rack & pinion adjustable
    Blue filter and Ground glass
    Collector for illumination with halogen lamp (With field diaphragm )
    6V 30W halogen lamp, adjustable brightness

    Optional accessories

    Name Sort/Technique parameter NO.
    Eyepiece Dividing eyepiece(field number:¦µ22mm)    0.10mm/Div 1122010
    Objective Infinity plan achromatic objectives with long working distance (no cover glass)
    PL L 20X/0.40(Work distance)：8.80mm 2260120
    PL L50X/0.70£¨spring£©(Work distance)：3.68 mm 2260150
    PL L80X/0.80£¨spring£©(Work distance)：1.25 mm 2260180
    PL L 100X/0.85£¨spring£©£¨Work distance£©:0.4mm 2260111
    Filter Green filter 115002
    Yellow filter 115003
    CCD adapter 0.4X 810001
    0.5X 810004
    1X 810002
    0.5X with dividing 0.1mm/Div 810003
    Camera DV-1  Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£© 800001
    DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£© 800003
    DV-3  With video output£¨380/520 TV line£© 800005
    Digital camera adapter CANON(A570,A610,A620,A630,A640,A650,EF)  NIKON( F) 820001
    其他信息
    microscope function

    finite, Compound, Polarizing
