Standard Configuration

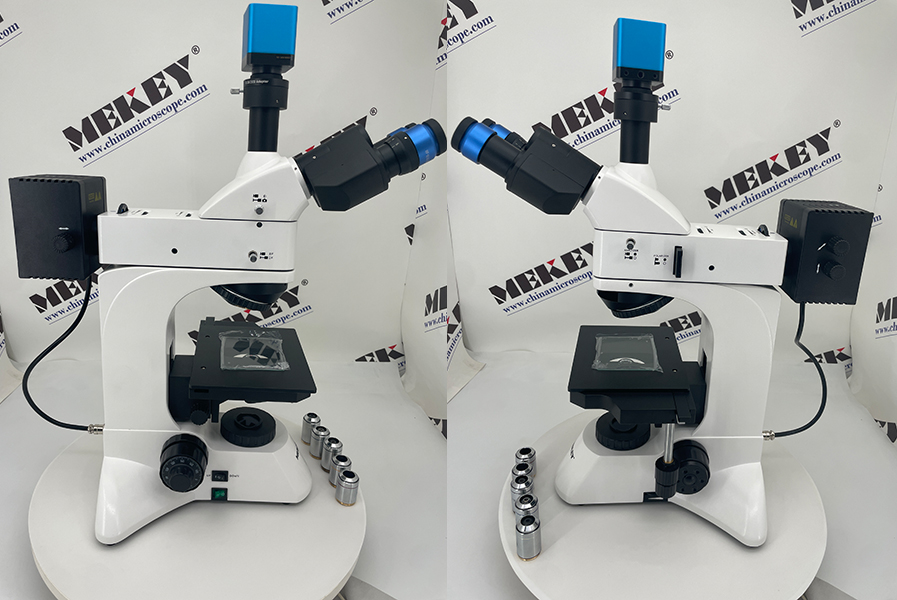

| Model | XYX-M3230 DIC |
| Eyepiece | Wide field WF10X(18mm) |
| Objective | Infinity plan achromatic objectives with long working distance (no cover glass) |
| PL L5X/0.12 Work distance:26.1 mm | |
| PL L10X/0.25 Work distance:20.2 mm | |
| PL L20X/0.40 Work distance:8.8 mm | |
| PL L40X/0.60 (spring) Work distance:3.98 mm | |
| DIC observation system | 10XDIC push-pull group |
| 20XDIC push-pull group | |
| Eyepieces tube | Trinocular, Inclination of 30˚,Brinocular |
| Epi- illumination system | 12V 50W, halogen lamp, adjustable brightness |
| Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer. | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
| Nosepiece | Quintuple (Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
| Transmitted illumination
system |
Abbe condenser NA.1.25 Rack & pinion adjustable |
| Blue filter and Ground glass | |
| Collector for halogen lamp illumination and integrated field diaphragm | |
| 12V 30W halogen lamp, adjustable brightness |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Dividing eyepiece(field number:18mm) 0.10mm/Div | 1121010 |
| Objective | Infinity plan achromatic objectives with long working distance (no cover glass) | |
| PL L50X/0.70 (spring) Work distance:3.68mm | 2260150 | |
| PL L60X/0.75 (spring) Work distance:1.22 mm | 2260160 | |
| PL L80X/0.80 (spring) Work distance:1.25 mm | 2260180 | |
| PL L100X/0.85 (spring and dry) Work distance:0.40mm | 2260111 | |
| Nosepiece | Quintuple Backward ball bearing inner locating | 032001 |
| Filter | Green filter | 115002 |
| Yellow filter | 115003 | |
| CCD adapter | 0.5X | 810004 |
| 1X | 810002 | |
| 0.5X with dividing 0.1mm/Div | 810003 | |
| Camera | DV-1 Video output & USB output | |
| DV-130 / 300 / 500 / 900 with USB output | ||
| DV-3 With video output(380/520 TV line) | ||
| Digital camera adapter | CANON(EF) NIKON( F) | 820001 |
