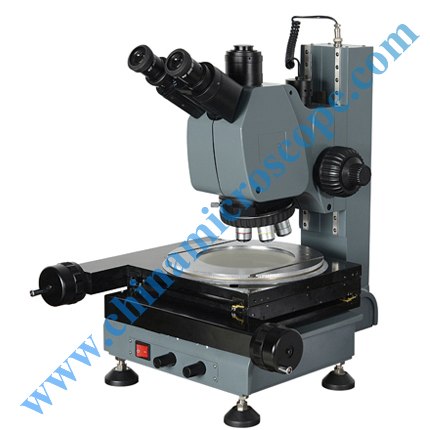

MIC-600 Multi-functional precision measuring microscope is developed and aimed at the semiconductor industry,Silicon wafer manufacturing industry,electronic information industry,metallurgical industry.As an advanced precision measuring microscope,it can be used to identify,analyze and measure structure of a variety of metal,alloy and also for detecting the semiconductor,LCD,TFT,PDP and solar cell panel.
The ergonomics design makes you feel comfortable.
| Specification | |
| Optical system | infinite optical system |
| Viewing Head | Positive Compensation free head inclined at 30°
interpupilary distance adjustable( 50mm-75mm) |
| Eyepiece | Super Wide field Plan eyepiece WF10×/23mm |
| WF10×/20mm,crosshair with reticule0.1mm | |
| Objective | 95mm infinite Plan Apochromatic LWD objectives
5X/0.15（W.D.44mm） 5X/0.15（W.D.44mm） 5X/0.15（W.D.44mm） 5X/0.15（W.D.44mm） |
| Nosepiece | Quadruple Nosepiece with DIC jack,adjustable center |
| Stage | Stage Size:286mm x 286mm |
| Moving Range:100mm x 100mm | |
| Quick X and Y direction moving function | |
| Focusing | Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm
Z direction lifting range：150mm |
| Light Source | Surface Lighting，Kohler illumination with aperture iris diaphragm and field iris diaphragm
field iris diaphragm；Halogen Bulb 12V/50W,AC85V-230V,brightness adjustable Contour Lighting Telecentric Lighting,Halogen Bulb 12V/50W,AV85V-230V,brightness adjustable |
| Polarizing Device | Analyzer rotatable 360°,porlarizer & analyzer |
| Display Device | Number of Axes：2 or 3
Resolution：0.0005mm Function：Zero set，directional conversion，data output，TTL Signal Power supply：AC85V~230V |
| Checking Tool | 0.01mm Micrometer |
| Optional Accessory | Eyepiece：WF10X/25mm、WF15X/17mm、WF20X/12.5mm |
| Objectives：95mm infinite plan apochromatic 2X/0.05(W.D.20mm)
100X0.80（W.D.4.0mm） Objectives |
|
| Two-dimensional measurement software | |
| Professional metallurgical image analysis software | |
| Micrometer eyepiece | |
| Photography attachment and CCD C-mount：0.5X、0.57X、0.75X
1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega |
|
| pixels digital camera eyepiece | |
| CCD Camera,colour1/3 high resolution 700 TV lines | |
| Various industrial Camera | |
