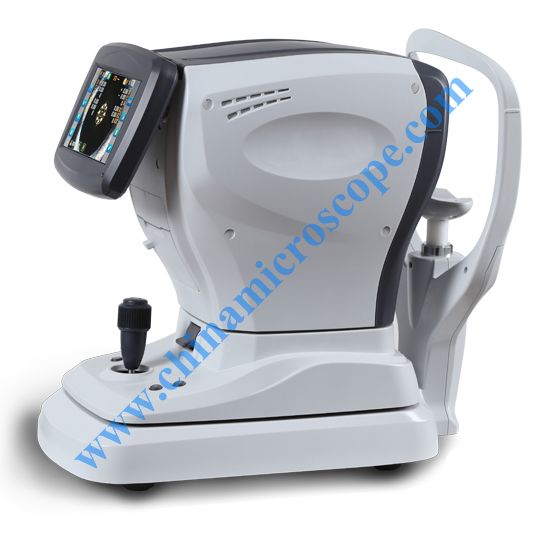

MIC-RM92 refractometer
It can connect to the Auto phoropter CV-7000,CV7200, Auto chart projector 1500/1000.
1.tiltable color screen.
2.auto detachment printer
3.auto tracking optical system
4.motorized chinrest
Use the ARM processor and the latest domestic image processing, the system is fast and the image is clear.
Japan’s mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment,more precise measurements.
Light rack with integral casting , CNC machining, measuring system is more stable , good consistency.
Data transmission with computerized vision tester, improved efficiency of online.
Motorized chinrest,Auto detachment printer,Auto tracking optical system,5.7’ tiltable color LCD
Technical Parameters
| Measurement mode | REF mode | Refractive measurement |
| Refractive measurement | Vertex Distance | 0.0,12.0,13.75,15.0 mm |
| Sphere | -20.00~+20.00D
(0.12/0.25D step)(VD=12mm) |
|
| Cylinder | 0.00~±10.00D (0.12/0.25D step) | |
| Axis | 1°~180°(1° step) | |
| Pupil Distance | 30~85 mm | |
| Min. pupil diameter measurable | 2.0mm | |
| Target | Automatic fogging target | |
| Corneal curvature measurement | Radius of curvature | 5~10mm(0.01mmstep) |
| Corneal Refraction | 33.00~67.00D(0.12/0.25Dstep) | |
| Corneal Astigmatism | 0.00~-15.00D(0.12/0.25Dstep) | |
| Angle of corneal | 1°~180°(1°step) | |
| Corneal diameter | 2.0~12.00mm | |
| Hardware specification | Monitor | 5.7 inch Color LCD |
| Printer | Auto detachment printer | |
| Power saving function | OFF, 5, 15 mins (selectable) | |
| Power supply | AC110~220 V,50/60HZ | |
| Dimensions/weight | 288(W)*500(D)*480(H)mm/14kg |
