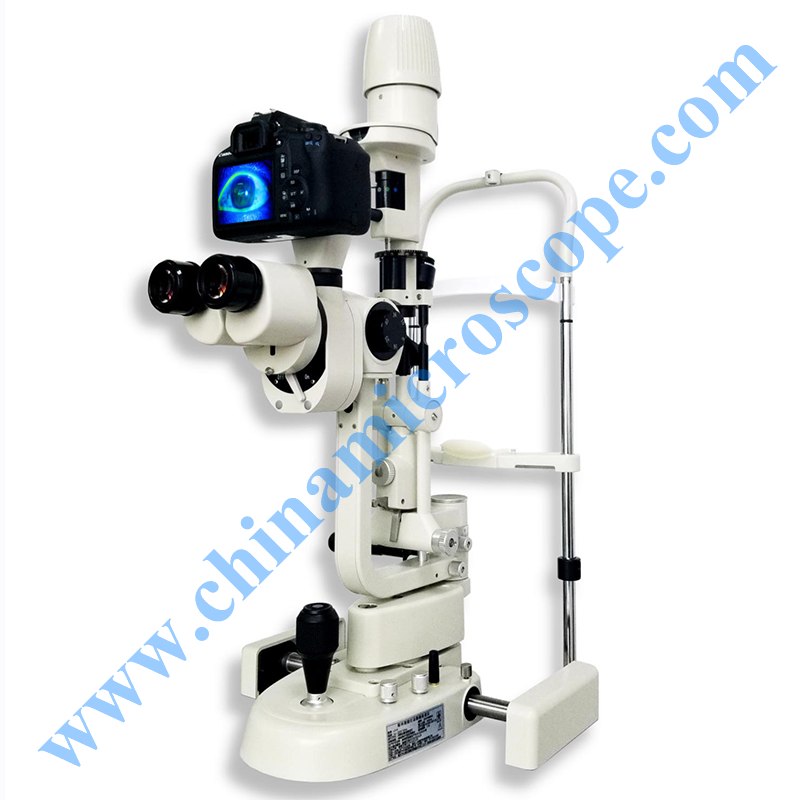

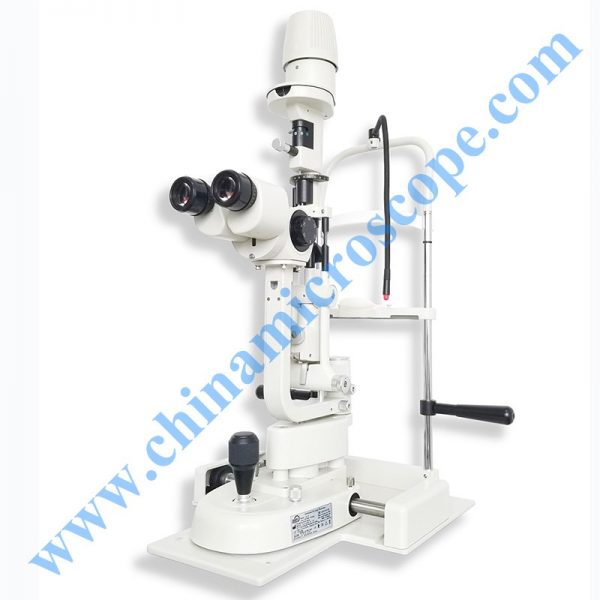

MIC-SB9D slit lamp microscope
| Model number | MIC-SB9D |
| Microscope Type | Galilean system Haag-streit type |
| Magnification changer | Revolving the drum |
| Eyepiece | 12.5X |
| Total magnification | 6X 10X 16X 25X 40X |
| Diameter of Vision field | φ33 φ22 φ14 φ8.6 φ5.6(mm) |
| Pupil adjusting range | 54 mm~82 mm |
| Diopter adjustment | -8D ~ +8D |
| Slit image width | 0mm～14mm continuous adjustable |
| Slit image length | 1mm～14mm continuous adjustable |
| Diameter of aperture | φ14mm、φ10mm、φ5mm、φ2mm、φ1mm、φ0.2mm |
| Slit angle | 0～180 Rota table continuous |
| Filter | Heat absorption, Grey, red free (Green), Cobalt blue |
| Illumination | Warm LED |
| Image acquisition | 24 Megapixels CCD |
| Aperture | Beam splitter |
| Power | Input voltage 100~240V
Input frequency 48~62 Hz Input power 60VA |
| Package Dimension | 740*650*450mm total 27kg Carton |
