Light distribution (both): 100 : 0(100% for eyepiece)
80 : 20(80% for trinocular head and 20% for eyepiece)
Integrated stage is safer than traditional stage
N.A.0.9/0.13 Swing-out Condenser
Dark field condenser(dry)available to 4X-40X Objective
Dark field condenser (wet) available to 100X Objective
Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.
Infinity Plan Objectives
Items | Specification | BM200 | BM300 | BM4000 | BM5000 | Order No. |
Eyepiece | WF10×-18 mm | ●● | ○○ | ●● | ○○ | WF10-18 |
WF10×-20 mm | ○○ | ●● | ○○ | ●● | WF10-20 | |
WF16×-13 mm | ○○ | ○○ | ○○ | ○○ | WF16-13 | |
WF10×-18 mm(With Pointer) | ○ | ○ | ○ | ○ | WF10P | |
WF10×-18mm (Reticule0.1mm) | ○ | ○ | ○ | ○ | WF10R | |
Achromatic
Objective |
4×/0.10 | ● | / | / | / | B-A4 |
10×/0.25 | ● | / | / | / | B-A10 | |
40×/0.65 (S) | ● | / | / | / | B-A40 | |
100×/1.25 (Oil) (S) | ● | / | / | / | B-AO100 | |
Infinity
Achromatic Objective |
IOS 4× | / | / | ● | / | B-Ai4 |
IOS 10× | / | / | ● | / | B-Ail10 | |
IOS 40× | / | / | ● | / | B-Ail40 | |
IOS 100× (Oil) (S) | / | / | ● | / | B-Ail100 | |
Plan
Objective |
4×/0.10 | / | ● | / | / | B-P4 |
10×/0.25 | / | ● | / | / | B-P10 | |
20×/0.45 | / | ○ | / | / | B-P20 | |
40×/0.65 (S) | / | ● | / | / | B-P40 | |
100×/1.25 (Oil)(S) | / | ● | / | / | B-PO100 | |
Infinity
Plan Objective |
IOS 4× | / | / | / | ● | B-Pi4 |
IOS 10× | / | / | / | ● | B-Pil10 | |
IOS 20× | / | / | / | ● | B-Pil20 | |
IOS 40× | / | / | / | ● | B-Pil40 | |
IOS 100× (Oil) (S) | / | / | / | ● | B-Pil100 | |
Seidentopf
Binocular Head |
Inclined 30°,Rotatable 360°,
Interpupilary Distance 55-75mm |
● | ● | / | / | Bi-K |
Seidentopf
Binocular Head (For Infinity System) |
Inclined 30°, Rotatable 360°,
Interpupilary Distance 55-75mm |
/ | / | ● | ● | Bi-Ki |
Trinocular
Head |
Inclined 30°,Rotatable 360°,
Interpupilary Distance 55-75mm Light Distribution: 0:100 |
○ | ○ | / | / | Tr-K |
Trinocular
Head (For Infinity System) |
Inclined 30°,Rotatable 360°,
Interpupilary Distance 55-75mm Light Distribution: 0:10 |
/ | / | ○ | ○ | Tr-Ki |
Nosepiece | Quadplex | ● | ● | ● | ○ | N-K4 |
Quirtuple | ○ | ○ | / | ● | N-K5 | |
Mechanical | Travel:50mm×70mm | ● | ● | ● | ● | S-Kma |
Stage | Coaxial Coarse and | |||||
Fine Focusing Knobs | ||||||
Condense | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● | ● | ● | Kca |
Koehler | 6V/20W Halogen Lamp | ● | ● | ● | ● | EK20 |
Illumination | 6V/30W Halogen Lamp | ○ | ○ | ○ | ○ | EK30 |
/ | LED Illumination Systems | ○ | ○ | ○ | ○ | LED |
Field Diaphragm | ○ | ● | ○ | ● | K-F | |
Filter | Blue | ● | ● | ● | ● | K-BL |

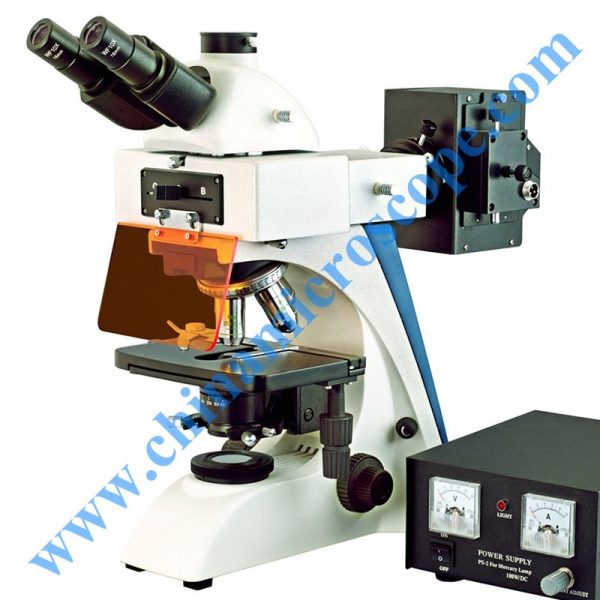

Fluorescence,Phase Contrast,Darkfield,Polarize And Incident Accessories Are Optional |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
Packing Size: 542mm×265mm×355mm Gross Weight: 12 kgs Net Weight: 10kgs
