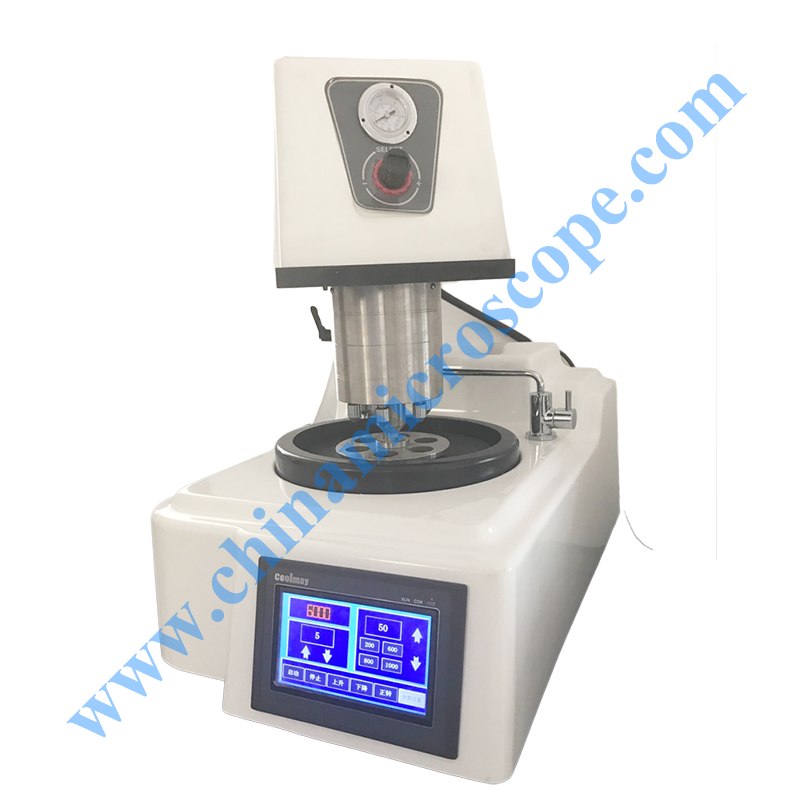

LMP1000 automatic grinding / polishing machine is manufactured according to international standards and international advanced technology. This machine has the characteristics of high machining precision, stable and reliable performance, easy operation, wide machining range and automatic working process. It is an ideal metallographic machining instrument.
Main technical specifications:
Grinding disc diameter:φ 250mm (customizable φ 203mm、 φ 300mm）
Grinding disc speed:50-1000r/min (for φ 203， φ 250mm φ 300mm grinding and throwing tray (customized) stepless speed regulation, 400 r/min, 600 r/min, 800 r/min, 1000 r/min (four-stage constant speed)
Grinding head speed:5-150r/min (stepless speed regulation)
Number of samples prepared: 4
Loading range: 0-1mpa adjustable, factory parameter setting is within 0.2MPa
This machine is pressurized by manual regulating pressure valve
Sample preparation time:0-3000 seconds
Sample diameter:φ 30mm (customizable φ 22mm and φ 45mm）
Input voltage:Single phase AC220V 50Hz
Input power: 1.1KW
Overall dimensions:632*750*700（mm）
Net weight 67KG
