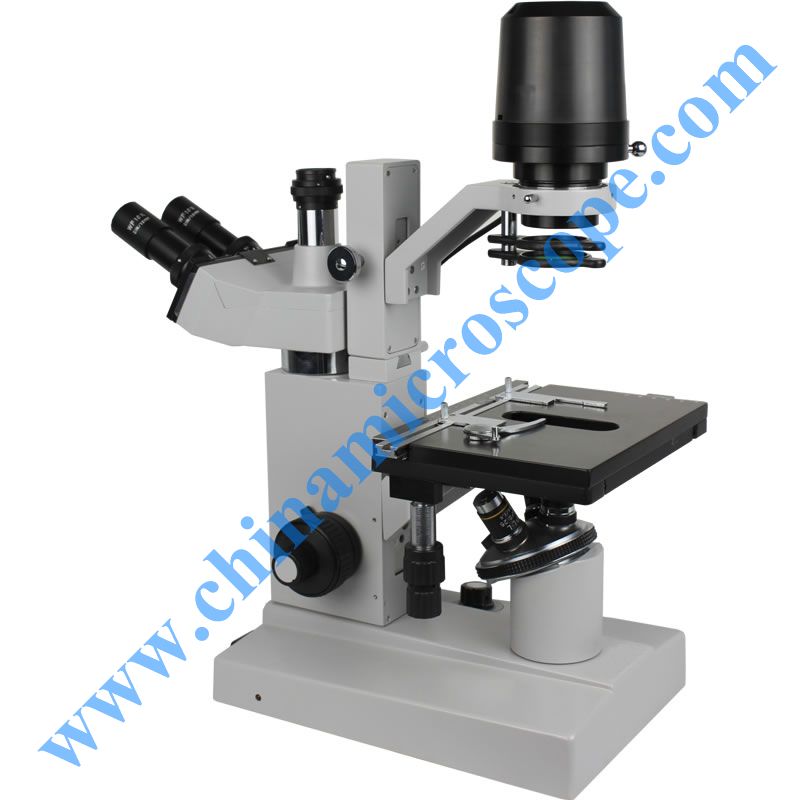

Specification
Total Magnification: 50×～800×
Accessory Objective Magnification: 1.25×
Plan Eyepiece: WF10× (ø18mm) 、WF16×(ø11mm)
Coaxial Coarse/Fine Focusing Adjustment Focusing Range: 30mm, Division of Fine Focus Adjustment: 0.002mm
Illumination Elevating Range: 20mm
Interpupillary Adjustment Distance: 55mm～75mm
Mechanical Stage Size: 190mmX145mm, Moving Range: 75mmX50mm, Venire Division: 0.1mm
Artificial Illumination: 110V、220V/12V 50W (Halogen Bulb with Adjustable Brightness), Filter (yellow, green): ø43mm
The product is suitable to Micro-examine and research for inspector in Biology of culture ware (or culture bottle) tissue culture of medicine、cell culture、plankton、environment protection、foodstuff inspection and liquid sediment etc。
Plain-field Long Working Distance Objective:
| Magnification | Numerical
Aperture(N.A.) |
Working
Distance(mm) |
Thickness In The
Bottom Of Culture Ware(mm) |
| 4X | 0.1 | 17.4 | 1.5 |
| 10X | 0.25 | 8.0 | 1.5 |
| 25X | 0.4 | 5.0 | 1.5 |
| 40X | 0.6 | 3.0 | 1.5 |
| microscope function | finite, Inverted, Polarizing, PH |
|---|
