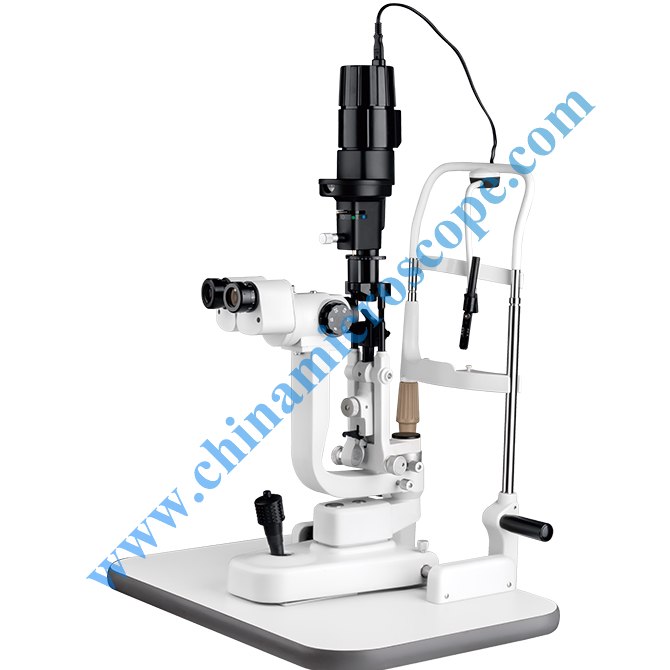

MIC-88 slit lamp microscope
Filter disk can rotate 360°, 4 more option filters can be chosen, five step drum magnification for eyepiece. Sclera vein could be observed under the 40X magnification.
All the optical lens is moisture proof, mildew proof and anti-reflected treated.
Large spot diameter, slit length reach to 14mm, more comprehensive view of the eye condition.
Multi-coated optical technology, image is clear and bright, the view field is wide.
Osram light bulbs, user-friendly and the convenience of patients.
Oversized joystick space, mobile base does not touch the hand.
All the joints can be connected by accessories with international standards.
| Microscope | Microscope type | Galilean stereoscopic microscope |
| Magnification selection | 5 steps by drum rotation | |
| Eyepiece | 12.5x | |
| Magnification and field of view | 6×（φ33mm）、10×（φ22.5）、16×（φ14mm）、
25×（φ8.8mm）、40×（φ5.5mm） |
|
| Interpupillary adjustment | 50mm ~ 82mm | |
| Diopter adjustment | +7D ~ -7D | |
| Base | Side shift | 110mm |
| Depth shift | 90mm | |
| Up-down shift | 30mm | |
| Chin rest | Up-down | 80mm |
| Fixation target | Red LED | |
| Illumination system | Slit height | 0 ~ 14mm continuous |
| Slit width | 0 ~ 14mm continuous
( when 14mm, slit becomes a circle) |
|
| Slit angle | 0︒ ~ 180︒ adjustable,
continuous adjustment from vertical to horizontal direction |
|
| Slit inclination | 5︒、10︒、15︒、20︒ | |
| Diameter of light spot | Ф14mm 、Ф10mm、 Ф5mm 、 Ф3mm 、Ф2mm 、
Ф1mm 、Ф0.2mm 、Ф1mm和Ф1-14mm continuous |
|
| Filter | Heat absorption, Grey, Red free, Cobalt blue, Green,
Yellow, Red, Anti-UV |
|
| Bulb | 12V 50W halogen lamp | |
| Power | Input voltage | 110V/220V AC |
| Frequency | 50H/60Hz | |
| Power consumption | 68VA | |
| Weight and size | Gross weight | 18kg |
| Net weight | 16kg | |
| Package dimension | 690mm（L）× 440mm（W）× 420mm（H） |
