Product Parameter
Model | MIC-CD3 |
Function | Ophthalmic |
Magnification | motorized zoom system, 1:6 zoom ratio, magnification 4.5x~27x |
Focusing range | 50mm |
Binocular tube | 30°~90° tiltable tube (0°~200° optional) |
Eyepiece | 12.5x / 10x |
Objective lens | F 200mm(175mm, 250mm, 300mm optional) |
Pupil distance | 55mm~75mm |
Diopter adjustment | +6D ~ -6D |
Field of view | Φ44~Φ7.7mm |
X-Y translator | Motorized by foot switch, ±30mm |
Deep View | depth of field increasing system |
Assistant tube | Integrated with independent steps changer and same depth of view as main tube |
Reset functions | YES |
Illumination | |
System | Coaxial illumination |
Light source | Halogen lamp |
Light intensity adjustment | Continuous brightness adjustment 0-100000lux |
Retinal protection device | Built-in |
Fiber optic illumination | Dual fiber |
Field of illumination | Φ50mm |
Red reflex | Adjustable |
Arm & Base | |

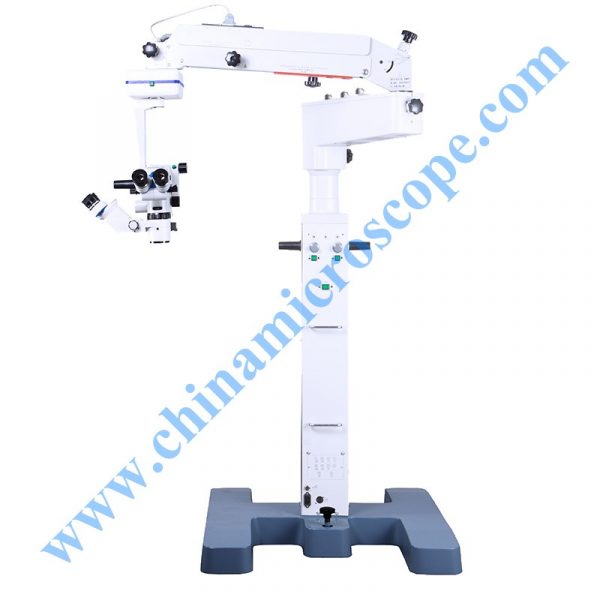

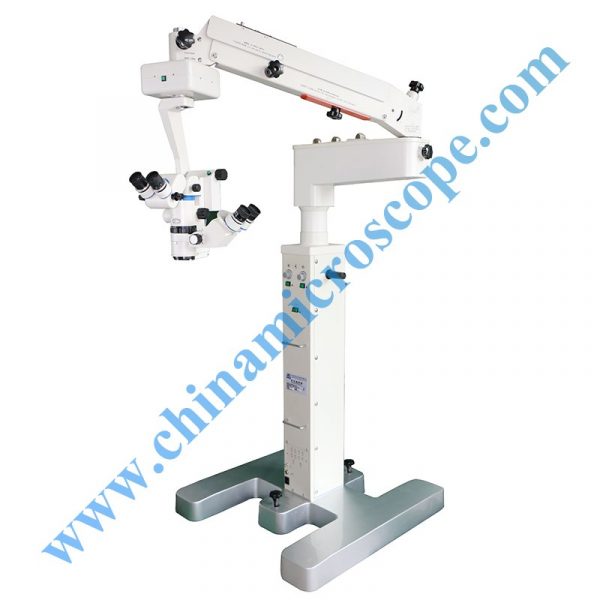

Mount | Floor stand |
Maximum arm extension |
1200mm |
Height from objective to floor | 800mm |
Base size | 800*800mm |
Brake system | Four-wheel brake |

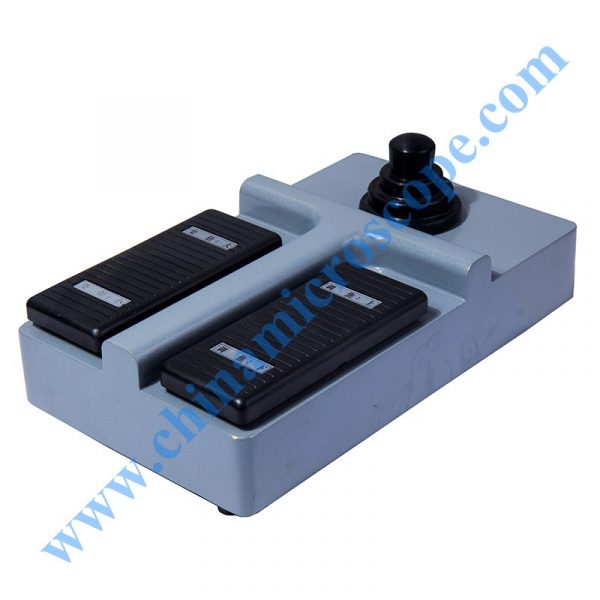

Foot switch | Waterproof, 8 function steps |
Others | |
Weight | 169KG |
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ |
Power consumption | 300W |
Safety class | class I |
Accessories | |

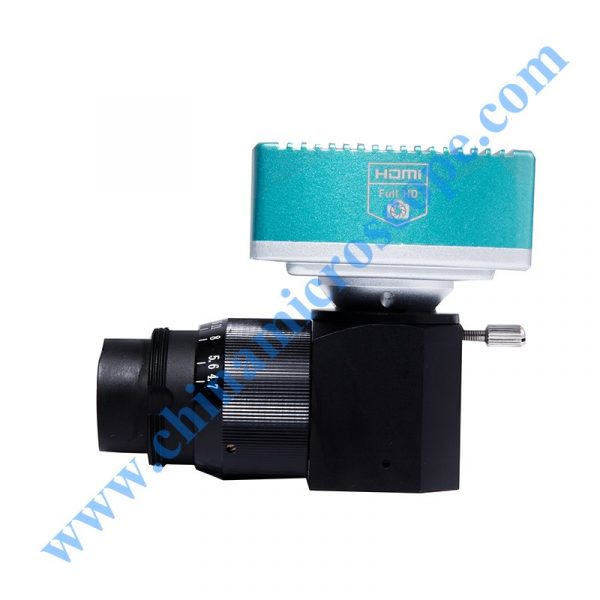

CCD Camera system | Beam splitter, CCD adapter, CCD, Display |
BIOM system | Invertor, Holder, 90D lens, 130D lens |
Integrated Video Adapter | SONY / CANON Camera |
Ambient conditions | |
Use | +10°C to +40°C |
+50°F to +104°F | |
30% to 75% relative humidity | |
500 mbar to 1060 mbar atmospheric pressure | |
Storage | –30°C to +70°C |
–22°F to +158°F | |
10% to 100% relative humidity | |
500 mbar to 1060 mbar atmospheric pressure | |
Limitations on use | |
The MIC TECH MIC-CD3 surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill LEICA Micro-systems’ specifications (see installation manual) |
