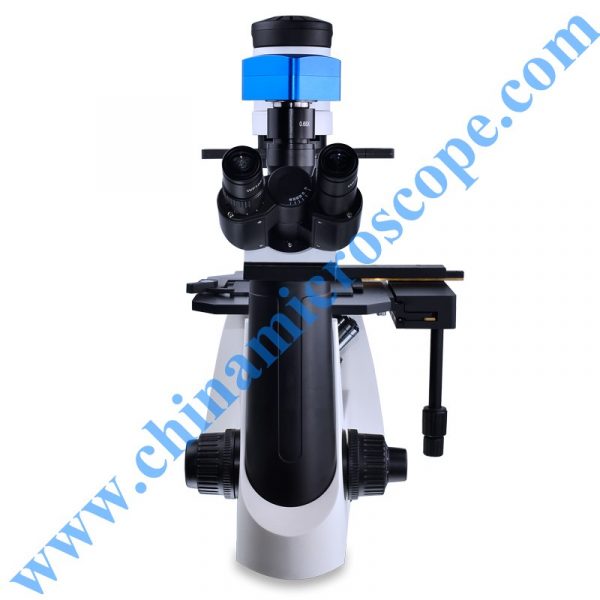

P-I2 Inverted Biological Microscope
P-I2 Inverted Biological Microscope
Back to products
Next product
XDS-2 Inverted Biological Microscope
XDS-2 Inverted Biological Microscope

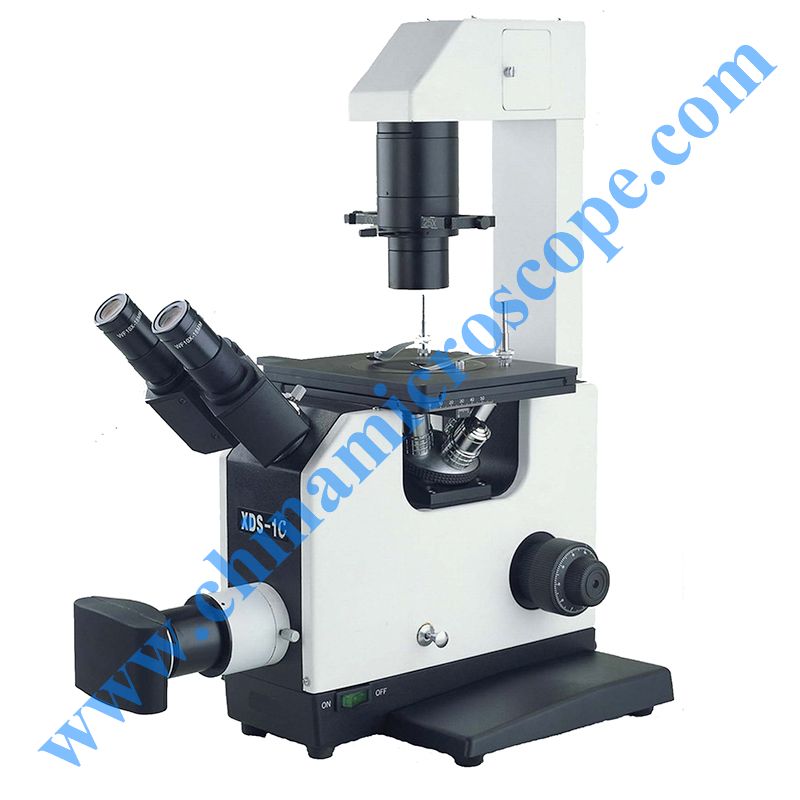

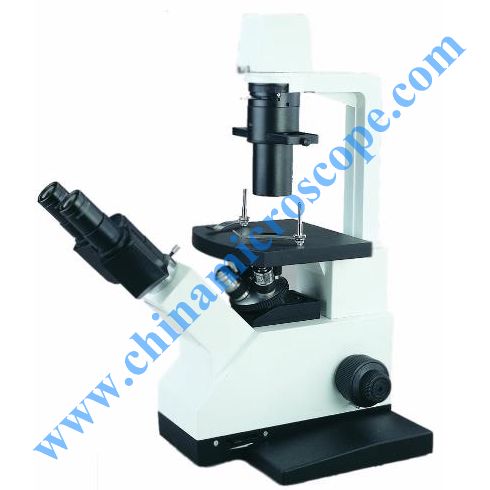

XDS-1C Inverted Biological Microscope

Inverted Biological Microscope

Long Working Distance

Finite/Infinite

Clinical/Laboratory

ENQUIRY!
分类： , , , 标签： ,
描述
Order No. Items XDS-1C
EW10 Eyepiece WF10×/ø20 ●●
EW16 Eyepiece WF16×/ø14 ●●
EPr10b Plan10×/ø18 reticle Eyepiece ●
B-OLPr10 LWD Plan Achromatic Objective 10/0.25,160/1.5,W.D.=9.36mm ●
B-OLPr25 LWD Plan Achromatic Objective 25/0.40,160/1.5,W.D.=6.50mm ●
B-OLPr40 LWD Plan Achromatic Objective 40/0.65,160/1.5,W.D.=4.50mm ●
B-OLPpr10 LWD Plan Positive Phase Contrast Objective 10/0.25,160/1.5,W.D.=9.36mm ○
B-OLPpr25 LWD Plan Positive Phase Contrast Objective 10/0.40,160/1.5,W.D.=6.50mm ●
B-OLPpr40 LWD Plan Positive Phase Contrast Objective 40/0.65,160/1.5,W.D.=4.50mm ○
B-OLPnr10 LWD Plan Negative Phase Contrast Objective 10/0.25,160/1.5,W.D.=9.36mm ○
B-OLPnr25 LWD Plan Negative Phase Contrast Objective 10/0.40,160/1.5,W.D.=6.50mm ○
B-OLPnr40 LWD Plan Negative Phase Contrast Objective 40/0.65,160/1.5,W.D.=4.50mm ○
TBR03 Seidentopf Binocular Head (inclined 45°) Interpulary distance: 55～75mm ●
S09A Mechanical Stage Size: 180×155mm; Moving range:75×50mm ●
33X-4 Set for Stage Insert Plate ●
33X-5 Stage Insert plate (Ⅴ) ●
9J-8 Stage Insert plate (Ⅲ) ○
9J-9 Stage Insert plate (Ⅳ) ●
RP09 Annular Spot 10× ○
RP10 Annular Spot 25× ●
RP11 Annular Spot 40× ○
9J.7 Photo Adaptor With Photo Eyepiece S5× ○
CL02 Stage Clips ●●
EPHp5 5× video eyepiece ○
EPHp6.3 6.3×video eyepiece ○
9J.7B Photograpy Device ○
9J.15+Cu43-1+ Photograpy adaptor Photograpy Device ○
33X.3c Fixed Illumination system ●
CU02-4～7 Blue, Green Yellow, Gray filterΦ32 ●
 / Micrometer (division 0.01mm) ○
其他信息
microscope function

Infinite, finite, Inverted, Polarizing, PH
用户评价 (0)

评价

目前还没有评价

成为第一个“XDS-1C Inverted Biological Microscope” 的评价者

您的邮箱地址不会被公开。 必填项已用 * 标注

Shipping & Delivery

EX-WORK price

ALL PRICE MIC TECH QUOTED IS EX-WORK PRICE.

OTHER PRICE INCLUDING SHIPPING WILL BE QUOTED UPON REQUEST.

FAS CPT CIP FCA FOB CFR CIF DPT DIP DDP

  • ALL TERMS OF SHIPPING IS NEGOTIABLE WITH MIC TECH
  • ALL SHIPPING METHODS IS JUST ON YOUR REQUEST
  • YOUR SATISFACTION IS OUR GOAL

相关产品

Close

XSL-13 series biological microscopes

XSL-13 series biological microscopes are equipped with plan achromatic objectives and wide field eyepieces. They have clear image, wide field, beautiful sculpt, convenient operation etc. They can be used for medicine and assay area widely. They are the ideal instruments in medical treatment, teaching demonstration and scientific research.
阅读更多
ENQUIRY!
Quick view
Close

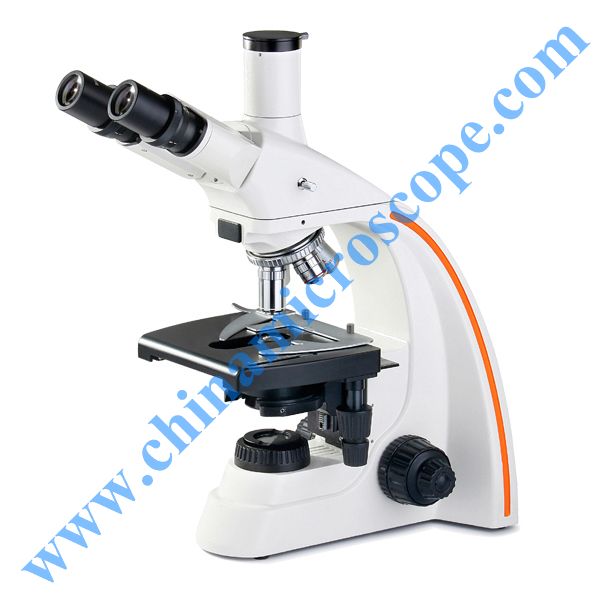

XSL-28 series biological microscopes

XSL-28 series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt and provide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.
阅读更多
ENQUIRY!
Quick view
Close

MIC-RX60 laser confocal microscope

MIC-RX60 laboratory inverted biological microscope Front function screen With 7 inches capacitive touch screen technology, strengthen LED backlight guidance, item&parts&viewing model displaying which makes straight view on current working status. One button for multiple operation, parts memory function, elevating your working efficiency with quick switch in different working model. with integrated electric control realize the auto&manual integration. Multiple module combination In live cell research, customers can choose single layer light or double layers light, offer maximum extensibility for different users. Auto or manual stage are available. LWD semi-apo plan objective with calibration ring
阅读更多
ENQUIRY!
Quick view
Close

A-2I biological microscope

Specification:
  1. UCIS Infinity Independent Achromatic Optical System
  2. WF10x20 Plan Eyepieces
  3. 52-75mm 48-75mm Interpupillary Distance Settings, ±5 Diopter Adjustment
  4. Quadruple Nosepiece Inward Facing with Positive Click Stops
  5. Infinity Plan Achromatic 4x, 10x, 40x(S) and 100x (S/Oil) Objectives
  6. Right Hand Controls, Low Position, Mechanical Stage, 142mm x 135mm, Movement Range 76mm x 52mm
  7. Coaxial Coarse and Fine Focus Mechanism with Markings on Knobs. Fine Focus Sensitivity 0.001mm
  8. 6v 20w Halogen or 3W LED Illumination, 110-240V Wide Voltage
  9. Dust Cover, Clear Blue Filter, Power Cord, Immersion Oil
Optional Accessory: Phase-Contrast: Centering Telescope; Phase-contrast Objectives(Positive & Negative); Phase-Contrast Slide/ Phase Contrast Condenser Dark Field: Dark-field Condenser(Oil/Dry); Dark-field Slide, Dark Field Condenser Simplified Polarization: Analyzer Slide; Polarizer Slide Packing: Foam + Carton (490*490*320mm) Gross Weight: 12.5kg
阅读更多
ENQUIRY!
Quick view
Close

A-F1 fluorsecent microscope

MIC TECH A-F1 serials biological fluorsecent microscope Infinite  Clinical microscope USED FOR LABORATORY AND STUDENT'S USE FOR DAILY BIOLOGICAL INSPECTION LED or 100W mecury lamp LED fluorsecence power supply
阅读更多
ENQUIRY!
Quick view
Close

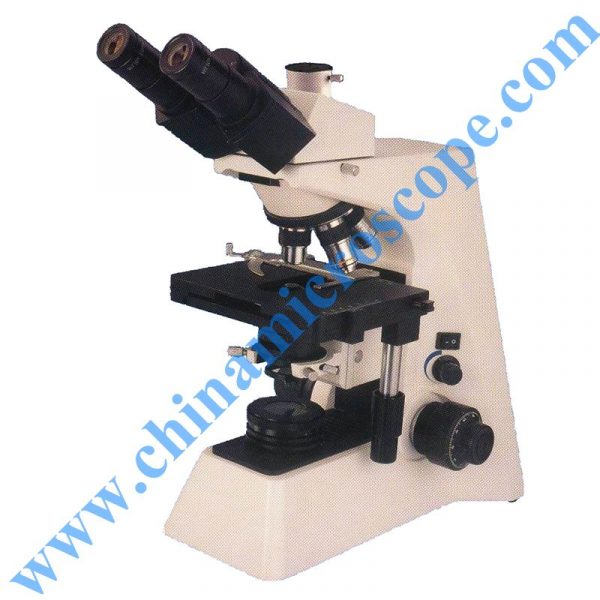

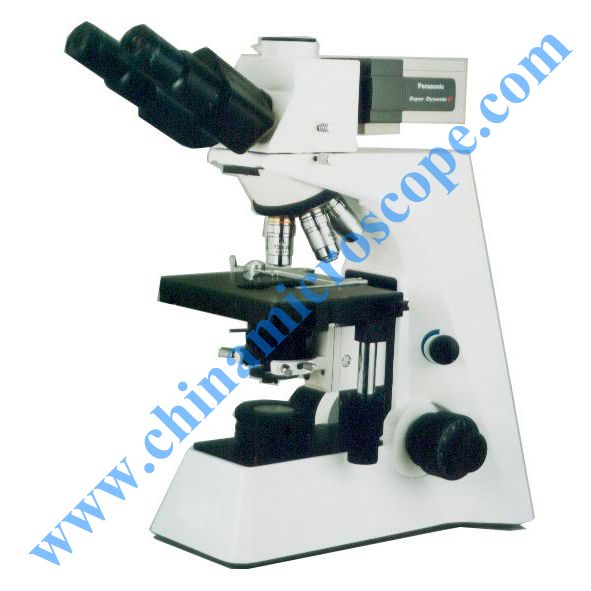

BA2000 serials microscope

BA2000 serials microscope Finite optical system
阅读更多
ENQUIRY!
Quick view
Close

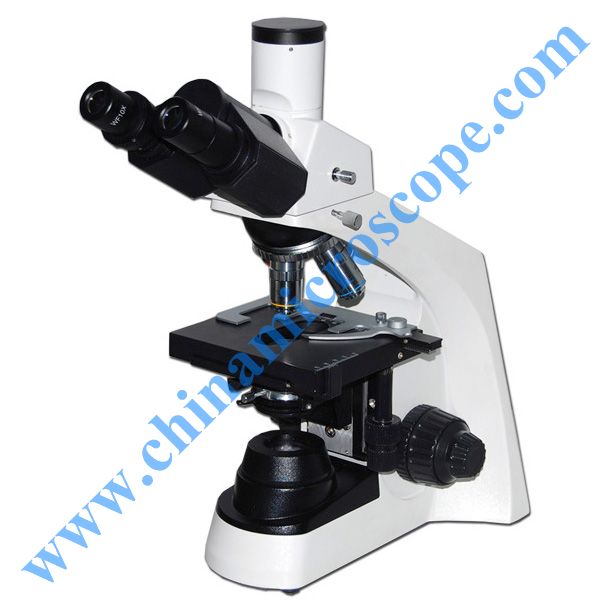

XSL-26 biological microscope
