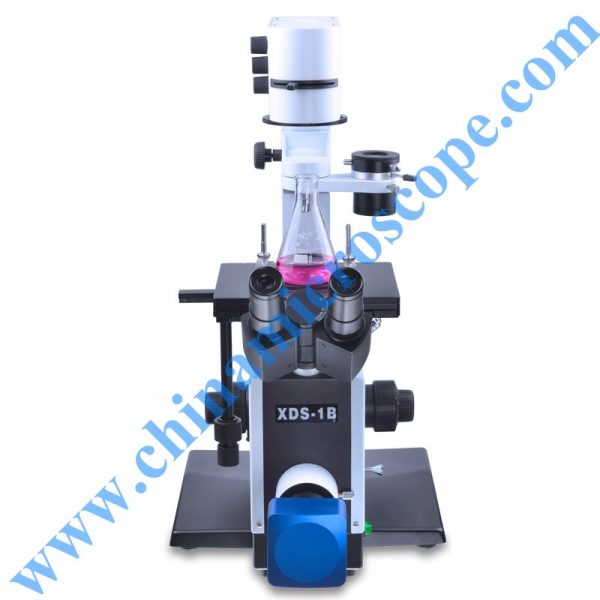

Standard Specification of XDS-1B Inverted Biological Microscope
| Order No. | Items | XDS-1B |
| / | Main Body (including left & right supporting arm plate,
4 piece of Allen screws & a wrench) |
● |
| EW10 | Eyepiece WF10×/ø20 | ●● |
| EW16 | Eyepiece WF16×/ø14 | ●● |
| EC11 | Centering Eyepiece DZ11× | ● |
| EPr10b | Plan Article Eyepiece PF10× | ● |
| B-OLPr10 | LWD Plan Achromatic Objective 10/0.25,160/1.5,W.D.=7.9mm | ● |
| B-OLPr25 | LWD Plan Achromatic Objective 25/0.40,160/1.5,W.D.=5mm | ● |
| B-OLPr40 | LWD Plan Achromatic Objective 40/0.60,160/1.5,W.D.=3mm | ● |
| B-OLPnr10 | LWD Plan Positive Phase Objective 10/0.25,160/1.5,W.D.=7.9mm | ○ |
| B-OLPnr25 | LWD Plan Positive Phase Objective 10/0.40,160/1.5,W.D.=5mm | ● |
| B-OLPnr40 | LWD Plan Positive Phase Objective 40/0.60,160/1.5,W.D.=3mm | ○ |
| / | 35mm DF Camera With Shutter Control Line | ○ |
| 33X-4 | Set for Stage Insert Plate | ● |
| 9J-8 | Stage Insert plate (Ⅲ) | ● |
| 9J-9 | Stage Insert plate (Ⅳ) | ● |
| 33X-5 | Stage Insert plate (Ⅴ) | ● |
| CL02 | Stage Clips | ●● |
| 7X.5.1 | Cultural Flask (bottom thickness 1.5mm) | ●● |
| 7X.5.2 | Cultural Vessel (bottom thickness 1.5mm) | ●● |
| RP06 | Annular Spot 10× | ○ |
| 12X.2.3-19,20 | Annular Spot 25× | ● |
| RP07 | Annular Spot 40× | ○ |
| / | Halogen Tungsten Lamp 6V20W (G4) | ●●● |
| 9J.7 | Photo Adaptor With Photo Eyepiece S5× | ● |
| 33X.3.2.1 | Movable Condenser Insert Plate | ● |
| TBR03 | Seidentopf Binocular Head (inclined 45°) | ● |
| / | Micrometer (division 0.01mm) | ○ |
| EPHp6.3 | Photo Eyepiece S6.3× | ○ |
| 9J.15 | Photo Eyepiece S0.65×For CCD | ○ |
| CU43-3 | C-mount | ○ |
| / | CCD TV & Record Attachment | ○ |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
