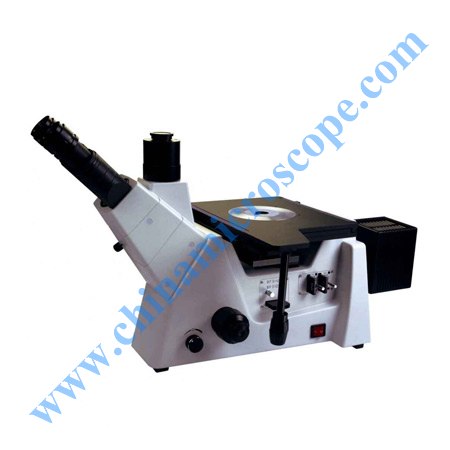

Factories Academy Scientific Research Microscope Inverted
Field of use:
This type microscope is widely used in observation and analysis of metallurgical organization in mechanical industry, research of geological and mineral department and viewing , measuring crystal, integrate circuit, micro-electronics, ect
Technical Performance:
Specification | XJP-407H | XJP-403F | XJP-403FT | XJP-403H | XJP-403HT | |
Viewing head | compensation free Binocular head 30 °(50mm-75mm) | √ | √ | |||
Viewing head | compensation free trinocular head 30 °(50mm-75mm) | √ | √ | √ | ||
Eyepiece | 1.extra wide field plan eyepieces WF10x/20mm 2.WF10X/20mm, crosshair with reticule 0.1mm |
√ | √ | √ | √ | √ |
Objective | plan LWD metallurgical objective: 5X0.10(W.D.=25.5mm) 10X0.25.(W.D.=6.54mm) 20X0.40(W.D.=9.17mm) 40X0.60(W.D.=3.64mm) |
√ | √ | √ | ||
infinity plan LWD metallurgical objective: 5X0.10(W.D.=29.4mm) 10X0.25.(W.D.=16mm) 20X0.40(W.D.=10.6mm) 50X0.60(W.D.=5.4mm) |
√ | √ | ||||
Nosepiece | quadruple nosepiece | √ | √ | √ | √ | √ |
Stage
|
double layer mechanical stage stage size:180X168mm moving range:75X40mm |
√ | √ | √ | √ | √ |
double layer mechanical stage stage size:230X180mm moving range:75X50mm |
√ | |||||
Focusing | coaxial coarse and fine focusing adjustment,fine focusing scale value 0.002mm | √ | √ | √ | √ | |
Light source | epi-illumination:kohler illuminatin, with aperture iris diaphragm and field iris diaphram halogen bulb 12V/20W,AC85V-230V,brightness adjustable |
√ | √ | √ | √ | √ |
epi-illumination:kohler illuminatin, with aperture iris diaphragm and field iris diaphram halogen bulb 12V/30W,AC85V-230V,brightness adjustable |
√ | √ | √ | √ | √ | |
Polarizing device | analyzer 360° rotatable, both polarizer and analyzer can be moved out of the light path | √ | √ | √ | √ | √ |
Filter | green, blue, neutral | √ | ||||
Checking tool | o.o1mm micrometer | √ | √ | √ | √ | |
Optional accessory | 1,eyepiece:WF15/17MM,WF 20/12.5MM 2,photography attachment and ccd adapter:0.35X, 0.5X, 0.63X, 0.75X, 1X 3,two-dimensional measure software 4,metallurgical image analysis sofaware 5,micrometer eyepiece 6,various industrial camera 7,2X photography eyepiece, various SLR camera adapter |
√ | √ | √ | √ | √ |
