Standard Configuration
| Model | XSL-13 |
| Eyepiece | Wide field WF10X(18mm) |
| Objective | Achromatic 4X/0.10 |
| Achromatic 10X/0.25 | |
| Achromatic 40X/0.65(Spring) | |
| Achromatic 100X/1.25(Spring, oil) | |
| Eyepiece tube | Binocular(Inclination of 30˚) |
| Focus system
|
Coaxial coarse/fine focus, with tensional adjustable
and up stop minimum division of fine focusing: 2μm. |
| Nosepiece | Quadruple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm) |
| Abbe condenser | N.A.1.25Rack & pinion adjustable |
| Filter | Blue filter |
| Frosted filter | |
| Collector | For halogen lamp |
| Light source | 6V 20W Halogen lamp with brightness control |

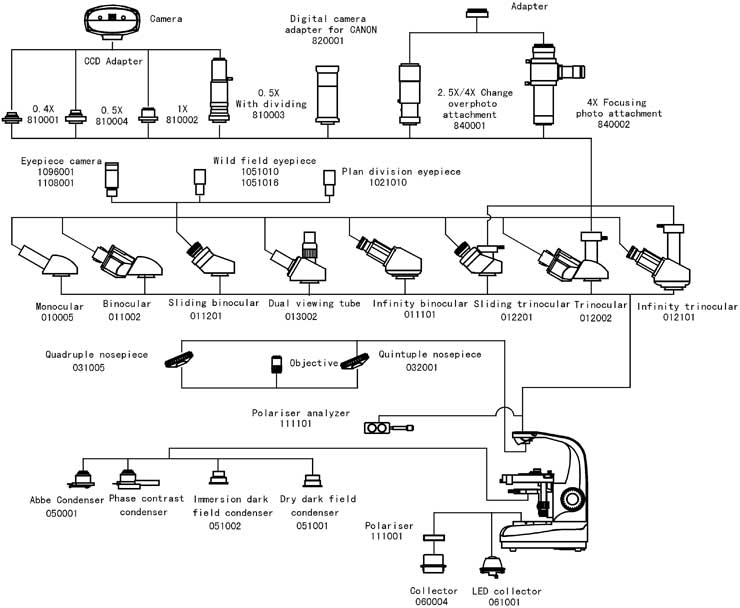

Optional accessories
| Name | Sort/Technique parameter | |
| Eyepiece | Wide field WF16X(11mm) | |
| Dividing 10X(18mm) 0.1mm/Div | ||
| Objective | Plan achromatic 4X/0.10 | |
| Plan achromatic 5X/0.12 | ||
| Plan achromatic 10X/0.25 | ||
| Plan achromatic 20X/0.40 | ||
| Plan achromatic 40X/0.65(Spring) | ||
| Plan achromatic 60X/0.85(Spring) | ||
| Plan achromatic 100X/1.25(Spring, oil) | ||
| Eyepiece tube | Monocular(Inclination of 30˚) | |
| Binocular, Sliding(Inclination of 45˚) | ||
| Trinocular, Sliding(Inclination of 45˚) | ||
| Trinocular(Inclination of 30˚) | ||
| Dual viewing tube (Inclination of 30˚) | ||
| Nosepiece | Quintuple (Backward ball bearing inner locating) | |
| Filter | Green filter | |
| Yellow filter | ||
| Light source | LED Collector | Bright and white light |
| Condenser | Dark field | Dry |
| Immersion | ||
| Phase
contrast unit |
Eyepiece | Centering telescope |
| Objectives | Phase contrast plan achromatic 10X/0.25 PHP | |
| Phase contrast plan achromatic 20X/0.40 PHP | ||
| Phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
| Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
| (PHP) Turnplate phase contrast condenser | ||
| (PHP) Turnplate phase contrast condenser | ||
| Flashboard phase contrast condenser | ||
| Pull board phase contrast condenser | ||
| Infinity
optical system |
Eyepiece tube | Binocular (Inclination of 30˚) |
| Trinocular (Inclination of 30˚) | ||
| Eyepiece | Centering telescope | |
| Objectives | Infinity plan achromatic 4X/0.10 | |
| Infinity plan achromatic 10X/0.25 | ||
| Infinity plan achromatic 20X/0.40 | ||
| Infinity plan achromatic 40X/0.65(Spring) | ||
| Infinity plan achromatic 100X/1.25(Spring, oil) | ||
| Infinity phase contrast plan achromatic 10X/0.25 PHP | ||
| Infinity phase contrast plan achromatic 20X/0.40 PHP | ||
| Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
| Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil) | ||
| CCD adapter | 0.4X | |
| 0.5X | ||
| 1X | ||
| 0.5X with dividing 0.1mm/Div | ||
| Camera | DV-1(With USB & video output) | |
| DV-2(With USB output) | ||
| DV-3(With video output) | ||
| Photography | USB Output | |
| VIDEO Output | ||
| Digital camera adapter
CANON Digital camera adapter(A610,A620,A630,A640) |
||
| Photograph unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | |
| 4X Focusing photograph attachment | ||
| MD Adapter | ||
| PK Adapter | ||
| Facility polarize | Polarizer(360° rotatable stage) | |
| Analyzer | ||
| Adapter(For LED illumination) | Input: 230V50/60HZ Output: 9V 500mA | |
| Input: 110V50/60HZ Output: 9V 500mA | ||
